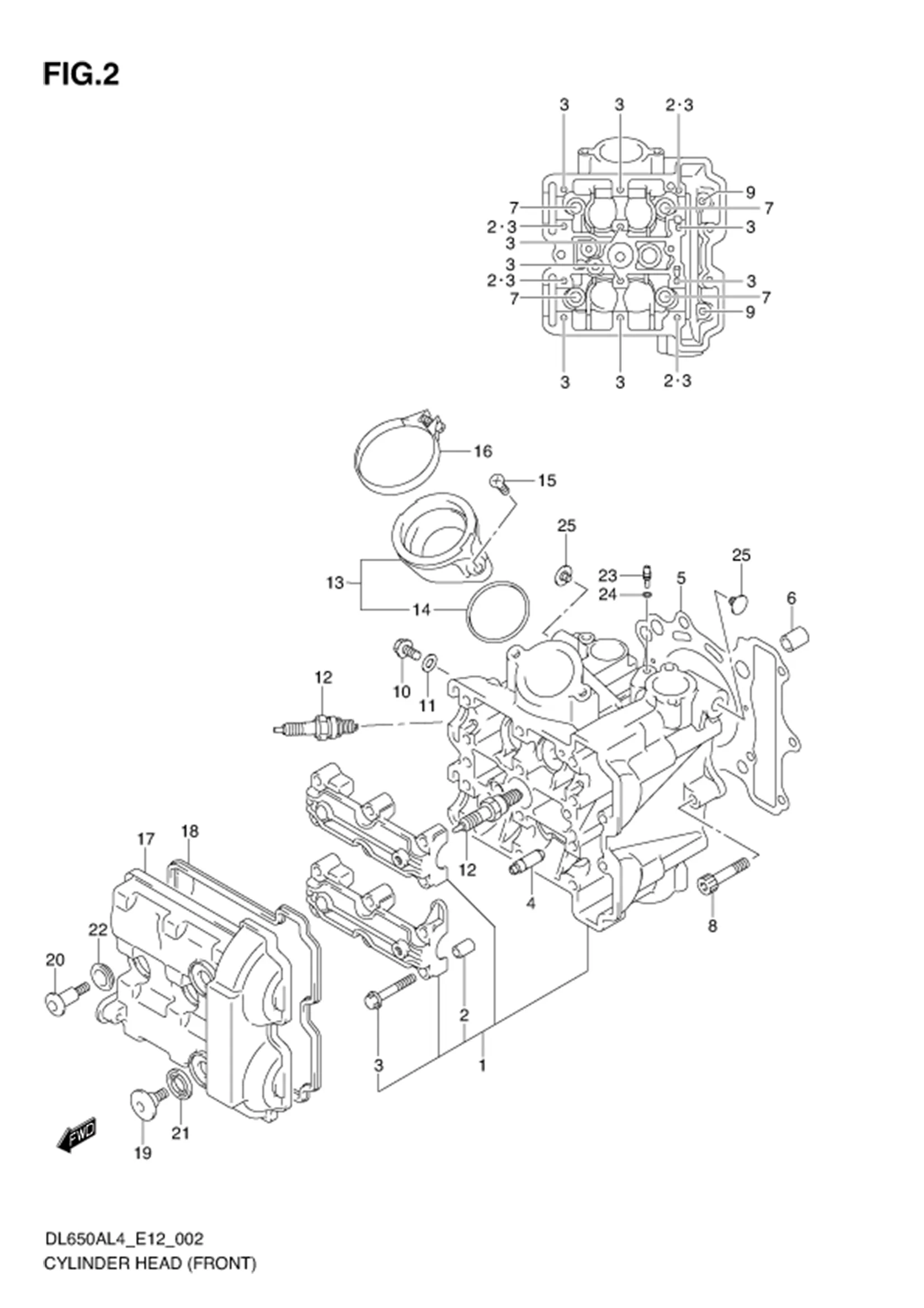

FIG.2 CYLINDER HEAD (FRONT)

FIG.2 CYLINDER HEAD (FRONT)
No No. Part Description Qty Price Per Pcs Remarks
1 11101-44H00-000 HEAD ASSY, CYLINDER FRONT 1 Rp6.972.500
2 09206-08001-000 ?PIN (8X11) 4 Rp5.500
3 09103-06266-000 ?BOLT (6X40) 12 Rp14.000
4 11115-18D72-000 GUIDE, VALVE (OS:0.3) 4 Rp220.000 OPT
5 11141-20F00-000 GASKET, CYLINDER HEAD 1 Rp284.000
6 04211M13189-000
SUB: 04211-13189-000		 PIN 2 Rp9.000
7 11117-44H00-000 BOLT (10X160) 4 Rp110.500
8 07120-0640A-000 BOLT 1 Rp22.000
9 DISCONTINUE
SUB: 09103-06103-000		 BOLT (6X70) 2 -
10 09103-06222-000 BOLT (6X12) 1 Rp17.500
11 09168-06023-000 GASKET (5.8X13X1.2) 1 Rp13.500
12-4 09482-00557-000 SPARK PLUG (IU27D) 2 Rp207.500 OPT DENSO
12-5 09482-00554-000 SPARK PLUG (CR7EIA-9) 2 Rp186.000 OPT NGK
12-3 09482-00558-000 SPARK PLUG (CR9EIA-9) 2 Rp183.500 OPT NGK
12-2 DISCONTINUE
SUB: 09482-00555-000		 SPARK PLUG (IU24D) 2 - DENSO
12-1 DISCONTINUE
SUB: 09482-00556-000		 SPARK PLUG (CR8EIA-9) 2 - NGK
13 13101-17G10-000 PIPE ASSY, INTAKE FRONT 1 Rp347.500
14 09280-46006-000 ?O RING (D:2.4,ID:47X42) 1 Rp54.000
15 02122-0616A-000
SUB: 02122-0616B-000		 SCREW 2 Rp3.500
16 13827-40H01-000 CLAMP 1 Rp95.500
17 11171-19F20-000 COVER, CYLINDER HEAD FRONT 1 Rp1.060.000
18 11173-19F01-000 GASKET, CYLINDER HEAD COVER 1 Rp222.000
19 09106-07009-000 BOLT (7X17.5) 2 Rp24.500
20 09106-07010-000 BOLT (7X31) 1 Rp26.000
21 11191-27E00-000 WASHER 2 Rp30.500
22 11192-13E00-000 CUSHION, HEAD COVER BOLT 1 Rp31.500
23 09493-80005-000 JET(8) 1 Rp90.500
24 09280-04004-000 O RING (D:1.2,ID:4) 1 Rp3.500
25 11151-27G00-000 CAP 2 Rp26.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
