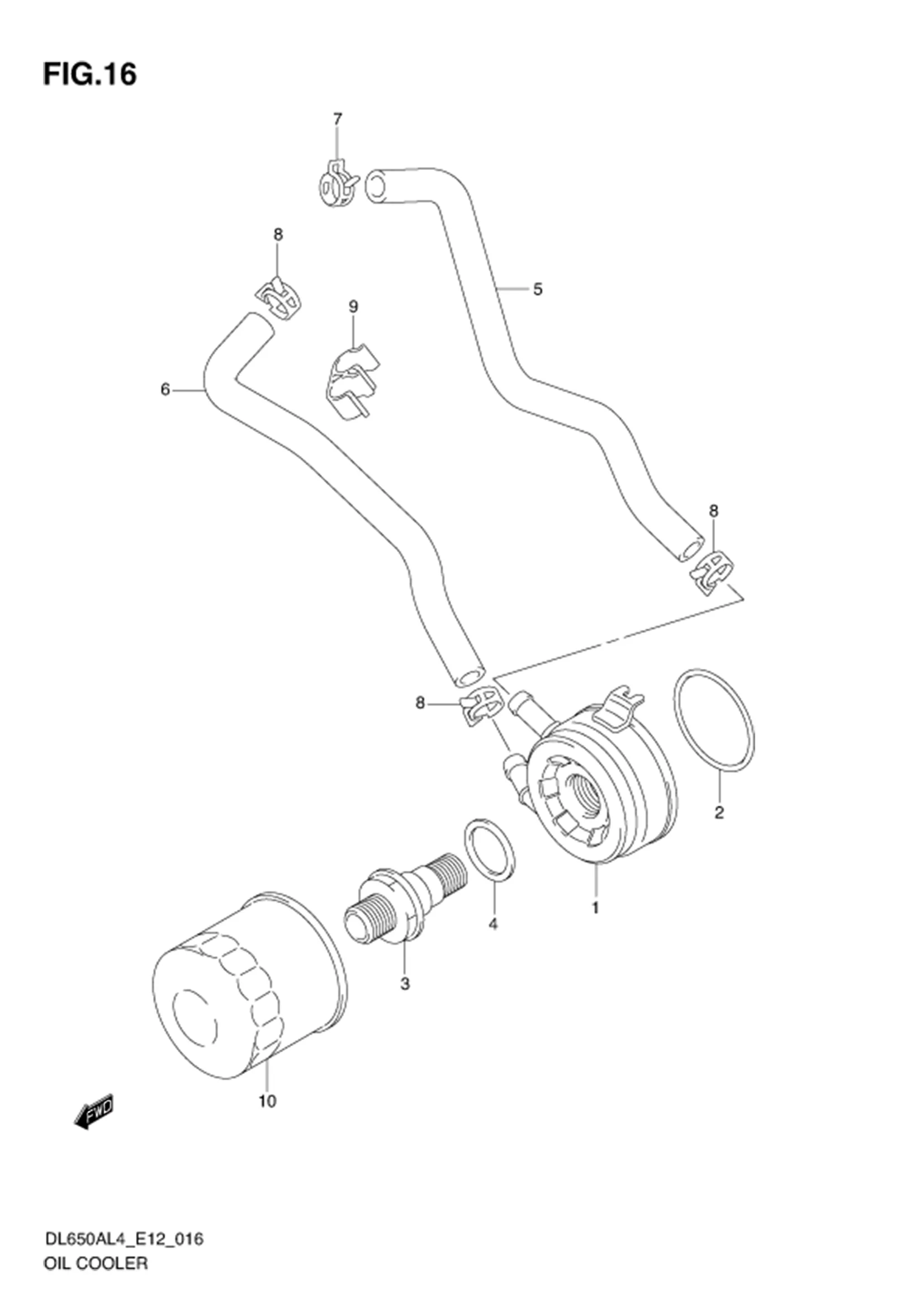

FIG.16 OIL COOLER

FIG.16 OIL COOLER
No No. Part Description Qty Price Per Pcs Remarks
1 16600-44H00-000 COOLER ASSY, OIL 1 Rp4.110.000
2 DISCONTINUE
SUB: 09280-55002-000		 O RING (D:3.1,ID:54.5) 1 -
3 16591-02F00-000 BOLT, UNION 1 Rp288.000
4 09181-25160-000 SHIM (25X34X0.7) 1 Rp20.500
5 16461-44H00-000 HOSE, INLET 1 Rp156.000
6 16471-44H00-000 HOSE, OUTLET 1 Rp156.000
7 09401M16L01-000
SUB: 09401-16407-000		 CLIP 1 Rp9.000
8 09401-16409-000 CLIP 3 Rp19.000
9 09408-00267-000 CLAMP 1 Rp19.000
10 16510-07J10-000
SUB: 16510-07J00-000		 FILTER ASSY, ENGINE OIL 1 Rp157.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
