V-Storm 650

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 GASKET SETFIG.2 CYLINDER HEAD (FRONT) FIG.3 CYLINDER HEAD (REAR) FIG.4 CYLINDER FIG.5 CRANKCASE FIG.6 CRANKCASE COVER FIG.7 CRANKSHAFT FIG.8 STARTER CLUTCH FIG.9 CAMSHAFT/VALVE FIG.10 CAM CHAIN FIG.11 THROTTLE BODY FIG.12 AIR CLEANER FIG.13 MUFFLER FIG.14 OIL PUMP FIG.15 FUEL PUMP FIG.16 OIL COOLER FIG.17 WATER PUMP FIG.18 RADIATOR FIG.19 RADIATOR HOSE FIG.20 CLUTCH FIG.21 TRANSMISSION FIG.22 GEAR SHIFTING

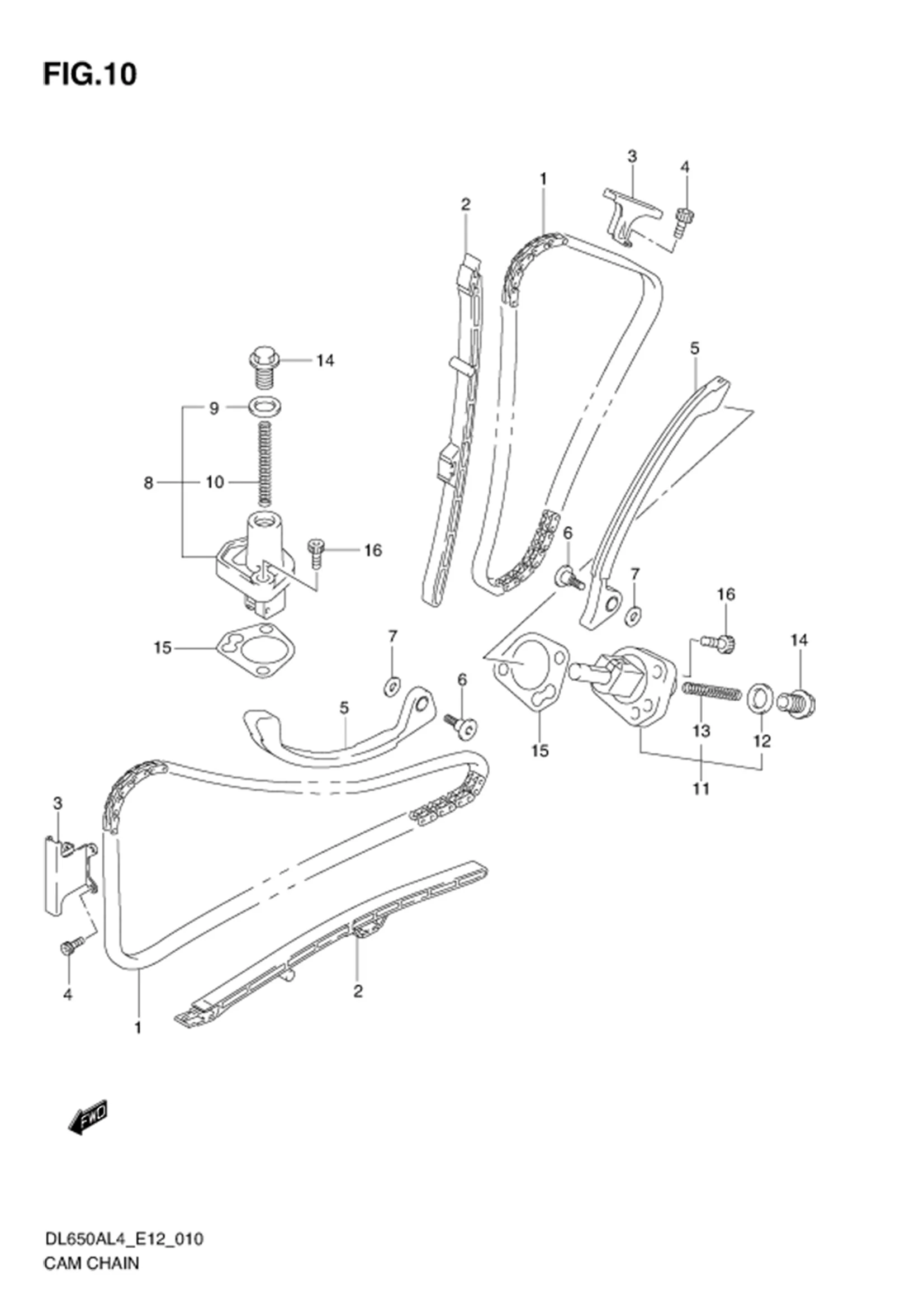

FIG.10 CAM CHAIN

FIG.10 CAM CHAIN
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 12760-19F01-000		 CHAIN, CAM SHAFT DRIVE 2 -
2 12771-44H00-000 GUIDE, CAM CHAIN NO.1 2 Rp204.000
3 12782-19F00-000 GUIDE, CAM CHAIN NO.2 2 Rp287.000
4 07130-0612A-000 BOLT 6 Rp3.500
5 12811-17G00-000 TENSIONER, CAM CHAIN 2 Rp461.000
6 12812-35C00-000 BOLT, CAM CHAIN TENSIONER 2 Rp4.000
7 08211-06181-000 WASHER 2 Rp9.500
8 12830-27G00-000 ADJUSTER ASSY, TENSIONER FRONT 1 Rp649.500
9 12837-24F10-000 ?GASKET, TENSIONER ADJUSTER 1 Rp33.500
10 12831-39F00-000 ?SPRING 1 Rp41.000
11 12830-27G10-000 ADJUSTER ASSY, TENSIONER REAR 1 Rp649.500
12 12837-24F10-000 ?GASKET, TENSIONER ADJUSTER 1 Rp33.500
13 12831-39F00-000 ?SPRING 1 Rp41.000
14 12833-17G00-000 PLUG, TENSIONER ADJUSTER 2 Rp45.000
15 12837-27G00-000 GASKET, TENSIONER ADJUSTER 2 Rp31.500
16 07130-0625A-000 BOLT 4 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
