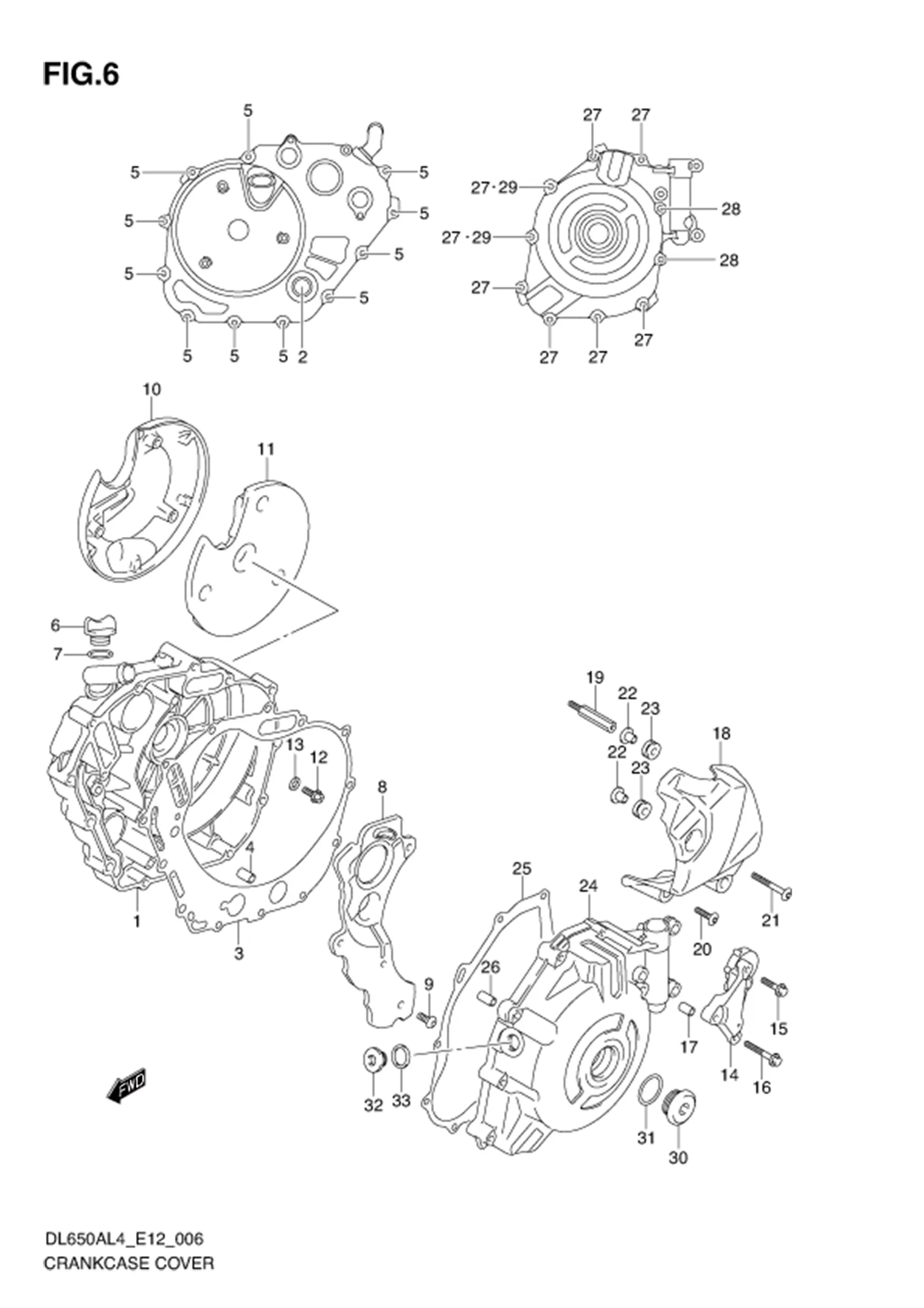

FIG.6 CRANKCASE COVER

FIG.6 CRANKCASE COVER
No No. Part Description Qty Price Per Pcs Remarks
1 11340-44H10-000 COVER, CLUTCH 1 Rp3.205.500
2 11971-33210-000 ?LENS, OIL LEVEL CHECK 1 Rp120.000
3 11482-44H00-000 GASKET, CLUTCH COVER 1 Rp118.000
4 04211-09149-000 PIN 2 Rp3.000
5 09103-06214-000 BOLT (6X35) 11 Rp19.000
6 11971-25D00-000 PLUG, OIL FILLER 1 Rp36.500
7 09280-17003-000 O RING (D:3.1,ID:16.8) 1 Rp2.000
8 11343-44H00-000 SEPARATOR, OIL 1 Rp306.000
9 DISCONTINUE
SUB: 09106-06098-000		 BOLT (6X12) 4 -
10 11342-11J00-000 COVER, CLUTCH OUTER 1 Rp870.000
11 11344-11J00-000 DAMPER 1 Rp261.500
12 09103-06174-000 BOLT (6X16) 3 Rp19.500
13 09168-06023-000 GASKET (5.8X13X1.2) 3 Rp13.500
14 11361-44H00-000 COVER, ENGINE SPROCKET INNER 1 Rp332.500
15 01547-0620B-000
SUB: 01547-0620A-000		 BOLT 1 Rp6.500
16 01547-0635A-000 BOLT 1 Rp6.500
17 04211-09129-000 PIN 2 Rp10.500
18 11371-11J00-000 COVER, ENGINE SPROCKET OUTER 1 Rp518.000
19 11372-22H00-000 BOLT 2 Rp92.500
20 DISCONTINUE
SUB: 09139-06028-000		 SCREW (6X20) 2 -
21 09139-06105-000 SCREW (6X40) 1 Rp55.500
22 09169-06062-000 WASHER 3 Rp16.500
23 09320-09016-000 CUSHION 3 Rp4.000
24 11351-44H00-000 COVER, MAGNETO 1 Rp2.726.000
25 11483-19F00-000 GASKET, MAGNETO COVER 1 Rp84.500
26 04211-09149-000 PIN 2 Rp3.000
27 09103-06214-000 BOLT (6X35) 8 Rp19.000
28 09103-06239-000 BOLT (6X65) 2 Rp21.000
29 09168-06023-000 GASKET (5.8X13X1.2) 2 Rp13.500
30 09259-26011-000 PLUG (26X9) 1 Rp55.500
31 09280-22008-000 O RING (D:3.1,ID:22.7) 1 Rp3.500
32 09248-16012-000 PLUG (16X8) 1 Rp31.500
33 09168-16002-000 GASKET (16X22X2) 1 Rp13.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
