V-Storm 650

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 GASKET SETFIG.2 CYLINDER HEAD (FRONT) FIG.3 CYLINDER HEAD (REAR) FIG.4 CYLINDER FIG.5 CRANKCASE FIG.6 CRANKCASE COVER FIG.7 CRANKSHAFT FIG.8 STARTER CLUTCH FIG.9 CAMSHAFT/VALVE FIG.10 CAM CHAIN FIG.11 THROTTLE BODY FIG.12 AIR CLEANER FIG.13 MUFFLER FIG.14 OIL PUMP FIG.15 FUEL PUMP FIG.16 OIL COOLER FIG.17 WATER PUMP FIG.18 RADIATOR FIG.19 RADIATOR HOSE FIG.20 CLUTCH FIG.21 TRANSMISSION FIG.22 GEAR SHIFTING

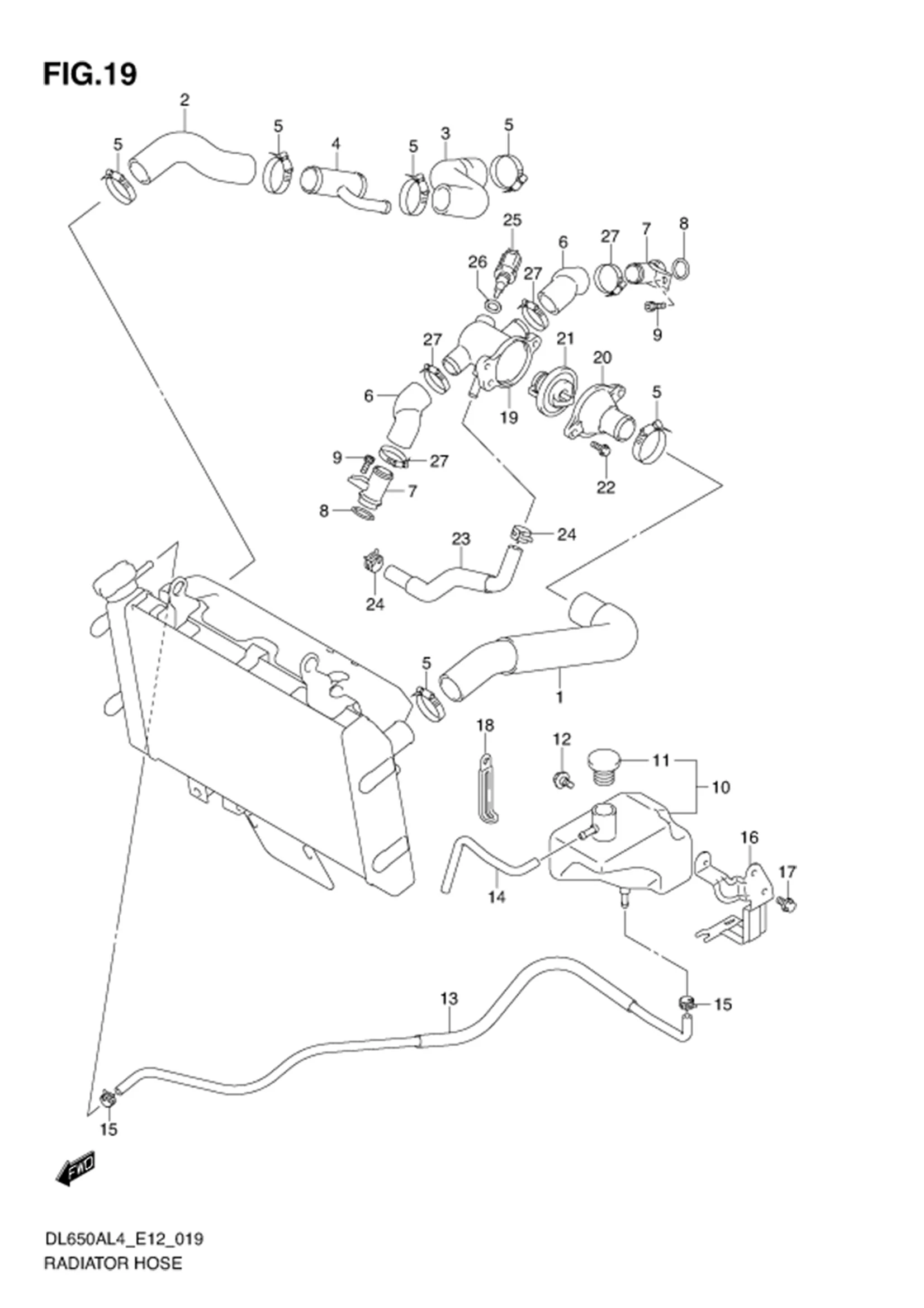

FIG.19 RADIATOR HOSE

FIG.19 RADIATOR HOSE
No No. Part Description Qty Price Per Pcs Remarks
1 17851-11J00-000 HOSE, RADIATOR INLET 1 Rp313.500
2 17852-44H20-000 HOSE, RADIATOR OUTLET NO.1 1 Rp124.000
3 17854-44H00-000 HOSE, RADIATOR OUTLET NO.2 1 Rp136.500
4 17880-44H00-000 UNION, 3WAY 1 Rp293.000
5 09402-35501-000 CLAMP 6 Rp45.000
6 17853-19F00-000 HOSE, CONNECTOR INLET 2 Rp95.000
7 17890-06G20-000 UNION, CONNECTOR HOSE 2 Rp97.500
8 09280-18008-000 O RING (D:3.2,ID:17.8) 2 Rp16.000
9 07130-0612A-000 BOLT 2 Rp3.500
10 17910-27G10-000 TANK ASSY, RESERVOIR 1 Rp303.000
11 17931-02FA0-000 ?CAP, RESERVOIR TANK 1 Rp40.000
12 DISCONTINUE
SUB: 09111-06085-000		 BOLT (6X12) 1 -
13 17900-27810-000 HOSE, RESERVOIR TANK INLET 1 Rp114.500
14 17982-15H00-000 HOSE, RESERVOIR TANK OVERFLOW 1 Rp103.500
15 09401-08411-000 CLIP 2 Rp12.500
16 17920-27G10-000 BRACKET, RESERVOIR TANK 1 Rp106.500
17 01550-0610B-000
SUB: 01550-0610A-000		 BOLT 2 Rp3.000
18 09404-06429-000 CLAMP (L:45) 1 Rp15.000
19 17662-02F11-000 CONNECTOR, THERMOSTAT INLET 1 Rp347.000
20 17663-17G00-000 CAP, THERMOSTAT CONNECTOR 1 Rp159.000
21 17670-06G60-000 THERMOSTAT, WATER 1 Rp189.500
22 01547-0616A-000 BOLT 2 Rp6.500
23 17856-44H00-000 HOSE, CONNECTOR TO WATER PUMP 1 Rp112.000
24 DISCONTINUE
SUB: 09401-12409-000		 CLAMP 2 -
25 13650-49X00-000 SENSOR, WATER TEMPERATURE 1 Rp133.500
26 09168-12017-000 GASKET (12X17X1) 1 Rp13.000
27 09402-28513-000 CLAMP 4 Rp45.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
