  5. FIG.21 TRANSMISSION

V-Storm 650

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 GASKET SETFIG.2 CYLINDER HEAD (FRONT) FIG.3 CYLINDER HEAD (REAR) FIG.4 CYLINDER FIG.5 CRANKCASE FIG.6 CRANKCASE COVER FIG.7 CRANKSHAFT FIG.8 STARTER CLUTCH FIG.9 CAMSHAFT/VALVE FIG.10 CAM CHAIN FIG.11 THROTTLE BODY FIG.12 AIR CLEANER FIG.13 MUFFLER FIG.14 OIL PUMP FIG.15 FUEL PUMP FIG.16 OIL COOLER FIG.17 WATER PUMP FIG.18 RADIATOR FIG.19 RADIATOR HOSE FIG.20 CLUTCH FIG.21 TRANSMISSION FIG.22 GEAR SHIFTING

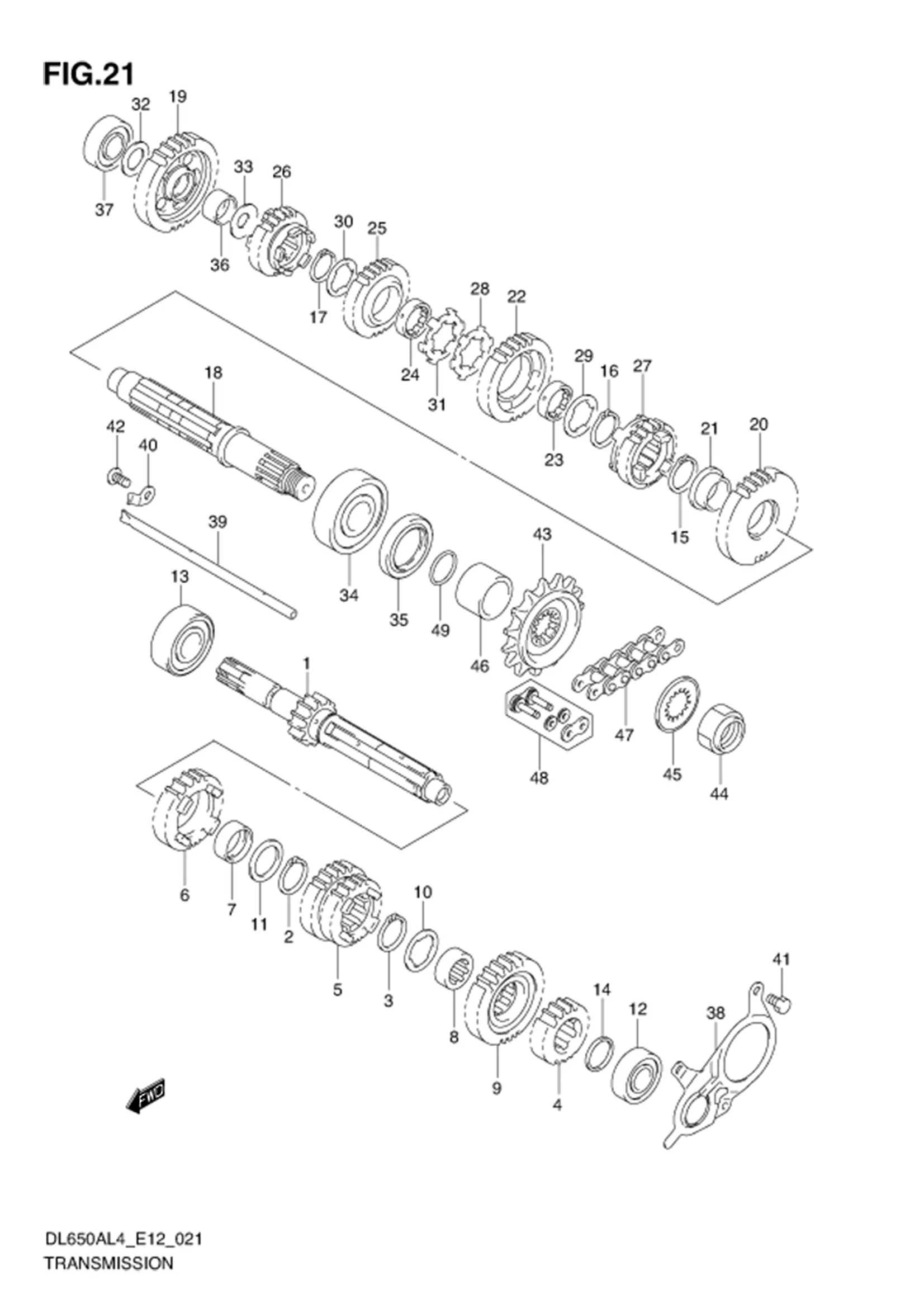

FIG.21 TRANSMISSION

FIG.21 TRANSMISSION
No No. Part Description Qty Price Per Pcs Remarks
1 24120-27G00-000 SHAFT, COUNTER (NT:13) 1 Rp1.440.500
2 24127-19F00-000 CIRCLIP 1 Rp23.500
3 24127-19F00-000 CIRCLIP 1 Rp23.500
4 24221-20F10-000 GEAR, 2ND DRIVE (NT:18) 1 Rp608.500
5 24231-20F10-000 GEAR, 3RD & 4TH DRIVE (NT:21/24) 1 Rp810.500
6 DISCONTINUE
SUB: 24251-20F02-000		 GEAR, 5TH DRIVE (NT:26) 1 -
7 24252-19F00-000 BUSH, 5TH DRIVE GEAR 1 Rp96.500
8 24252-38A10-000 BUSH, 6TH DRIVE GEAR 1 Rp110.500
9 24261-20F00-000 GEAR, 6TH DRIVE (NT:27) 1 Rp759.000
10 09167-25021-000 LOCK WASHER 1 Rp21.500
11 09181-25167-000 SHIM (25X34X1) 1 Rp18.000
12 09262-17046-000 BEARING (17X40X12) 1 Rp242.500 LH
13 09262-20116-000
SUB: 09262-20145-000		 BEARING (20X52X15) 1 Rp215.000 RH
14 09380-25012-000 CIRCLIP 1 Rp15.500
15 24127-19F00-000 CIRCLIP 1 Rp23.500
16 24127-19F00-000 CIRCLIP 1 Rp23.500
17 24127-19F00-000 CIRCLIP 1 Rp23.500
18 24130-44H10-000 SHAFT, DRIVE 1 Rp1.849.500
19 24311-44H00-000 GEAR, 1ST DRIVEN (NT:32) 1 Rp717.500
20 24321-44H10-000 GEAR, 2ND DRIVEN (NT:32) 1 Rp656.000
21 24322-19F10-000 BUSH, 2ND DRIVEN GEAR 1 Rp157.500
22 24331-44H00-000 GEAR, 3RD DRIVEN (NT:29) 1 Rp660.500
23 24332-24510-000 BUSH, DRIVEN GEAR 1 Rp100.500
24 24332-24510-000 BUSH, DRIVEN GEAR 1 Rp100.500
25 24341-44H00-000 GEAR, 4TH DRIVEN (NT:27) 1 Rp717.500
26 24351-44H10-000 GEAR, 5TH DRIVEN (NT:25) 1 Rp738.000
27 24361-44H00-000 GEAR, 6TH DRIVEN (NT:23) 1 Rp738.000
28 09167-25013-000 LOCK WASHER 1 Rp21.000
29 09167-25021-000 LOCK WASHER 1 Rp21.500
30 09167-25021-000 LOCK WASHER 1 Rp21.500
31 09169-25001-000 WASHER 1 Rp17.500
32 DISCONTINUE
SUB: 09181-17195-000		 SHIM (17X28X1) 1 -
33 09181-20195-000 SHIM (20X30X1) 1 Rp19.000
34 24135-60K00-000
SUB: 09262-25125-000		 BEARING (25X62X17) 1 Rp162.000 LH
35 09283-36011-000 OIL SEAL (36X50X6) 1 Rp157.500
36 09300-20032-000 BUSH (20X24X13) 1 Rp90.500
37 09262-17023-000 BEARING (17X40X12) 1 Rp128.000 RH
38 24751-19F10-000 RETAINER, DRIVE SHAFT OIL SEAL 1 Rp78.000
39 24881-12C30-000 GUIDE, T/M OIL 1 Rp74.000
40 24885-12C10-000 RETAINER, T/M OIL 1 Rp20.500
41 DISCONTINUE
SUB: 01500-0612A-000		 BOLT 3 -
42 02112-0612A-000 SCREW 1 Rp3.500
43 27510-20F21-000
SUB: 27510-20F00-000		 SPROCKET, ENGINE (NT:15) 1 Rp451.000
44 DISCONTINUE
SUB: 09159-20004-000		 NUT 1 -
45 09167-25028-000 LOCK WASHER 1 Rp22.000
46 27531-19F10-000 SPACER, ENGINE SPROCKET 1 Rp210.000
47 27600-06G40-120 CHAIN ASSY, DRIVE 1 Rp2.425.000 L:120->118
48 27620-06G40-000 JOINT SET, DRIVE CHAIN 1 Rp120.500 OPT
49 09280-24005-000
SUB: 09280-24010-000		 O RING (D:2.4,ID:23.7) 1 Rp3.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
