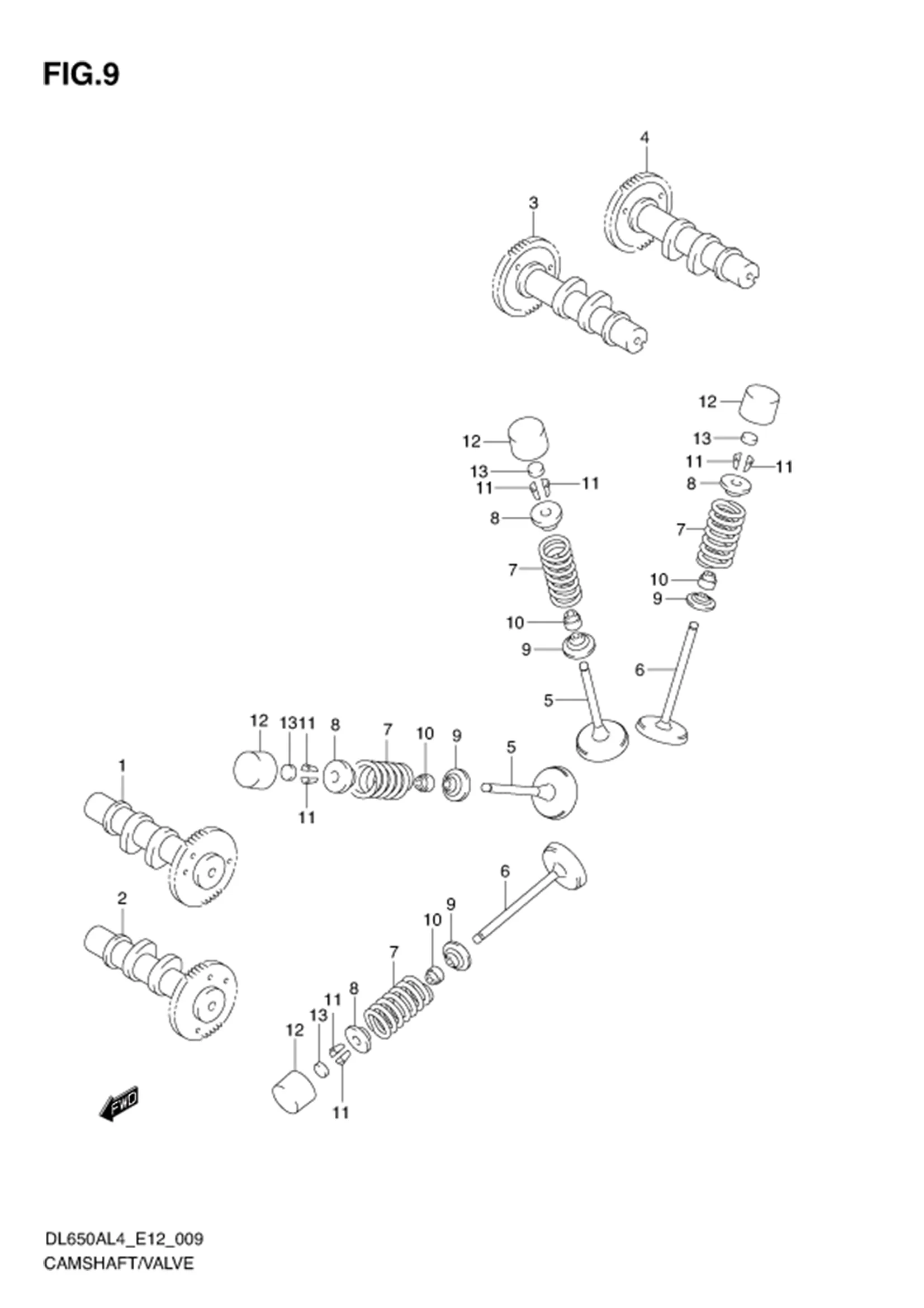

FIG.9 CAMSHAFT/VALVE

FIG.9 CAMSHAFT/VALVE
No No. Part Description Qty Price Per Pcs Remarks
1 12710-11J00-000 CAMSHAFT, INTAKE FRONT (NT:36) 1 Rp1.611.500
2 12720-20F00-000 CAMSHAFT, EXHAUST FRONT (NT:36) 1 Rp2.147.000
3 12730-11J00-000 CAMSHAFT, INTAKE REAR (NT:36) 1 Rp1.611.500
4 12740-20F00-000 CAMSHAFT, EXHAUST REAR (NT:36) 1 Rp2.147.000
5 12911-18H00-000 VALVE, INTAKE 4 Rp293.500
6 12912-20F00-000 VALVE, EXHAUST 4 Rp381.000
7 12921-44H00-000 SPRING, VALVE 8 Rp98.500
8 12931-17E01-000 RETAINER, VALVE SPRING 8 Rp84.500
9 12933-17E00-000 SEAT, VALVE SPRING 8 Rp40.000
10 09289-04002-000 OIL SEAL (4.5X10X8) 8 Rp10.500
11 12932-32C00-000 COTTER, VALVE 16 Rp12.500
12 12891-18H00-000 TAPPET 8 Rp398.000
13-21 12892-05C00-220 SHIM, TAPPET (T:2.20) 8 Rp53.500
13-20 12892-05C00-215 SHIM, TAPPET (T:2.15) 8 Rp56.000
13-19 12892-05C00-210 SHIM, TAPPET (T:2.10) 8 Rp55.000
13-18 12892-05C00-205 SHIM, TAPPET (T:2.05) 8 Rp56.000
13-17 12892-05C00-200 SHIM, TAPPET (T:2.00) 8 Rp55.000
13-6 12892-05C00-145 SHIM, TAPPET (T:1.45) 8 Rp57.500
13-16 12892-05C00-195 SHIM, TAPPET (T:1.95) 8 Rp56.000
13-15 12892-05C00-190 SHIM, TAPPET (T:1.90) 8 Rp56.000
13-14 12892-05C00-185 SHIM, TAPPET (T:1.85) 8 Rp56.000
13-13 12892-05C00-180 SHIM, TAPPET (T:1.80) 8 Rp54.000
13-12 12892-05C00-175 SHIM, TAPPET (T:1.75) 8 Rp53.000
13-11 12892-05C00-170 SHIM, TAPPET (T:1.70) 8 Rp56.000
13-10 12892-05C00-165 SHIM, TAPPET (T:1.65) 8 Rp54.500
13-9 12892-05C00-160 SHIM, TAPPET (T:1.60) 8 Rp53.500
13-8 12892-05C00-155 SHIM, TAPPET (T:1.55) 8 Rp56.000
13-7 12892-05C00-150 SHIM, TAPPET (T:1.50) 8 Rp54.500
13-5 12892-05C00-140 SHIM, TAPPET (T:1.40) 8 Rp56.500
13-4 12892-05C00-135 SHIM, TAPPET (T:1.35) 8 Rp57.500
13-3 12892-05C00-130 SHIM, TAPPET (T:1.30) 8 Rp57.500
13-2 12892-05C00-125 SHIM, TAPPET (T:1.25) 8 Rp57.500
13-1 12892-05C00-120 SHIM, TAPPET (T:1.20) 8 Rp57.500
14 12800-05830-000 SHIM SET, TAPPET (T:1.20, 1.25...2.15, 2.20) (5PCS.EACH) & CASE 1 Rp7.383.500 OPT, NOT ILLUSTRATED
15 DISCONTINUE
SUB: 99000-69491-000		 ?CASE, TAPPET SHIM 1 - OPT, NOT ILLUSTRATED

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
