SX4 S-Cross M

Preview Engine Transmission Electrical Suspension Body

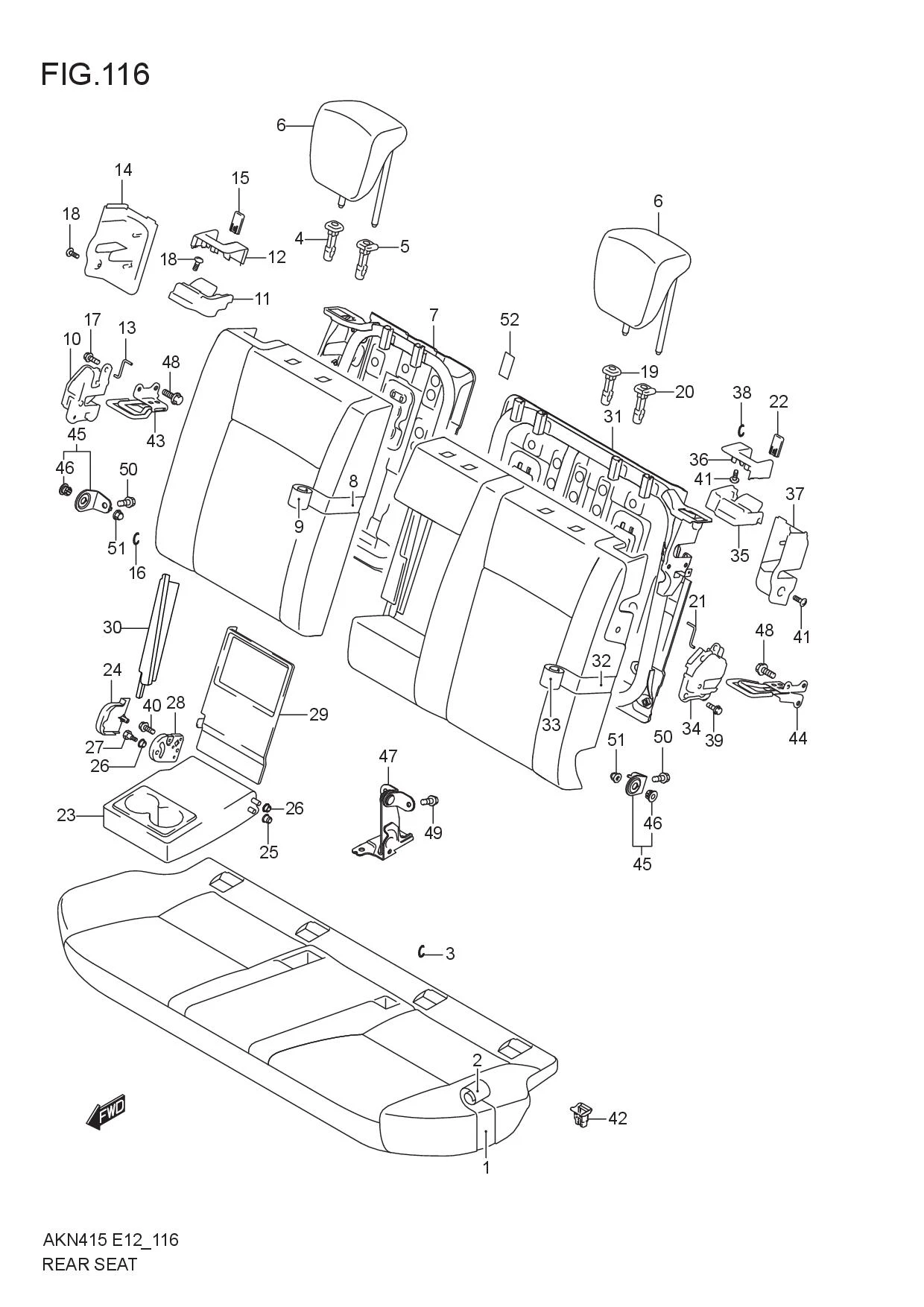

REAR SEAT

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	87160M65M00-000	PAD , RR CUSH	1	Rp1.099.000
2-1	87180M65M00-BEV	TRIM , RR CUSH	1	Rp1.038.500	TYPE-1
2-2	87180M65MA0-B0U	TRIM , RR CUSH	1	Rp2.873.000	TYPE-2
3	09387-19001-000	RING, TRIM	54	Rp9.000
4	85341M79M10-5PK	GUIDE, HEADRESTRAINT	1	Rp9.500
5	85840M79M20-5PK	GUIDE , HEADRESTRAINT	1	Rp11.000
6-1	86401M65M20-B0W	HEADRESTRAINT ASSY, RR	2	Rp403.000	TYPE-1
6-2	86401M65MB0-B0V	HEADRESTRAINT ASSY, RR	2	Rp585.500	TYPE-2
7	87310M65M30-000	FRAME , RR BACK, R	1	Rp703.500
8	87360M65M30-000	PAD , RR BACK, R	1	Rp488.500
9-1	87380M65M30-BEV	TRIM , RR BACK, R	1	Rp818.500	TYPE-1
9-2	87380M65MB0-B0U	TRIM , RR BACK, R	1	Rp2.449.500	TYPE-2
10	87480-61M30-000	LOCK ASSY, RR BACK, R	1	Rp1.066.000
11	87481M65M30-5PK	KNOB , RR BACK LOCK, R	1	Rp12.500
12	87482M65M30-5PK	BEZEL, RR BACK LOCK, R	1	Rp7.000
13	87485M65M30-000	WIRE, RR BACK LOCK	1	Rp8.000
14	87486M65M30-5PK	BEZEL, RR BACK LOCK HOLE, R	1	Rp45.500
15	87471M65M00-5PK	INDICATOR , RR BACK LOCK	1	Rp7.000
16	09387-19001-000	RING, TRIM	2	Rp9.000
17	01550-0820A-000 SUB: 01550B0820AN000	BOLT, RR BACK LOCK	3	Rp5.500
18	03241-0508A-000	SCREW, BEZEL	2	Rp10.500
19	85341M79M10-5PK	GUIDE, HEADRESTRAINT	2	Rp9.500
20	85840M79M20-5PK	GUIDE , HEADRESTRAINT	2	Rp11.000
21	87485M65M30-000	WIRE, RR BACK LOCK	1	Rp8.000
22	87471M65M00-5PK	INDICATOR , RR BACK LOCK	1	Rp7.000
23-1	87501M65M30-A7J	ARMREST ASSY, RR	1	Rp440.500	TYPE-1
23-2	87501M65MB0-BFU	ARMREST ASSY, RR	1	Rp934.500	TYPE-2
24	87521M65M30-5PK	COVER, RR ARMREST	1	Rp16.000
25	87523M65M30-000	BUSH, RR ARMREST NO.1	1	Rp5.500
26	87524M65M30-000	BUSH, RR ARMREST NO.2	3	Rp10.500
27	87525M65M30-000	BOLT, ARMREST	1	Rp20.000
28	87527M65M30-000	BRACKET, RR ARMREST OUTER	1	Rp20.000
29	87570M65M30-5PK	BOARD, RR ARMREST	1	Rp106.500
30	87593M65M30-000	PAD, RR BACK SUPPORT	1	Rp14.500
31	87810M65M30-000	FRAME , RR BACK, L	1	Rp1.111.500
32	87860M65M30-000	PAD , RR BACK, L	1	Rp539.000
33-1	87880M65M30-BEV	TRIM , RR BACK, L	1	Rp818.500	TYPE-1
33-2	87880M65MB0-B0U	TRIM , RR BACK, L	1	Rp2.449.500	TYPE-2
34	87980-61M30-000	LOCK ASSY, RR BACK, L	1	Rp1.066.000
35	87981M65M30-5PK	KNOB , RR BACK LOCK, L	1	Rp12.500
36	87982M65M30-5PK	BEZEL, RR BACK LOCK, L	1	Rp20.500
37	87986M65M30-5PK	BEZEL, RR BACK LOCK HOLE, L	1	Rp47.500
38	09387-19001-000	RING, TRIM	2	Rp9.000
39	01550-0820A-000 SUB: 01550B0820AN000	BOLT, RR BACK LOCK	3	Rp5.500
40	01550-0820A-000 SUB: 01550B0820AN000	BOLT, ARMREST	1	Rp5.500
41	03241-0508A-000	SCREW, BEZEL	2	Rp10.500
42	87460-76G11-000 SUB: 87460-76G10-000	HOOK, RR SEAT CUSH	2	Rp39.000
43	87470M61M10-000	STRIKER , RR BACK, R	1	Rp147.500
44	87870M61M10-000	STRIKER , RR BACK, L	1	Rp151.500
45	87910M61M00-000	HINGE , RR SIDE	2	Rp20.500
46	87912M68L01-000	.BUSH, RR BACK HINGE	1	Rp6.000
47	87950M65M00-000	HINGE , RR SEAT CENTER	1	Rp145.500
48	01551-0820A-000	BOLT, STRIKER	6	Rp17.500
49	01551-1025A-000	BOLT, RR CENTER HINGE	1	Rp29.000
50	01551-1025A-000	BOLT, RR BACK	4	Rp29.000
51	08313-2010A-000	NUT, RR BACK HINGE SIDE	2	Rp20.500
52	87594M65M30-000	TAPE,RR BACK SUPPORT	2	Rp13.500
