SX4 S-Cross M

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FRONT HOOD PANELFRONT FENDERFRONT BODY PANELFLOOR PANELSIDE BODY PANELROOF PANELFRONT BUMPER(TYPE-1)FRONT BUMPER(TYPE-2)REAR BUMPERINSTRUMENT PANELVENTILATORHEATER UNITCONSOLE  BOXFLOOR CARPETINTERIOR TRIMCOVER/CAPFUEL LID OPENERROOF LININGMOLDINGSPLASH GUARDEMBLEMWINDSHIELDFRONT DOOR PANELFRONT DOOR REGURATORFRONT DOOR LOCKREAR DOOR PANELREAR DOOR REGULATORREAR DOOR LOCKBACK DOOR PANELBACK DOOR LOCKMIRROR/SUNVISORSEAT BELTFR RH SEATFR LH SEATREAR SEATPARCEL SHELFFUEL TANKTOOLAIR CONDITIONERCOMPRESSOR

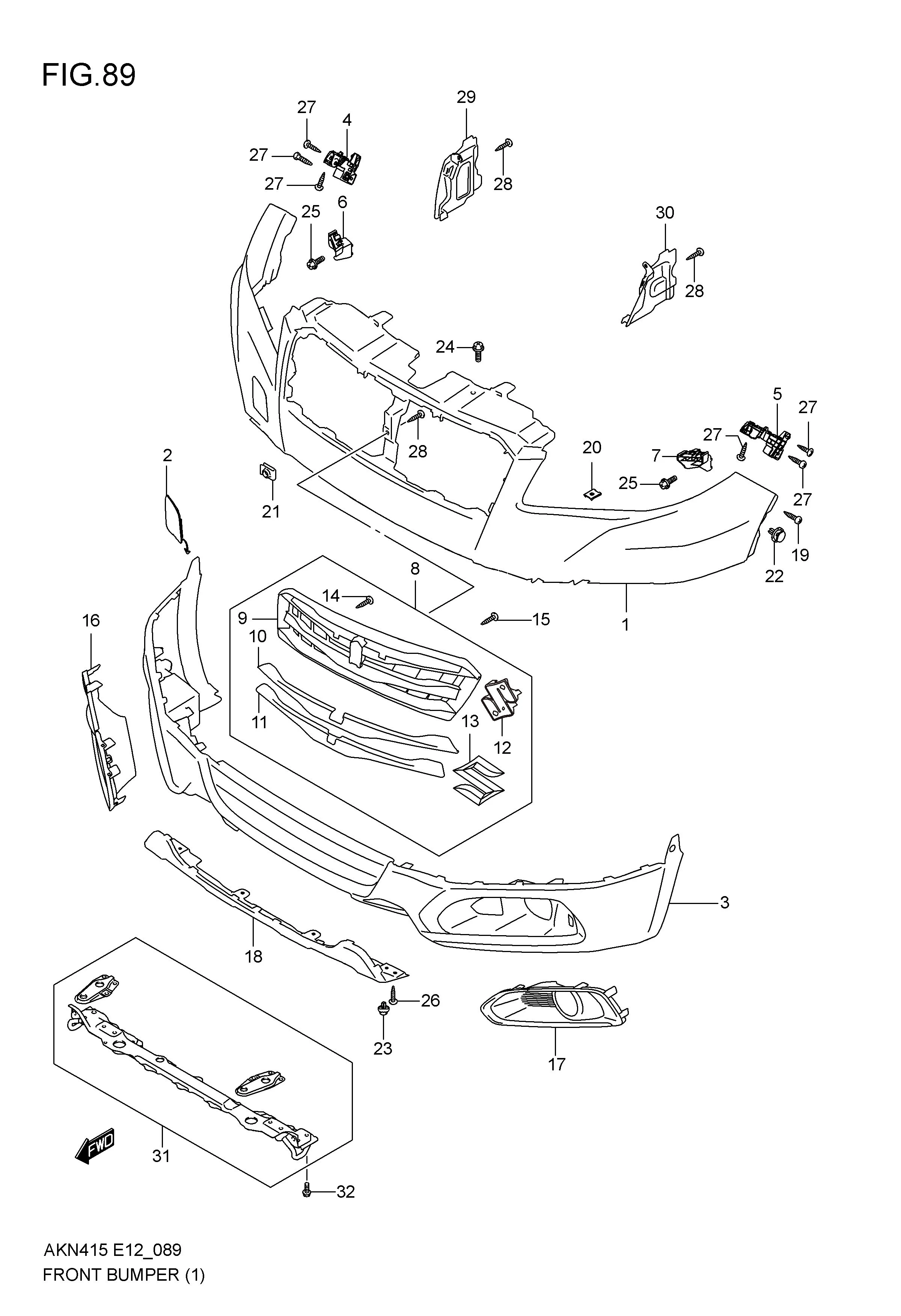

FRONT BUMPER(TYPE-1)

FRONT BUMPER(TYPE-1)
No No. Part Description Qty Price Per Pcs Remarks
1 71711M64M00-799 BUMPER, FRONT UPPER 1 Rp1.246.500
2 71712M61M00-5PK CAP, FRONT BUMPER 1 Rp17.500
3 71721M61M00-5PK BUMPER, FRONT LOWER 1 Rp1.069.500
4 71731M61M00-000 HOLDER, FR BUMPER SIDE, R 1 Rp34.500
5 71732M61M00-000 HOLDER, FR BUMPER SIDE, L 1 Rp34.500
6 71733M61M00-000 HOLDER, FR BUMPER FRONT, R 1 Rp23.000
7 71734M61M00-000 HOLDER, FR BUMPER FRONT, L 1 Rp23.000
8 71740M64M00-C48 GRILLE, RADIATOR UPPER 1 Rp897.000
9 71741M64M00-5PK .GRILLE, RADIATOR UPPER 1 Rp231.000
10 71742M64M00-0PG .GARNISH, RADIATOR GRILLE UPR 1 Rp299.500
11 71743M64M00-0PG .GARNISH, RADIATOR GRILLE LWR 1 Rp332.000
12 71744M64M00-5PK .COVER, MARK(S) 1 Rp43.500
13 77811-65J00-0PG .EMBLEM, MARK(S) 1 Rp131.500
14 03541-0416A-000 .SCREW 8 Rp3.500
15 03541-0416A-000 SCREW 4 Rp3.500
16 71750M64M10-C48 BEZEL , FRONT FOG LAMP, R 1 Rp119.000
17 71760M64M10-C48 BEZEL , FRONT FOG LAMP, L 1 Rp119.000
18 71771M61M10-PER GARNISH, FR BUMPER LOWER 1 Rp244.000
19 09132M05063-000 SCREW 2 Rp5.500
20 09148M05071-000 NUT 4 Rp6.000
21 08315-11069-000 NUT 2 Rp2.500
22 09409M07L01-000 CLIP 2 Rp5.000
23 09409M07L01-000 CLIP 2 Rp5.000
24 01551-0616C-000 BOLT 4 Rp14.500
25 01551-0616C-000 BOLT 2 Rp14.500
26 03241M0516A-000 SCREW 4 Rp4.500
27 03541-0416A-000 SCREW 6 Rp3.500
28 03541-0416A-000 SCREW 5 Rp3.500
29 71781M61M00-000 COVER, FRONT END SIDE UPR, R 1 Rp22.000
30 71782M61M00-000 COVER, FRONT END SIDE UPR, L 1 Rp22.000
31 71100M64M21-000
SUB: 71100M64M20-000		 MEMBER , RADIATOR SUPPORT 1 Rp924.500
32 01551-1025A-000 BOLT 6 Rp29.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
