SX4 S-Cross M

Preview Engine Transmission Electrical Suspension Body

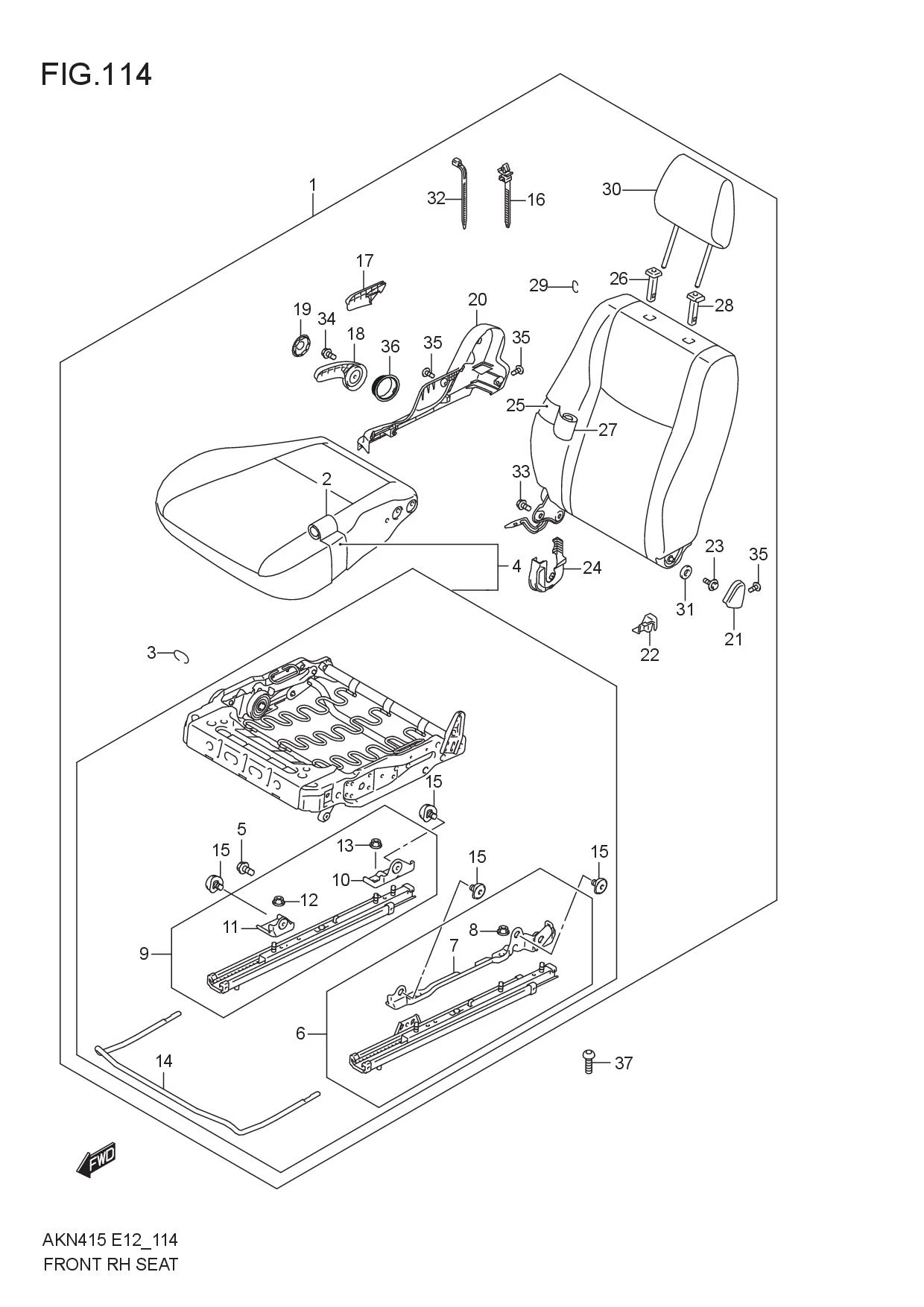

FR RH SEAT

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-1	85180M65M51-BEU	TRIM , FR CUSH, R	1	Rp571.000	TYPE-1
1-2	85180M65ML1-BFB	TRIM , FR CUSH, R	1	Rp2.863.000	TYPE-2
2	09387-19001-000	RING, TRIM	13	Rp9.000
3	85105M79M22-000 SUB: 85105M79M21-000	CUSHION S/ASSY, FR, R	1	Rp6.325.000
4	01550-0612B-000	.BOLT, SEAT LIFTER	4	Rp16.500
5	86601M79M21-000	.ADJUSTER SUB ASSY, FR INSIDE, R	1	Rp754.500
6	86720M79M20-000	..RISER , LIFTER INSIDE, R	1	Rp235.000
7	08316-1008A-000	..NUT, RISER	3	Rp3.500
8	86603M79M21-000 SUB: 86603M79M20-000	.ADJUSTER SUB ASSY, FR OUT-SIDE, R	1	Rp599.500
9-1	86641M74L20-000	..RISER , LIFTER RR OUTSIDE R	1	Rp23.500	TYPE-1
9-2	86641M79M20-000	..RISER , LIFTER RR OUTSIDE R	1	Rp32.500	TYPE-2
10-1	86710M74L20-000	..RISER , LIFTER FR OUTSIDE R	1	Rp10.500	TYPE-1
10-2	86710M79M20-000	..RISER , LIFTER FR OUTSIDE R	1	Rp39.000	TYPE-2
11	09159M08152-000	..NUT, RISER	1	Rp14.000
12	08316-1008A-000	..NUT, RISER	2	Rp3.500
13	86691M74L00-000	.HANDLE, FR SEAT ADJUSTER	1	Rp128.500
14	86717-63J40-000	.BOLT, RISER	4	Rp74.000
15	85191M74L00-000	CLAMP	1	Rp9.000
16	85211-68K00-5PK	KNOB, RCLNG, R	1	Rp323.000
17	85213M79M00-5PK	LEVER, SEAT LIFTER, R	1	Rp107.500
18	85214-63J20-5PK	CAP, LIFTER LEVER	1	Rp50.000
19	85221M84M00-5PK	COVER, RCLNG OUTSIDE, R	1	Rp133.000
20	85241M79M10-5PK	COVER, FR HINGE INSIDE, R	1	Rp9.500
21	85243-79M20-5PK	COVER, RR RISER INSIDE, R	1	Rp441.000
22	85295-58J01-000	BOLT, FR BACK	1	Rp34.000
23	85222-75L00-5PK	COVER, FR BACK FRAME, R	1	Rp1.216.500
24	85305M79M10-000	BACK S/ASSY, FR, R	1	Rp1.131.000
25	85341M79M10-5PK	GUIDE, HEADRESTRAINT	1	Rp9.500
26-1	85380M65M40-BEU	TRIM , FR BACK, R	1	Rp860.000	TYPE-1
26-2	85380M65ML0-BFB	TRIM , FR BACK, R	1	Rp2.449.500	TYPE-2
27	85840M79M20-5PK	GUIDE , HEADRESTRAINT	1	Rp11.000
28	09387-19001-000	RING, TRIM	23	Rp9.000
29-1	86401M79M10-B0W	HEADRESTRAINT ASSY	1	Rp403.000	TYPE-1
29-2	86401M79M40-B0V	HEADRESTRAINT ASSY	1	Rp638.500	TYPE-2
30	87286-58J10-000 SUB: 87286B58J10N000	BUSH, FR BACK FIX	1	Rp4.500
31	36990-25G00-000	CLAMP	2	Rp13.000
32	01550-1016A-000 SUB: 01550B1016AN000	BOLT, FR BACK	2	Rp5.500
33	01551-0816C-000	BOLT, FRONT SEAT CUSHION	1	Rp13.500
34	03241-0510A-000	SCREW, RECL COVER	3	Rp8.000
35	85214M79M00-5PK	COVER, SEAT LIFTER	1	Rp12.000
36	09119M08106-000	BOLT, FR MTG	4	Rp8.500
