Preview Engine Transmission Electrical Suspension Body

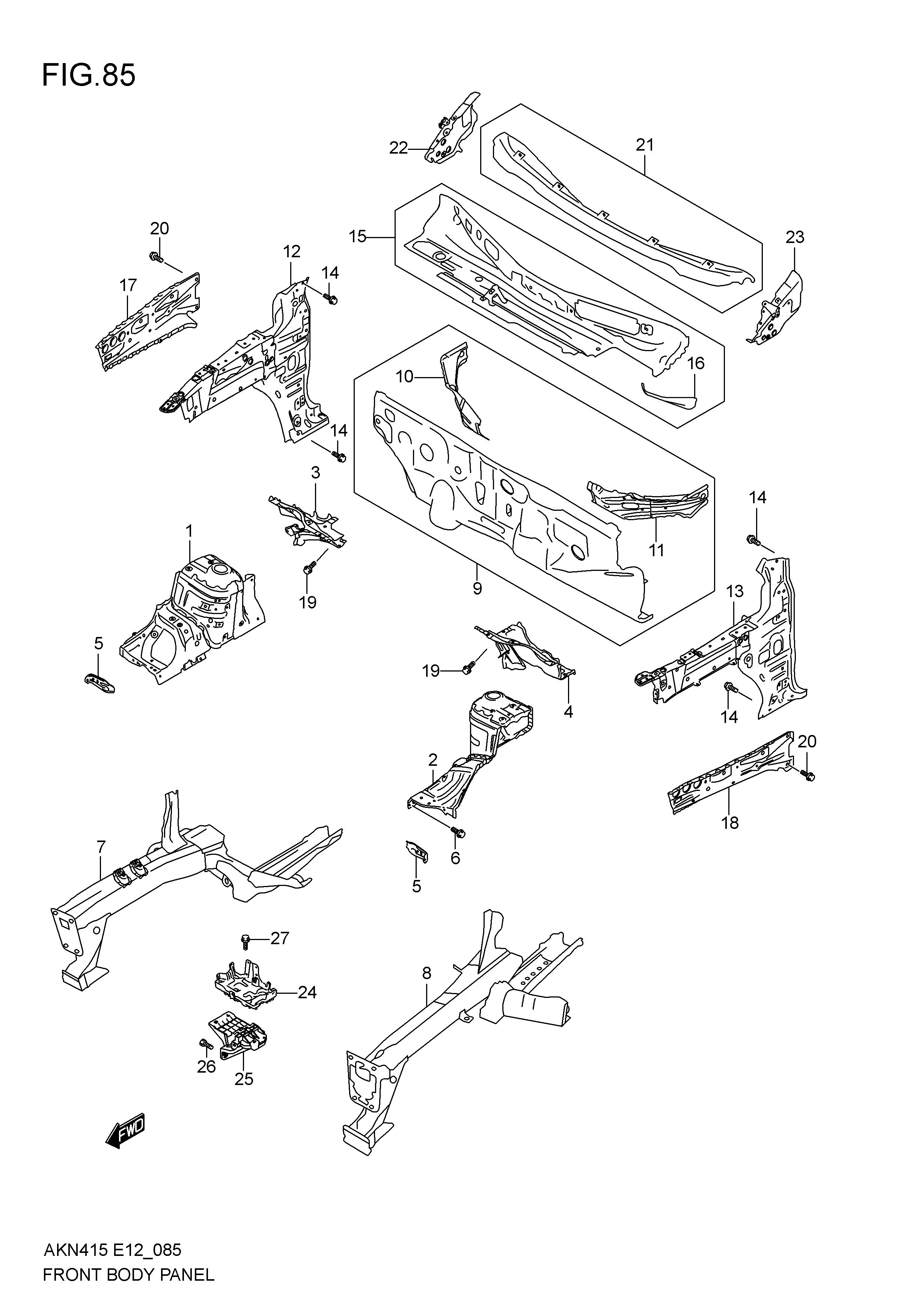

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	58310M64M00-000	PANEL, FENDER APRON, RH	1	Rp1.001.000
2	58410M64M00-000	PANEL, FENDER APRON, LH	1	Rp1.001.000
3	58320M64M00-000	REINF, COWL UPPER, RH	1	Rp581.000
4	58420M64M00-000	REINF, COWL UPPER, LH	1	Rp581.000
5	58333M64M00-000	BRACKET, FR FENDER LOWER	2	Rp23.500
6	01550-0612B-000	BOLT	1	Rp16.500
7-1	58600M64M00-000	MEMBER ASSY, APRON SIDE, RH	1	Rp6.265.500	TYPE-1
7-2	58600M64MA0-000	MEMBER ASSY, APRON SIDE, RH	1	Rp2.936.500	TYPE-2
8	58700M64M00-000	MEMBER ASSY, APRON SIDE, LH	1	Rp6.265.500
9-1	59100M64M40-000	PANEL, DASH	1	Rp3.273.500	5MT
9-2	59100M64M20-000	PANEL, DASH	1	Rp3.295.000	6AT
10	59140M64M00-000	.REINF, DASH PANEL SIDE, RH	1	Rp272.500
11	59150M64M00-000	.REINF, DASH PANEL SIDE, LH	1	Rp272.500
12	59230M64M00-000	PANEL, DASH SIDE, RH	1	Rp723.000
13	59280M64M00-000	PANEL, DASH SIDE, LH	1	Rp723.000
14	01550-0612B-000	BOLT	6	Rp16.500
15	59300M64M00-000	PANEL, COWL UPPER	1	Rp1.617.000
16	59312M61M00-000	.SEALING, COWL VENTILATOR	1	Rp45.500
17	59411M64M00-000	MEMBER, COWL SIDE OUTER, RH	1	Rp246.000
18	59461M64M00-000	MEMBER, COWL SIDE OUTER, LH	1	Rp246.000
19	01550-0612B-000	BOLT	2	Rp16.500
20	01550-0820A-000 SUB: 01550B0820AN000	BOLT	4	Rp5.500
21	59710M64M00-000	PANEL, COWL TOP	1	Rp554.000
22	59740M64M00-000	PANEL, COWL TOP SIDE, RH	1	Rp161.000
23	59750M64M00-000	PANEL, COWL TOP SIDE, LH	1	Rp161.000
24	72521M66M00-000	TRAY, BATTERY	1	Rp329.500
25	72522M66M00-000	BRACKET, BATTERY	1	Rp459.500
26	DISCONTINUE SUB: 09118-08165-000	BOLT	5	-
27	02162-0625A-000	BOLT	2	Rp3.500
