SX4 S-Cross M

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FRONT HOOD PANELFRONT FENDERFRONT BODY PANELFLOOR PANELSIDE BODY PANELROOF PANELFRONT BUMPER(TYPE-1)FRONT BUMPER(TYPE-2)REAR BUMPERINSTRUMENT PANELVENTILATORHEATER UNITCONSOLE  BOXFLOOR CARPETINTERIOR TRIMCOVER/CAPFUEL LID OPENERROOF LININGMOLDINGSPLASH GUARDEMBLEMWINDSHIELDFRONT DOOR PANELFRONT DOOR REGURATORFRONT DOOR LOCKREAR DOOR PANELREAR DOOR REGULATORREAR DOOR LOCKBACK DOOR PANELBACK DOOR LOCKMIRROR/SUNVISORSEAT BELTFR RH SEATFR LH SEATREAR SEATPARCEL SHELFFUEL TANKTOOLAIR CONDITIONERCOMPRESSOR

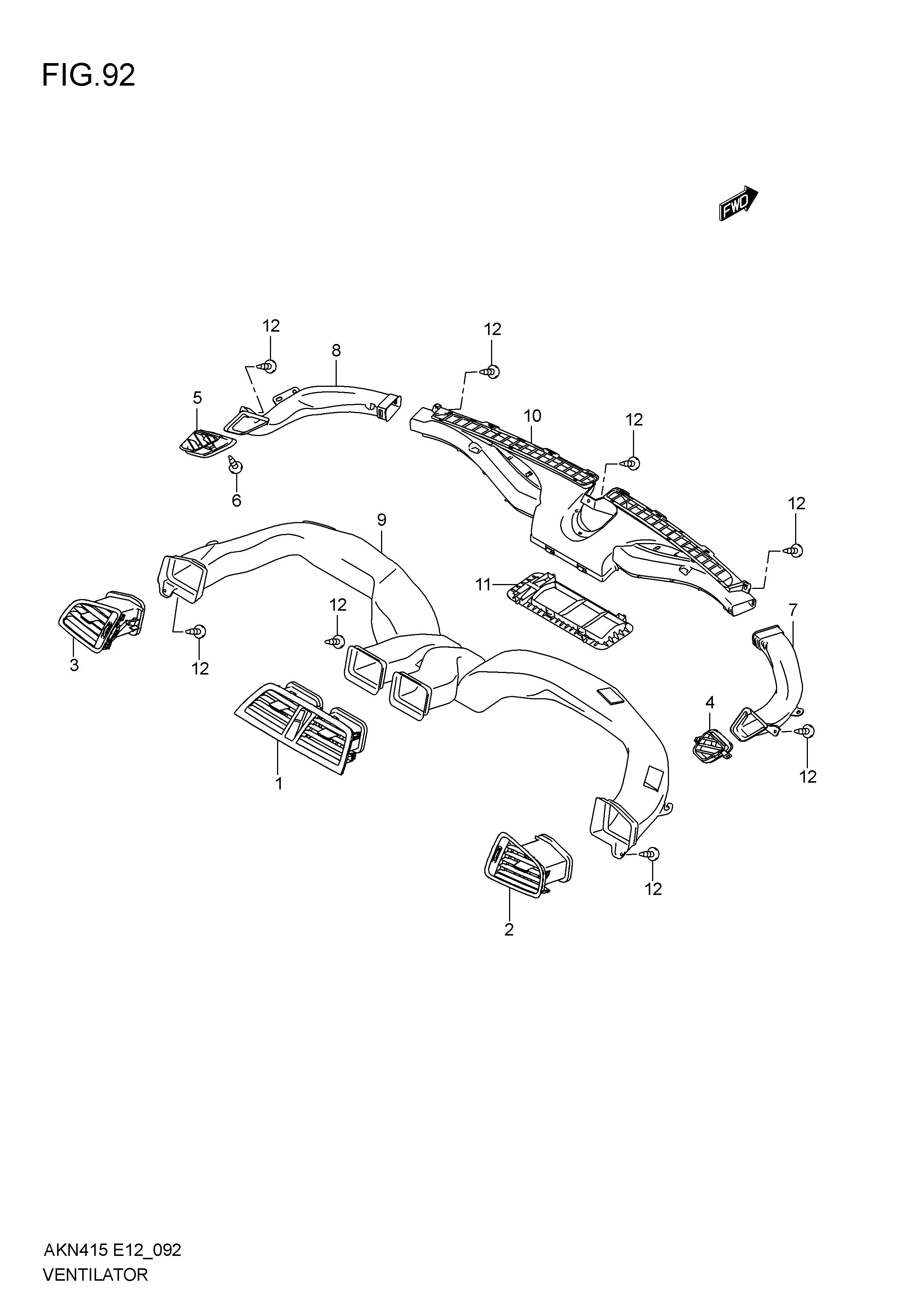

VENTILATOR

VENTILATOR
No No. Part Description Qty Price Per Pcs Remarks
1-2 73610M65M10-C48 LOUVER, CTR VENT 1 Rp245.500 TYPE-2
1-1 73610-65M00-C48 LOUVER, CTR VENT BLACK METALIC 1 Rp506.500 TYPE-1
2-2 73630M65M00-BJC LOUVER, SIDE VENT RH 1 Rp258.500 TYPE-2
2-1 73630M65M00-HTV LOUVER, SIDE VENT RH 1 Rp310.000 TYPE-1
3-2 73640M65M00-BJC LOUVER, SIDE VENT LH 1 Rp258.500 TYPE-2
3-1 73640M65M00-HTV LOUVER, SIDE VENT LH 1 Rp310.000 TYPE-1
4 73651M65M00-000 NOZZLE, SIDE DEMISTER, RH 1 Rp29.000
5 73652M65M00-000 NOZZLE, SIDE DEMISTER, LH 1 Rp27.000
6 03541-0416A-000 SCREW 1 Rp3.500
7 73681M65M00-000 DUCT, DEMISTER, RH 1 Rp32.000
8 73691M65M00-000 DUCT, DEMISTER, LH 1 Rp32.000
9 74620M65M00-000 DUCT, VENT 1 Rp189.500
10 73661M65M00-000 NOZZLE, DFR 1 Rp227.000
11 73662M74L00-000 ADAPTER, DFR NOZZLE 1 Rp21.500
12 03541-0416A-000 SCREW 8 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
