SX4 S-Cross M

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FRONT HOOD PANELFRONT FENDERFRONT BODY PANELFLOOR PANELSIDE BODY PANELROOF PANELFRONT BUMPER(TYPE-1)FRONT BUMPER(TYPE-2)REAR BUMPERINSTRUMENT PANELVENTILATORHEATER UNITCONSOLE  BOXFLOOR CARPETINTERIOR TRIMCOVER/CAPFUEL LID OPENERROOF LININGMOLDINGSPLASH GUARDEMBLEMWINDSHIELDFRONT DOOR PANELFRONT DOOR REGURATORFRONT DOOR LOCKREAR DOOR PANELREAR DOOR REGULATORREAR DOOR LOCKBACK DOOR PANELBACK DOOR LOCKMIRROR/SUNVISORSEAT BELTFR RH SEATFR LH SEATREAR SEATPARCEL SHELFFUEL TANKTOOLAIR CONDITIONERCOMPRESSOR

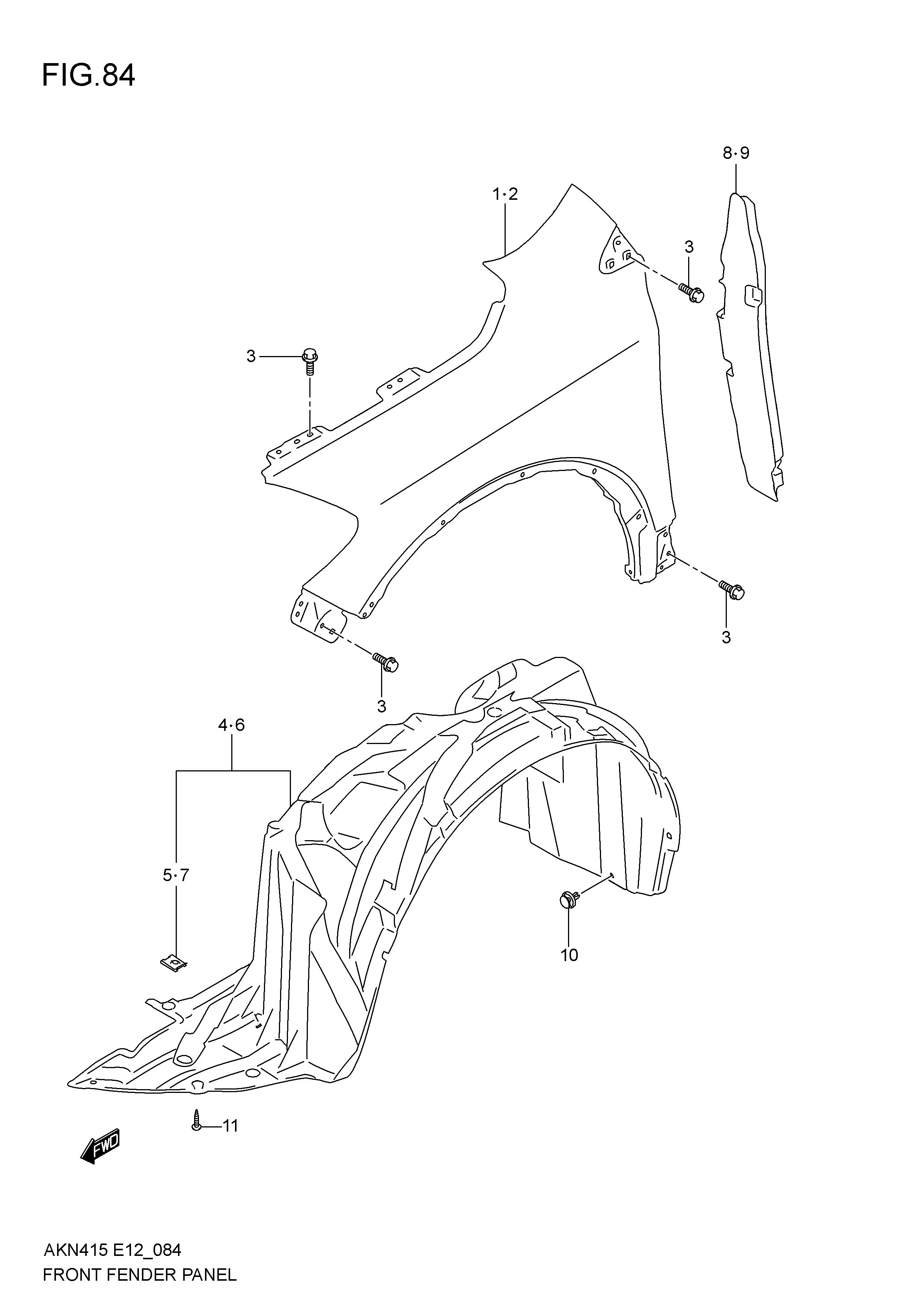

FRONT FENDER

FRONT FENDER
No No. Part Description Qty Price Per Pcs Remarks
1 57611M64M10-000 PANEL, FRONT FENDER, RH 1 Rp925.500
2 57711M64M10-000 PANEL, FRONT FENDER, LH 1 Rp925.500
3 01550-0612B-000 BOLT 14 Rp16.500
4-2 72321M74R00-000 LINING, FRONT FENDER, RH 1 Rp370.500 TYPE-2
4-1 72321M64M10-000 LINING, FRONT FENDER, RH 1 Rp414.000 TYPE-1
5-2 09148-05075-000 .NUT 3 Rp14.000 TYPE-2
5-1 09148M05071-000 .NUT 3 Rp6.000 TYPE-1
6-2 72322M74R00-000 LINING, FRONT FENDER, LH 1 Rp370.500 TYPE-2
6-1 72322M64M10-000 LINING, FRONT FENDER, LH 1 Rp414.000 TYPE-1
7-2 09148-05075-000 .NUT 3 Rp14.000 TYPE-2
7-1 09148M05071-000 .NUT 3 Rp6.000 TYPE-1
8 72351M64M00-000 PAD, FRONT FENDER REAR, RH 1 Rp206.000
9 72352M64M00-000 PAD, FRONT FENDER REAR, LH 1 Rp206.000
10 09409M07L01-000 CLIP 22 Rp5.000
11 09132M05063-000 SCREW 6 Rp5.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
