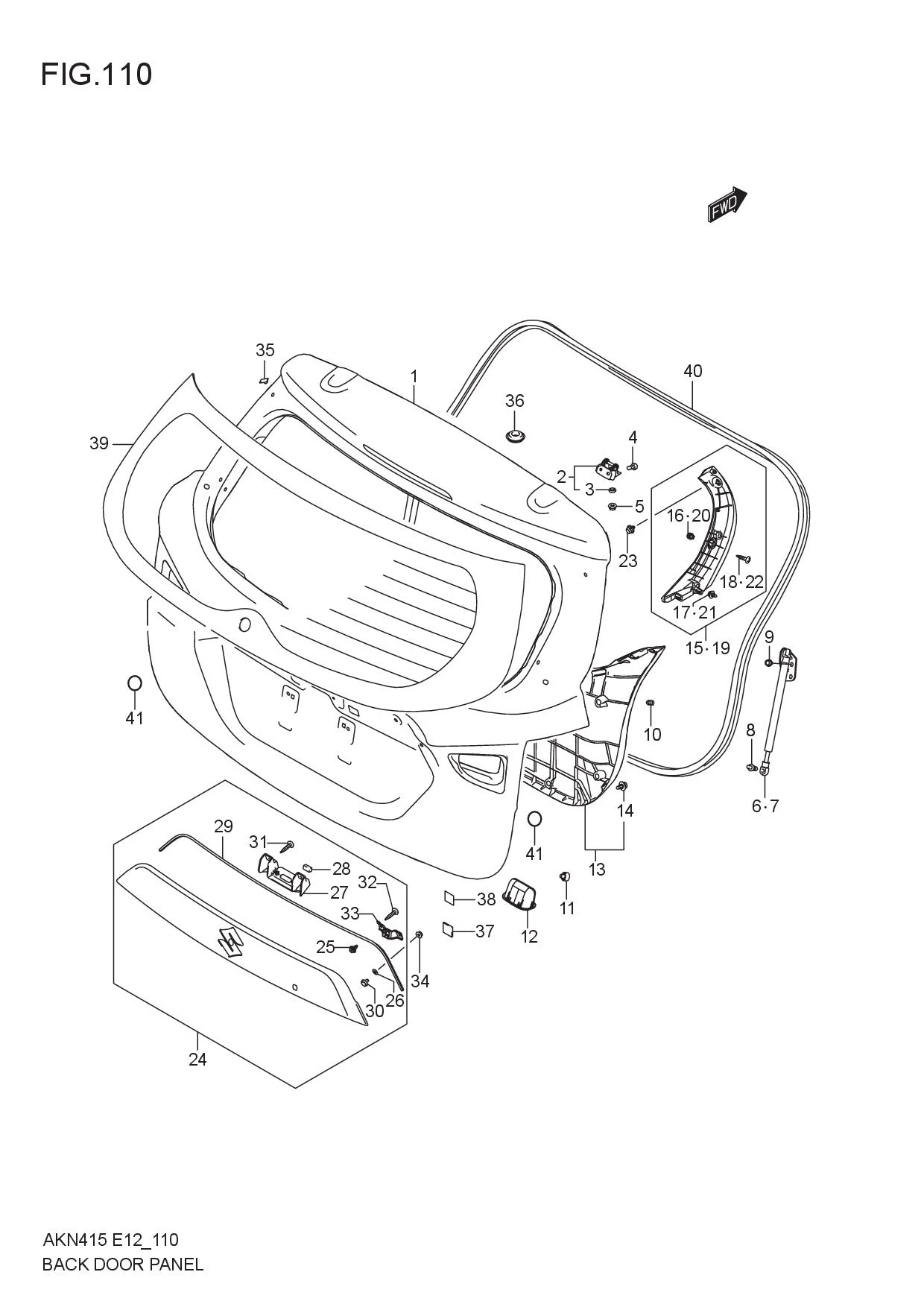

BACK DOOR PANEL

BACK DOOR PANEL
No No. Part Description Qty Price Per Pcs Remarks
1-1 69100M64M10-000
SUB: 69100M64M02-000		 PANEL ASSY, BACK DOOR 1 Rp3.704.500 TYPE-1
1-2 69100M64M10-000 PANEL ASSY, BACK DOOR 1 Rp3.704.500 TYPE-2
2 69510M68P01-000
SUB: 69510M68P00-000		 HINGE , BACK DOOR 2 Rp62.500
3 69571M76G00-000 .PACKING, BACK DR HINGE FEMALE 1 Rp6.500
4 09111M06115-000 BOLT 4 Rp5.500
5 08361-2508A-000 NUT 2 Rp16.500
6 81850M64M00-000 BALANCER , BACK DOOR, R 1 Rp339.500
7 81860M64M00-000 BALANCER , BACK DOOR, L 1 Rp324.000
8 81871-79J01-000
SUB: 81871-79J00-000		 BALLSTUD, BACK DOOR BALANCER 2 Rp71.000
9 09113M08002-000 BOLT 4 Rp5.500
10 82683M64M00-000 CUSHION, BACK DOOR SIDE 2 Rp6.000
11 82684-72M00-000 CUSHION, BACK DOOR LOWER 2 Rp21.000
12 82841-82G02-000
SUB: 82841B82G02N000		 HANDLE, BACK DOOR INNER 1 Rp7.000
13 83770M65M00-5PK TRIM , BACK DOOR 1 Rp433.000
14 09409M10321-000 .CLIP 14 Rp5.000
15 83780M65M00-5PK TRIM , BACK DR SIDE, R 1 Rp75.500
16 83782M61M00-5PK .HOOK, REAR PARCEL STRING 1 Rp18.000
17 09409M10321-000 .CLIP 2 Rp5.000
18 03541-0512B-000
SUB: 03541B0512BN000		 .SCREW 1 Rp4.000
19 83790M65M00-5PK TRIM , BACK DR SIDE, L 1 Rp75.500
20 83782M61M00-5PK .HOOK, REAR PARCEL STRING 1 Rp18.000
21 09409M10321-000 .CLIP 2 Rp5.000
22 03541-0512B-000
SUB: 03541B0512BN000		 .SCREW 1 Rp4.000
23 09409M07L01-000 CLIP 2 Rp5.000
24-1 83940M64M30-ZHJ GARNISH ASSY, BACK DOOR LICENSE 1 Rp1.038.000
24-2 83940M64M30-ZQS GARNISH ASSY, BACK DOOR LICENSE 1 Rp1.062.500
24-3 83940M64M30-ZQT GARNISH ASSY, BACK DOOR LICENSE 1 Rp1.062.500
24-5 83940M64M30-ZTN GARNISH ASSY, BACK DOOR LICENSE 1 Rp1.038.000
25 71812M78F00-000 .CLIP, BACK DOOR LICENSE GARNISH 5 Rp8.000
26 77122-60B00-000 .PACKING, BACK DOOR LICENSE 4 Rp24.000
27 83942M64M00-000 .BRACKET, OPENING SWITCH 1 Rp22.500
28 83944-80J00-000 .PAD, BACK DOOR LICENSE GARNISH 1 Rp32.000
29 83945M64M00-000 .PAD, BACK DOOR LICENSE GARNISH 1 Rp930.000
30 09119-06118-000 .BOLT 2 Rp18.000
31 03541-0416A-000 .SCREW 2 Rp3.500
32 03541-0416A-000 .SCREW 2 Rp3.500
33 83943M66M00-000 .BRACKET, KLS SWITCH 1 Rp12.500
34 08316-1006A-000 NUT 4 Rp2.000
35 84515M65D10-000 FEMALE, GLASS FASTENER NO.2 2 Rp22.000
36 09250M20031-000 CAP, BACK DOOR INNER 1 Rp4.500
37 44281-29C00-000
SUB: 44281B29C00N000		 PAD, LICENSE PLATE 2 Rp6.000
38 77151-82000-000
SUB: 77151B82000N000		 SEAL, BACK DOOR LICENSE PLATE 2 Rp7.000
39 84570M64M01-000 GLASS , BACK DOOR WINDOW 1 Rp1.303.000
40 84681M64M01-000
SUB: 84681M64M00-000		 WEATHERSTRIP, BACK DOOR OPNG 1 Rp360.000
41 83937-83K00-000 FILM,BACK DOOR DRAIN HOLE 3 Rp33.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
