SX4 S-Cross M

Preview Engine Transmission Electrical Suspension Body

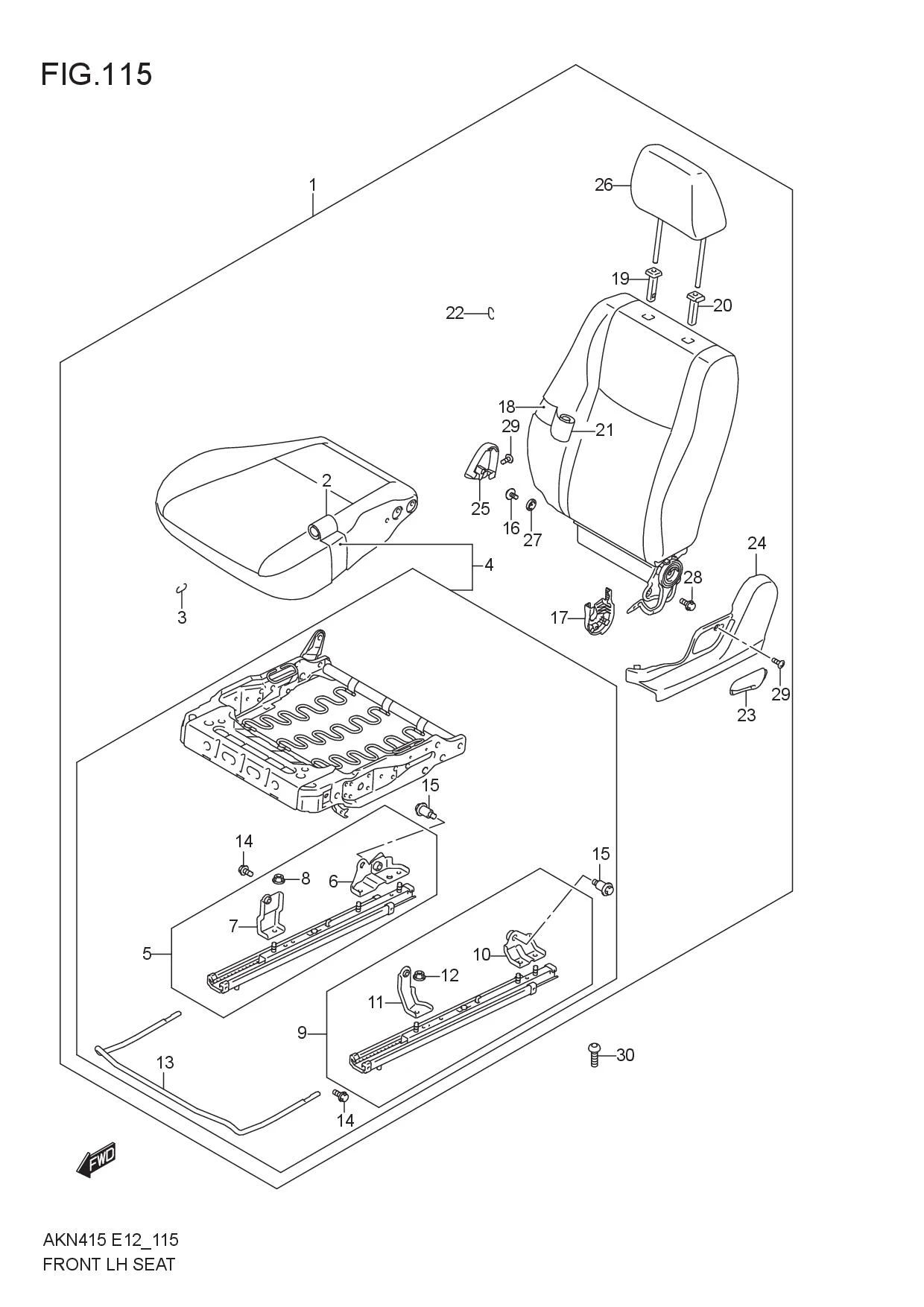

FR LH SEAT

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-1	85680M65M40-BEU	TRIM , FR CUSH, L	1	Rp1.038.500	TYPE-1
1-2	85680M65ML0-BFB	TRIM , FR CUSH, L	1	Rp2.863.000	TYPE-2
2	09387-19001-000	RING, TRIM	13	Rp9.000
3	85106M79M00-000	CUSHION S/ASSY, FR, L	1	Rp2.657.500
4	86602M79M01-000	.ADJUSTER SUB ASSY, FR INSIDE, L	1	Rp773.000
5	86762M79M00-000	..RISER , RR INSIDE, L	1	Rp50.500
6	86771M74L00-000	..RISER, FR INSIDE, L	1	Rp19.000
7	08316-1008A-000	..NUT, RISER	3	Rp3.500
8	86604M79M00-000	.ADJUSTER SUB ASSY, FR OUT-SIDE, L	1	Rp752.000
9	86647M74LA0-000	..RISER, RR OUTSIDE, L	1	Rp45.500
10	86760M74L00-000	..RISER , FR OUTSIDE, L	1	Rp16.000
11	08316-1008A-000	..NUT, RISER	3	Rp3.500
12	86691M74L00-000	.HANDLE, FR SEAT ADJUSTER	1	Rp128.500
13	01550-0816A-000 SUB: 01550B0816AN000	.BOLT, FR RISER	2	Rp6.000
14	01550-1016A-000 SUB: 01550B1016AN000	.BOLT, RR RISER	2	Rp5.500
15	85295-58J01-000	.BOLT, FR BACK	1	Rp34.000
16	85242-75L00-5PK	COVER, FR BACK FRAME, L	1	Rp921.000
17	85306M79M10-000	BACK S/ASSY, FR, L	1	Rp1.131.000
18	85341M79M10-5PK	GUIDE, HEADRESTRAINT	1	Rp9.500
19	85840M79M20-5PK	GUIDE , HEADRESTRAINT	1	Rp11.000
20-1	85880M65M40-BEU	TRIM , FR BACK, L	1	Rp860.000	TYPE-1
20-2	85880M65ML0-BFB	TRIM , FR BACK, L	1	Rp2.449.500	TYPE-2
21	09387-19001-000	RING, TRIM	23	Rp9.000
22	85711-68K00-5PK	KNOB, RCLNG, L	1	Rp299.500
23	85721M84M00-5PK	COVER, RCLNG OUTSIDE, L	1	Rp133.000
24	85741M79M10-5PK	COVER, FR HINGE INSIDE, L	1	Rp11.500
25-1	86401M79M10-B0W	HEADRESTRAINT ASSY	1	Rp403.000	TYPE-1
25-2	86401M79M40-B0V	HEADRESTRAINT ASSY	1	Rp638.500	TYPE-2
26	87286-58J10-000 SUB: 87286B58J10N000	BUSH, FR BACK FIX	1	Rp4.500
27	01550-1016A-000 SUB: 01550B1016AN000	BOLT, FR BACK	2	Rp5.500
28	03241-0510A-000	SCREW, RECL COVER	3	Rp8.000
29	09119M08106-000	BOLT, FR MTG	4	Rp8.500
