SX4 S-Cross M

Preview Engine Transmission Electrical Suspension Body

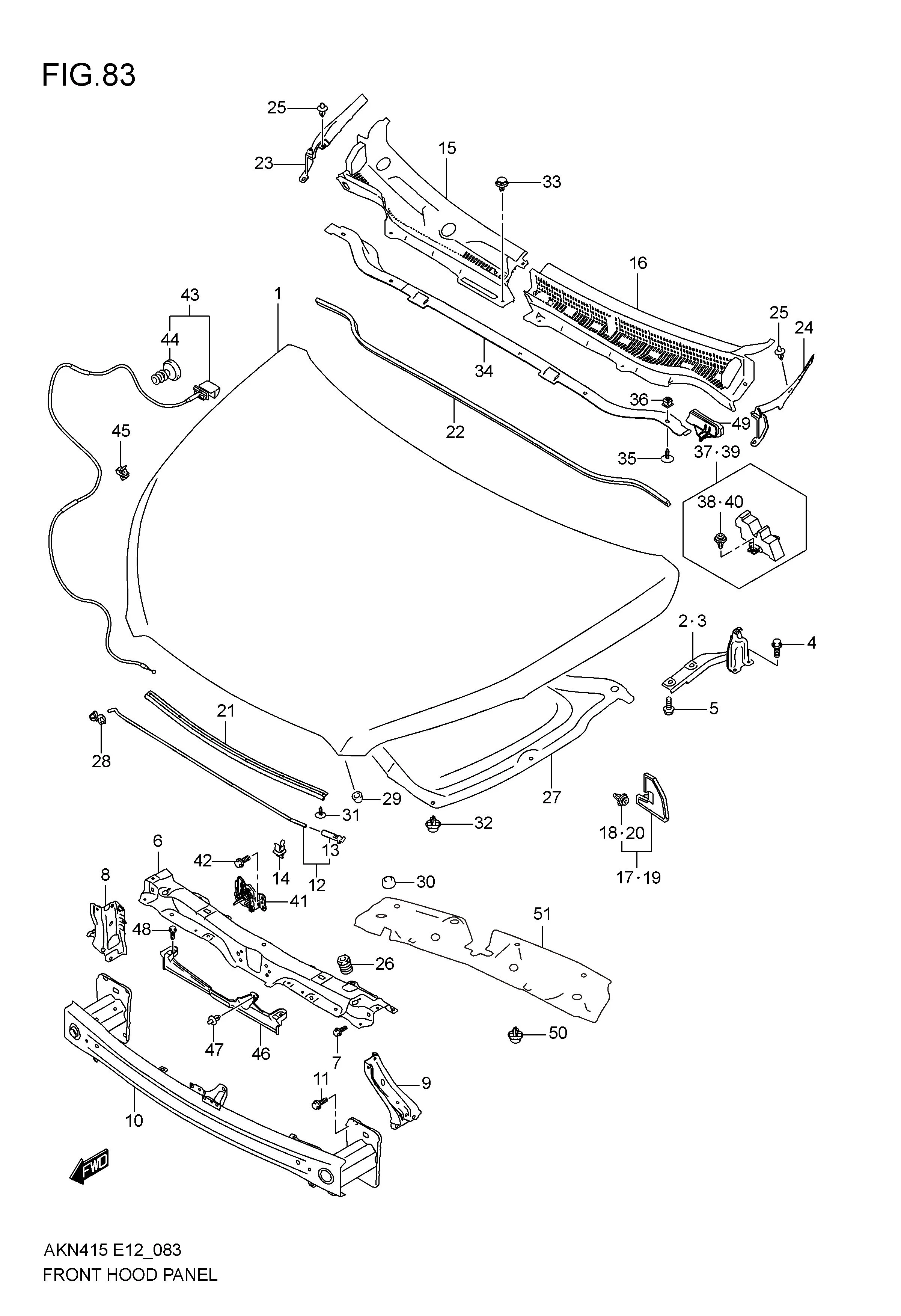

FRONT HOOD PANEL

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	57300M64MA0-000	PANEL, FRONT HOOD	1	Rp3.415.500	TYPE-2
2	57410M64M00-000	HINGE, FRONT HOOD, RH	1	Rp173.500
3	57420M64M00-000	HINGE, FRONT HOOD, LH	1	Rp173.500
4	01550-0612B-000	BOLT	4	Rp16.500
5	01550-0612B-000	BOLT	4	Rp16.500
6-1	58230M64M00-000	MEMBER, HOOD LOCK	1	Rp487.500	TYPE-1
6-2	58230M64MA0-000	MEMBER, HOOD LOCK	1	Rp420.000	TYPE-2
7	01550-0612B-000	BOLT	4	Rp16.500
8-1	58110M64M00-000	BRACE, LAMP SUPPORT,RH	1	Rp185.500	TYPE-1
8-2	58110M64MA0-000	BRACE, LAMP SUPPORT,RH	1	Rp106.000	TYPE-2
9-1	58120M64M00-000	BRACE, LAMP SUPPORT,LH	1	Rp185.500	TYPE-1
9-2	58120M64MA0-000	BRACE, LAMP SUPPORT,LH	1	Rp104.000	TYPE-2
10-2	58270M64MA0-000	MEMBER, FRONT BUMPER	1	Rp739.500	TYPE-2
10-1	58270M64M00-000	MEMBER, FRONT BUMPER	1	Rp2.175.000	TYPE-1
11	01551-0820A-000	BOLT	8	Rp17.500
12	72310M61M10-000	STAY, FRONT HOOD	1	Rp58.500
13	72312M61M00-000	.HOLDER, FRONT HOOD	1	Rp29.000
14	09403-07407-000	HOLDER, FRONT HOOD STAY	1	Rp18.000
15	72330M64M00-5PK	GARNISH, COWL TOP, RH	1	Rp256.500
16	72340M64M00-5PK	GARNISH, COWL TOP, LH	1	Rp296.500
17	72360M64M00-000	COVER, FRONT FENDER FR, RH	1	Rp91.500
18	09409M10321-000	.CLIP	1	Rp5.000
19	72370M64M00-000	COVER, FRONT FENDER FR, LH	1	Rp91.500
20	09409M10321-000	.CLIP	1	Rp5.000
21-1	72361M61M00-000	SEAL, HOOD FRONT	1	Rp39.000	TYPE-1
21-2	72361M64MA0-000	SEAL, HOOD FRONT	1	Rp46.500	TYPE-2
22	72362M61M00-000	SEAL, HOOD REAR	1	Rp66.500
23	72334M64M00-5PK	COVER, FRONT FENDER TOP, RH	1	Rp15.000
24	72344M64M00-5PK	COVER, FRONT FENDER TOP, LH	1	Rp15.000
25	09409M07L02-000	CLIP	2	Rp5.500
26	72372M70F10-000	CUSHION, FRONT HOOD FRONT SIDE	2	Rp6.000
27	72440M64M00-000	SILENCER, FRONT HOOD	1	Rp441.500
28	09209-14001-000	LINKAGE, FR HOOD STAY	1	Rp21.000
29	82711-65J00-000	CUSHION, FRONT HOOD FRONT	2	Rp34.000
30	09321-10023-000 SUB: 09321B10023N000	CUSHION, FRONT HOOD REAR	2	Rp6.000
31	09409-10304-000	CLIP	6	Rp5.000
32	09409M07L01-000	CLIP	9	Rp5.000
33	09409M08006-000 SUB: 09409M08L01-000	CLIP	6	Rp5.000
34	72363M61M00-000	EXTENSION, HOOD SEAL REAR	1	Rp123.000
35	09136-06171-000	SCREW	6	Rp20.500
36	71851M70F00-000	NUT	6	Rp4.000
37	72364M64M00-000	SEAL, COWL SIDE, RH	1	Rp142.500
38	09409M10L03-000	.CLIP	1	Rp5.500
39	72368M64M00-000	SEAL, COWL SIDE,LH	1	Rp142.500
40	09409M10L03-000	.CLIP,COWL SIDE SEAL	1	Rp5.500
41-1	82110M64M01-000 SUB: 82110M64M00-000	LATCH, HOOD	1	Rp149.000	TYPE-1
41-2	82110M64MA0-000	LATCH, HOOD	1	Rp90.500	TYPE-2
42	02162-0616A-000	BOLT	3	Rp3.000
43-1	82160M64M01-000	CABLE, HOOD LATCH RELEASE	1	Rp107.500	TYPE-1
43-2	82160M64MA0-000	CABLE, HOOD LATCH RELEASE	1	Rp84.500	TYPE-2
44	82191-50E00-000	.GROMMET, LATCH RELEASE	1	Rp41.500
45	76238M70F00-000	CLAMP, RELEASE CABLE FRONT	4	Rp5.000
46	82171M64M00-000	COVER, HOOD RELEASE CABLE	1	Rp48.500
47	09409M06314-000	.CLIP	1	Rp5.500
48	02162-0616A-000	BOLT	2	Rp3.000
49	72342M64M10-000	COVER,COWL TOP	1	Rp25.000
50	09409M07L01-000	CLIP,HOOD LOCK MEMBER COVER	8	Rp5.000	TYPE-2
51	72371M64R00-000	COVER,HOOD LOCK MEMBER	1	Rp107.000	TYPE-2
