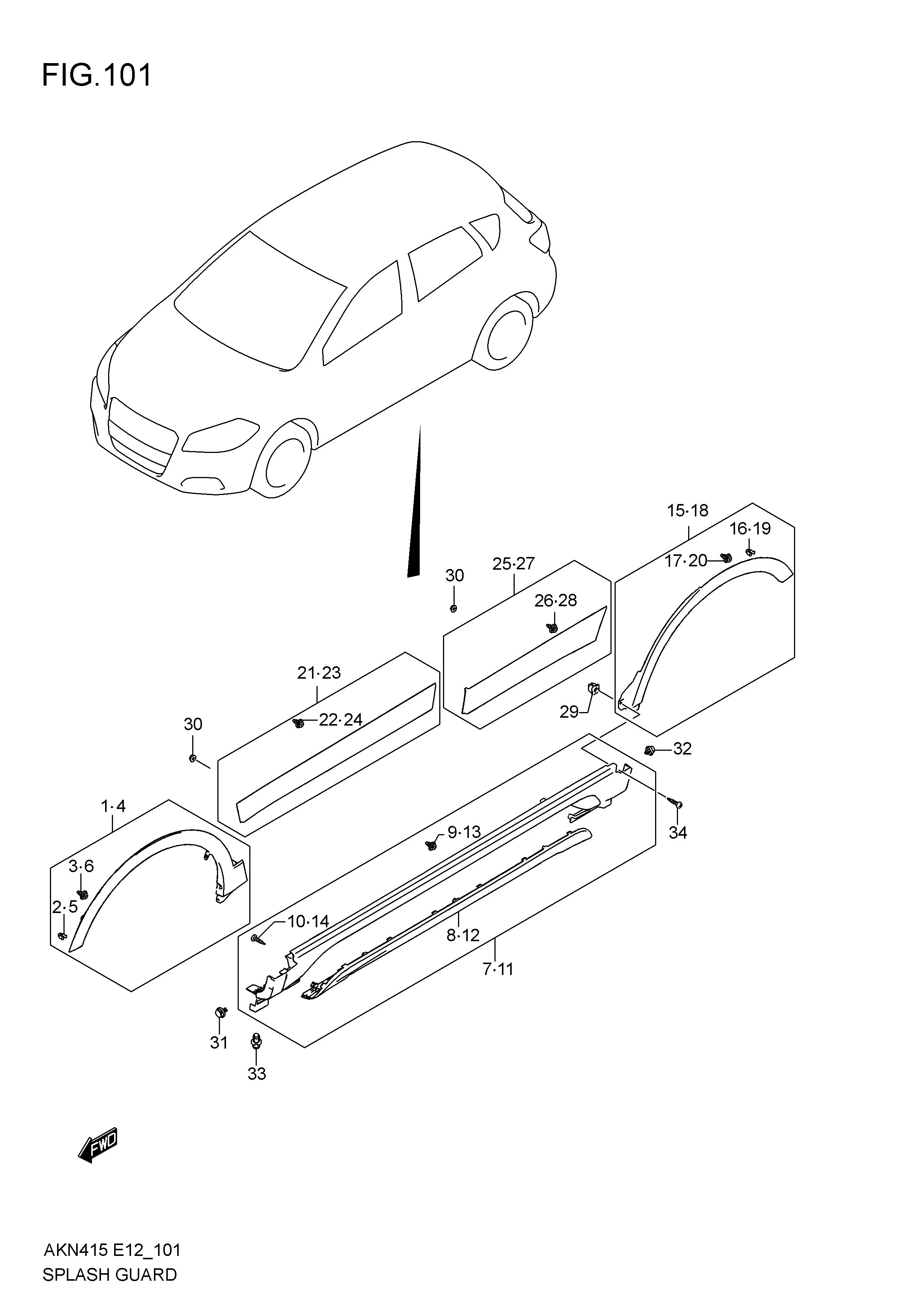

SPLASH GUARD

SPLASH GUARD
No No. Part Description Qty Price Per Pcs Remarks
1-1 77210M64M00-5PK GUARD ASSY, FR FENDER SPLASH, R 1 Rp181.500 TYPE-1
1-2 77210M64MA0-5PK GUARD ASSY, FR FENDER SPLASH, R 1 Rp187.000 TYPE-2
2 09409M08344-000 .CLIP 1 Rp4.500
3 09409M10321-000 .CLIP 7 Rp5.000
4-1 77220M64M00-5PK GUARD ASSY, FR FENDER SPLASH, L 1 Rp181.500 TYPE-1
4-2 77220M64MA0-5PK GUARD ASSY, FR FENDER SPLASH, L 1 Rp187.000 TYPE-2
5 09409M08344-000 .CLIP 1 Rp4.500
6 09409M10321-000 .CLIP 7 Rp5.000
7 77230M64M11-ASK
SUB: 77230M64M10-ASK		 GUARD ASSY, SIDE SILL SPLASH, R 1 Rp760.500
8 77232M61M10-PER .GARNISH, SIDE SILL SPLASH, R 1 Rp186.500
9 71812M78F00-000 .CLIP, SIDE SILL GUARD 6 Rp8.000
10 03541-0416A-000 .SCREW 5 Rp3.500
11 77240M64M11-ASK
SUB: 77240M64M10-ASK		 GUARD ASSY, SIDE SILL SPLASH, L 1 Rp760.500
12 77242M61M10-PER .GARNISH, SIDE SILL SPLASH, L 1 Rp182.500
13 71812M78F00-000 .CLIP, SIDE SILL GUARD 6 Rp8.000
14 03541-0416A-000 .SCREW 5 Rp3.500
15 77250M64M00-5PK GUARD ASSY, RR FENDER SPLASH, R 1 Rp155.000
16 09409M08344-000 .CLIP 1 Rp4.500
17 09409M10321-000 .CLIP 5 Rp5.000
18 77260M64M00-5PK GUARD ASSY, RR FENDER SPLASH, L 1 Rp155.000
19 09409M08344-000 .CLIP 1 Rp4.500
20 09409M10321-000 .CLIP 5 Rp5.000
21 77510M64M00-5PK GUARD ASSY, FR DOOR SPLASH, R 1 Rp202.000
22 09409M10321-000 .CLIP 10 Rp5.000
23 77520M64M00-5PK GUARD ASSY, FR DOOR SPLASH, L 1 Rp202.000
24 09409M10321-000 .CLIP 10 Rp5.000
25 77530M64M00-5PK GUARD ASSY, RR DOOR SPLASH, R 1 Rp186.500
26 09409M10321-000 .CLIP 7 Rp5.000
27 77540M64M00-5PK GUARD ASSY, RR DOOR SPLASH, L 1 Rp186.500
28 09409M10321-000 .CLIP 7 Rp5.000
29 09148-05044-000 NUT 4 Rp18.000
30 09159-05052-000 NUT 8 Rp18.000
31 09409M07L01-000 CLIP 8 Rp5.000
32 09409M07L01-000 CLIP 2 Rp5.000
33 09409M15L01-000 CLIP 12 Rp5.500
34 03511-0512E-000 SCREW 4 Rp18.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
