SWIFT RS415 CKD

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.61 FRONT SUSPENSION FIG.62 FRONT STABILIZER FIG.63 FRONT DRIVE SHAFT (MT)FIG.64 FRONT DRIVE SHAFT (AT)FIG.65 FRONT WHEEL HUB FIG.66 FRONT SUSPENSION FRAME FIG.67 REAR SUSPENSION FIG.68 ROAD WHEEL/TIRE FIG.69 STEERING WHEEL FIG.70 STEERING COLUMN FIG.71 STEERING UNIT FIG.72 PEDAL/PEDAL BRACKET (MT)FIG.73 PEDAL/PEDAL BRACKET (AT)FIG.74 BRAKE MASTER CYLINDER FIG.75 BRAKE PIPING FIG.76 FRONT WHEEL BRAKE FIG.77 REAR WHEEL BRAKE FIG.78 PARKING BRAKE

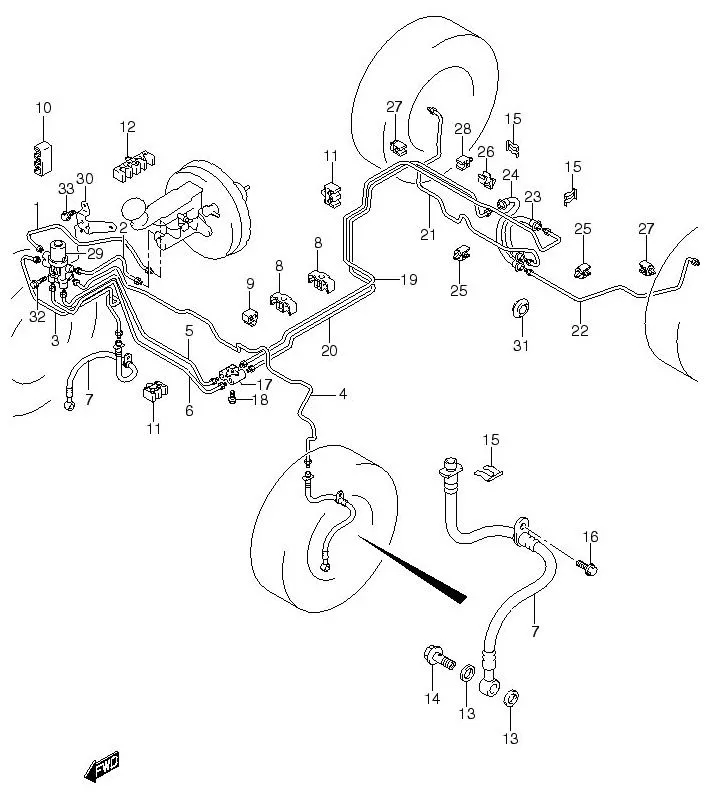

FIG.75 BRAKE PIPING

No	No. Part	Description	Qty	Price Per Pcs
1	DISCONTINUE SUB: 51410-63J20-000	PIPE, MA PRI TO UNIT	1	-
2	DISCONTINUE SUB: 51420-63J20-000	PIPE, MA SEC TO UNIT	1	-
3	51430-63J20-000	PIPE, UNIT TO FR BK HOSE RH	1	Rp260.500
4	DISCONTINUE SUB: 51440-63J20-000	PIPE, UNIT TO FR BK HOSE LH	1	-
5	DISCONTINUE SUB: 51450-63J20-000	PIPE, UNIT TO JOINT RH	1	-
6	DISCONTINUE SUB: 51460-63J20-000	PIPE, UNIT TO JOINT LH	1	-
7	51550-63J01-000	HOSE, FR BRAKE FLEXIBLE	2	Rp438.000
8	51751-77M10-000 SUB: 51751-76G00-000	CLAMP, BRAKE PIPE FLOOR	3	Rp5.500
9	51752-77M00-000 SUB: 51752-70B00-000	CLAMP, BRAKE PIPE DASH	3	Rp5.500
10	51753M74G60-000	CLAMP, BRAKE PIPE UNIT	1	Rp34.500
11	51761-62J20-000	CLAMP, BRAKE PIPE FRAME	5	Rp32.000
12	51761-77M10-000 SUB: 51761-62J40-000	CLAMP, BRAKE PIPE 4	1	Rp6.500
13	09161-10009-000	WASHER (10X15X1.5)	4	Rp12.500
14	09360-10026-000	UNION BOLT	2	Rp25.000
15	09383M13004-000 SUB: 09383-13003-000	E RING	6	Rp7.000
16	01551-0816C-000	BOLT	2	Rp13.500
17	DISCONTINUE SUB: 51630B82040N000	JOINT, BRAKE 4 WAY	1	-
18	02162-0625A-000	BOLT	1	Rp3.500
19	DISCONTINUE SUB: 51470-63J00-000	PIPE, JOINT TO RR BK HOSE RH	1	-
20	DISCONTINUE SUB: 51480-63J00-000	PIPE, JOINT TO RR BK HOSE LH	1	-
21	DISCONTINUE SUB: 51510-63J01-000	PIPE, RR BK HOSE TO WHL CYL RH	1	-
22	DISCONTINUE SUB: 51520-63J20-000	PIPE, RR BK HOSE TO WHL CYL LH	1	-
23	DISCONTINUE SUB: 51570-63J00-000	HOSE, RR BRAKE FLEXIBLE RH	1	-
24	DISCONTINUE SUB: 51580-63J00-000	HOSE, RR BRAKE FLEXIBLE LH	1	-
25	51761-62J10-000	CLAMP, BRAKE PIPE AXLE	2	Rp33.500
26	DISCONTINUE SUB: 51761-62J60-000	CLAMP, BRAKE PIPE X MBR	1	-
27	51761-77M00-000 SUB: 51761-62J70-000	CLAMP, BRAKE PIPE AXLE	2	Rp5.500
28	DISCONTINUE SUB: 09403-06317-000	CLAMP, BRAKE PIPE X MBR	2	-
29	51910M60GA2-000 SUB: 51910M860A0-000	VALVE ASSY, PROPOTIONING	1	Rp956.000
30	DISCONTINUE SUB: 51952M75J00-000	BRACKET, VALVE ASSY	1	-
31	09250-16015-000 SUB: 09250B16015N000	CAP	2	Rp3.500
32	01550-0635A-000 SUB: 01550B0635AN000	BOLT	1	Rp3.000
33	01550-0812A-000 SUB: 01550B0812AN000	BOLT	2	Rp3.500
