SWIFT RS415 CKD

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.61 FRONT SUSPENSION FIG.62 FRONT STABILIZER FIG.63 FRONT DRIVE SHAFT (MT)FIG.64 FRONT DRIVE SHAFT (AT)FIG.65 FRONT WHEEL HUB FIG.66 FRONT SUSPENSION FRAME FIG.67 REAR SUSPENSION FIG.68 ROAD WHEEL/TIRE FIG.69 STEERING WHEEL FIG.70 STEERING COLUMN FIG.71 STEERING UNIT FIG.72 PEDAL/PEDAL BRACKET (MT)FIG.73 PEDAL/PEDAL BRACKET (AT)FIG.74 BRAKE MASTER CYLINDER FIG.75 BRAKE PIPING FIG.76 FRONT WHEEL BRAKE FIG.77 REAR WHEEL BRAKE FIG.78 PARKING BRAKE

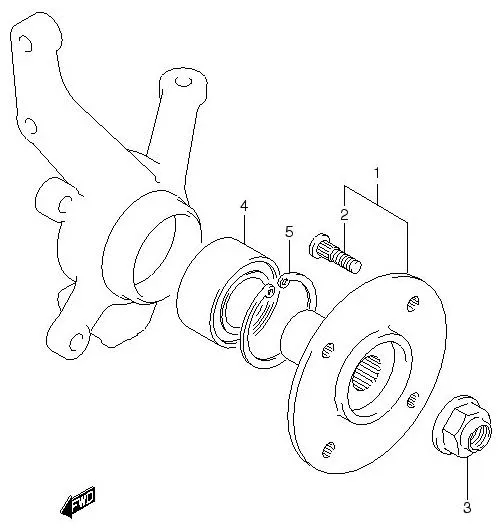

FIG.65 FRONT WHEEL HUB

FIG.65 FRONT WHEEL HUB

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	43420-50853-000 SUB: 43420-50852-000	HUB, FRONT WHEEL	2	Rp1.377.500
2	09119-12012-000	BOLT (12X38)	8	Rp14.500
3	09159-18024-000 SUB: 09159-18021-000	NUT	2	Rp74.500
4	43440-54G02-000	BEARING, FRONT WHEEL	2	Rp1.008.500
5	09381-72002-000	RING, SNAP	2	Rp56.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
