SWIFT RS415 CKD

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.61 FRONT SUSPENSIONFIG.62 FRONT STABILIZERFIG.63 FRONT DRIVE SHAFT (MT)FIG.64 FRONT DRIVE SHAFT (AT)FIG.65 FRONT WHEEL HUBFIG.66 FRONT SUSPENSION FRAMEFIG.67 REAR SUSPENSIONFIG.68 ROAD WHEEL/TIREFIG.69 STEERING WHEELFIG.70 STEERING COLUMNFIG.71 STEERING UNITFIG.72 PEDAL/PEDAL BRACKET (MT)FIG.73 PEDAL/PEDAL BRACKET (AT)FIG.74 BRAKE MASTER CYLINDERFIG.75 BRAKE PIPINGFIG.76 FRONT WHEEL BRAKEFIG.77 REAR WHEEL BRAKEFIG.78 PARKING BRAKE

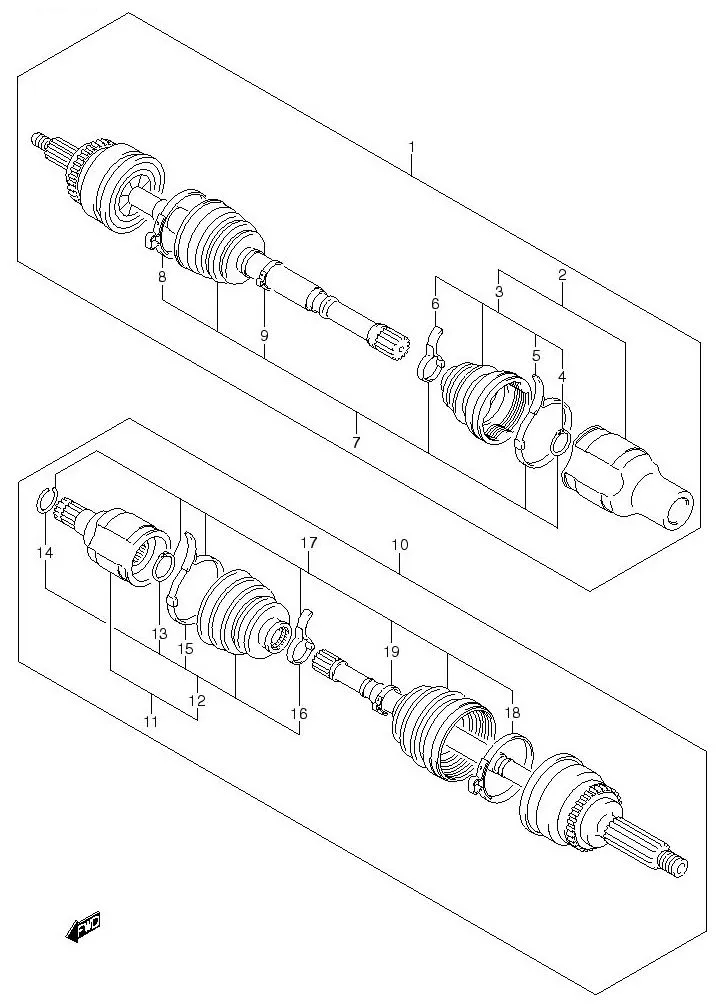

FIG.64 FRONT DRIVE SHAFT (AT)

FIG.64 FRONT DRIVE SHAFT (AT)
No No. Part Description Qty Price Per Pcs Remarks
1 44101-63J23-000
SUB: 44101-63J21-000		 SHAFT ASSY, FRONT DRIVE RH 1 Rp7.313.500
2 44117-63J24-000
SUB: 44117-63J21-000		 JOINT ASSY, DIFF SIDE 1 Rp6.498.000
3 44120-63J02-000
SUB: 44119-63J00-000		 BOOT SET 1 Rp1.062.500
4 DISCONTINUE
SUB: 44111-63J00-000		 RING, SNAP 1 -
5 44122-84110-000 BAND, BOOT 1 Rp72.500
6 DISCONTINUE
SUB: 44123-53B10-000		 BAND, BOOT 1 -
7 44118-63J63-000
SUB: 44118-63J60-000		 BOOT SET, WHEEL SIDE 1 Rp1.090.000
8 DISCONTINUE
SUB: 44112-63J00-000		 BAND, BOOT 1 -
9 DISCONTINUE
SUB: 44121-54G90-000		 BAND, BOOT 1 -
10 44102-63J33-000
SUB: 44102-63J31-000		 SHAFT ASSY, FRONT DRIVE LH 1 Rp6.870.500
11 44117-63J34-000
SUB: 44117-63J31-000		 JOINT ASSY, DIFF SIDE 1 Rp5.189.000
12 44119-63J14-000
SUB: 44119-63J11-000		 BOOT SET 1 Rp1.040.500
13 DISCONTINUE
SUB: 44111-63J00-000		 RING, SNAP 1 -
14 44111-80J10-000 CIRCLIP 1 Rp35.000
15 44122-84110-000 BAND, BOOT 1 Rp72.500
16 DISCONTINUE
SUB: 44123-53B10-000		 BAND, BOOT 1 -
17 44118-63J14-000
SUB: 44118-63J11-000		 BOOT SET, WHEEL SIDE 1 Rp1.136.500
18 DISCONTINUE
SUB: 44112-63J00-000		 BAND, BOOT 1 -
19 DISCONTINUE
SUB: 44121-54G90-000		 BAND, BOOT 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
