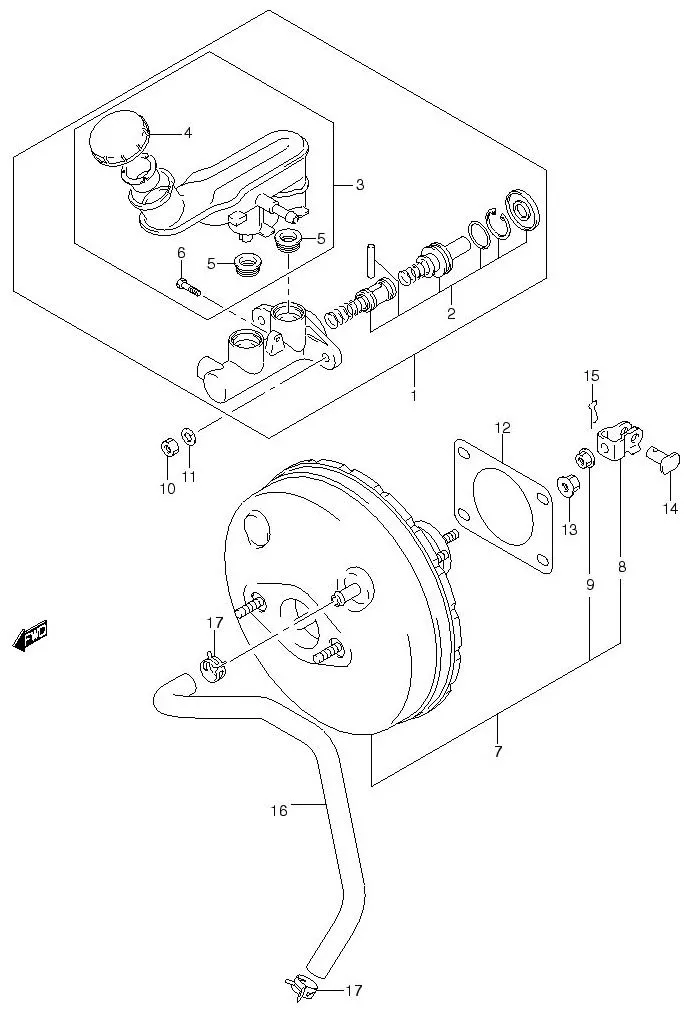

FIG.74 BRAKE MASTER CYLINDER

FIG.74 BRAKE MASTER CYLINDER
No No. Part Description Qty Price Per Pcs Remarks
1-2 51100-63J11-000
SUB: 51100-63J10-000		 CYLINDER ASSY, BRAKE MASTER 1 Rp3.149.500 AT
1-1 51100-63J01-000
SUB: 51100-63J00-000		 CYLINDER ASSY, BRAKE MASTER 1 Rp3.056.000 MT
2 51810-63J02-000
SUB: 51810-63J00-000		 PISTON SET, BRAKE MASTER 1 Rp1.117.000
3-1 DISCONTINUE
SUB: 51200-63J00-000		 RESERVOIR ASSY, BRAKE MASTER 1 - MT
3-2 DISCONTINUE
SUB: 51200-63J10-000		 RESERVOIR ASSY, BRAKE MASTER 1 - AT
4 51220-61J00-000 CAP, RESERVOIR 1 Rp31.500
5 51232-61J00-000 GROMMET, RSVR CONNECTOR 2 Rp21.000
6 DISCONTINUE
SUB: 51233-63J00-000		 BOLT, RESERVOIR 1 -
7 51300-57K40-000 BOOSTER ASSY, BARKE MASTER 1 Rp4.366.500
8 DISCONTINUE
SUB: 51182-63J10-000		 CLEVICE, PUSH ROD 1 -
9 51315-61J00-000 NUT 1 Rp6.000
10 51313-61J00-000 NUT 2 Rp6.500
11 DISCONTINUE
SUB: 51314-61J00-000		 SPRING WASHER 2 -
12 51132-82003-000 PACKING, BRAKE MASTER CYLINDER 1 Rp33.000
13 09159-08127-000 NUT 4 Rp11.000
14 DISCONTINUE
SUB: 09200-08048-000		 PIN 1 -
15 09385-08007-000 SNAP PIN 1 Rp16.500
16 51010-63J00-000 HOSE, BRAKE VACUUM 1 Rp280.000
17 09401-15404-000 CLIP 2 Rp14.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
