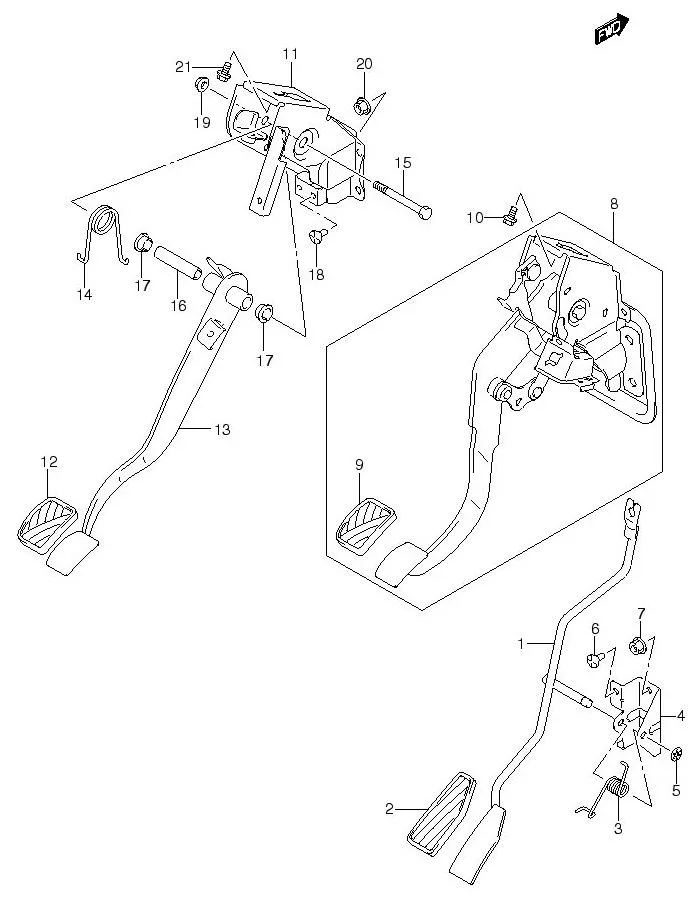

FIG.72 PEDAL/PEDAL BRACKET (MT)

FIG.72 PEDAL/PEDAL BRACKET (MT)
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 49410-73K00-000		 PEDAL, ACCELERATOR 1 -
2 49451M60B00-000 PAD, ACCELERATOR PEDAL 1 Rp12.500
3 DISCONTINUE
SUB: 49491-63J00-000		 SPRING, ACCELERATOR PEDAL 1 -
4 DISCONTINUE
SUB: 49511-73K00-000		 BRACKET, ACCELERATOR PEDAL 1 -
5 DISCONTINUE
SUB: 09148-09001-000		 NUT 1 -
6 09321M06026-000 CUSHION 1 Rp4.500
7 09159-06076-000 NUT 2 Rp19.500
8 DISCONTINUE
SUB: 49600-63J01-000		 PEDAL ASSY, BRAKE 1 -
9 49751M58J00-000 PAD, PEDAL 1 Rp9.500
10 01551-0816C-000 BOLT 1 Rp13.500
11 DISCONTINUE
SUB: 49720-63J20-000		 BRACKET, CLUTCH PEDAL 1 -
12 49751M58J00-000 PAD, PEDAL 1 Rp9.500
13 DISCONTINUE
SUB: 49810-63J21-000		 PEDAL, CLUTCH 1 -
14 DISCONTINUE
SUB: 49891-63J00-000		 SPRING, CLUTCH PEDAL 1 -
15 09100-10226-000 BOLT (10X85) 1 Rp19.500
16 09180-10121-000 SPACER (10.1X13X73.8) 1 Rp38.500
17 09306M13004-000
SUB: 09307M13005-000		 BUSH 2 Rp11.500
18 09321M06026-000 CUSHION 1 Rp4.500
19 08316-1010A-000
SUB: 08316B1010AN000		 NUT 1 Rp3.500
20 09159-08127-000 NUT 2 Rp11.000
21 01551-0816C-000 BOLT 1 Rp13.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
