SWIFT RS415 CKD

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.61 FRONT SUSPENSION FIG.62 FRONT STABILIZER FIG.63 FRONT DRIVE SHAFT (MT)FIG.64 FRONT DRIVE SHAFT (AT)FIG.65 FRONT WHEEL HUB FIG.66 FRONT SUSPENSION FRAME FIG.67 REAR SUSPENSION FIG.68 ROAD WHEEL/TIRE FIG.69 STEERING WHEEL FIG.70 STEERING COLUMN FIG.71 STEERING UNIT FIG.72 PEDAL/PEDAL BRACKET (MT)FIG.73 PEDAL/PEDAL BRACKET (AT)FIG.74 BRAKE MASTER CYLINDER FIG.75 BRAKE PIPING FIG.76 FRONT WHEEL BRAKE FIG.77 REAR WHEEL BRAKE FIG.78 PARKING BRAKE

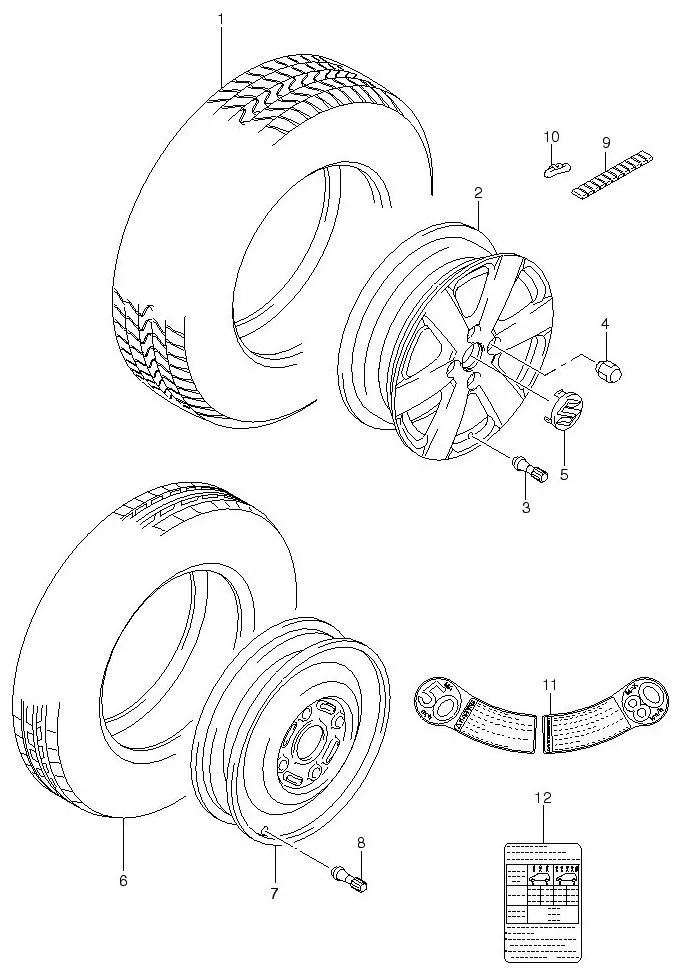

FIG.68 ROAD WHEEL/TIRE

No	No. Part	Description	Qty	Price Per Pcs
1	DISCONTINUE SUB: 43110B63J50N000	TIRE (185/60R15 84H)	4	-
2	DISCONTINUE SUB: 43210B72K10N000	WHEEL, AL (15X5 1/2J)	4	-
3	43130-60E10-000	VALVE (TR414)	4	Rp57.000
4	09159-12051-000	NUT (L28)	16	Rp46.000
5	43252-83S00-CZ2 SUB: 43252-63J10-CZ2	CAP, WHEEL CENTER (SILVER)	4	Rp184.500
6	DISCONTINUE SUB: 43180-60G11-000	TIRE, SPARE (T125/70D15) (FALKEN)	1	-
7	DISCONTINUE SUB: 43290-63J20-000	WHEEL, SPARE (15X4T)	1	-
8	43130-60E10-000	VALVE (TR414)	1	Rp57.000
9-7	43221-59J60-000	WEIGHT, WHEEL BALANCE (35G)	0	Rp52.500
9-10	43221-59J90-000	WEIGHT, WHEEL BALANCE (50G)	0	Rp60.000
9-9	43221-59J80-000	WEIGHT, WHEEL BALANCE (45G)	0	Rp57.000
9-8	43221-59J70-000	WEIGHT, WHEEL BALANCE (40G)	0	Rp54.500
9-6	43221-59J50-000	WEIGHT, WHEEL BALANCE (30G)	0	Rp49.500
9-5	43221-59J40-000	WEIGHT, WHEEL BALANCE (25G)	0	Rp47.000
9-4	43221-59J30-000	WEIGHT, WHEEL BALANCE (20G)	0	Rp44.000
9-3	43221-59J20-000	WEIGHT, WHEEL BALANCE (15G)	0	Rp42.000
9-2	43221-59J10-000	WEIGHT, WHEEL BALANCE (10G)	0	Rp40.000
9-1	43221-59J00-000	WEIGHT, WHEEL BALANCE (5G)	0	Rp32.000
10-1	43221-73H10-000	WEIGHT, WHEEL BALANCE (5G)	0	Rp33.000
10-2	DISCONTINUE SUB: 43222-73H10-000	WEIGHT, WHEEL BALANCE (10G)	0	-
10-3	DISCONTINUE SUB: 43223-73H10-000	WEIGHT, WHEEL BALANCE (15G)	0	-
10-4	DISCONTINUE SUB: 43224-73H10-000	WEIGHT, WHEEL BALANCE (20G)	0	-
10-5	DISCONTINUE SUB: 43225-73H10-000	WEIGHT, WHEEL BALANCE (25G)	0	-
10-6	DISCONTINUE SUB: 43226-73H10-000	WEIGHT, WHEEL BALANCE (30G)	0	-
10-7	DISCONTINUE SUB: 43227-73H10-000	WEIGHT, WHEEL BALANCE (35G)	0	-
10-8	DISCONTINUE SUB: 43228-73H10-000	WEIGHT, WHEEL BALANCE (40G)	0	-
10-9	DISCONTINUE SUB: 43231-54G10-000	WEIGHT, WHEEL BALANCE (45G)	0	-
11	DISCONTINUE SUB: 79167B60B12N000	PLACARD, SPARE TIRE	1	-
12	DISCONTINUE SUB: 79161-63J90-000	PLACARD, TIRE INFORMATION	1	-
