SWIFT RS415 CKD

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.61 FRONT SUSPENSION FIG.62 FRONT STABILIZER FIG.63 FRONT DRIVE SHAFT (MT)FIG.64 FRONT DRIVE SHAFT (AT)FIG.65 FRONT WHEEL HUB FIG.66 FRONT SUSPENSION FRAME FIG.67 REAR SUSPENSION FIG.68 ROAD WHEEL/TIRE FIG.69 STEERING WHEEL FIG.70 STEERING COLUMN FIG.71 STEERING UNIT FIG.72 PEDAL/PEDAL BRACKET (MT)FIG.73 PEDAL/PEDAL BRACKET (AT)FIG.74 BRAKE MASTER CYLINDER FIG.75 BRAKE PIPING FIG.76 FRONT WHEEL BRAKE FIG.77 REAR WHEEL BRAKE FIG.78 PARKING BRAKE

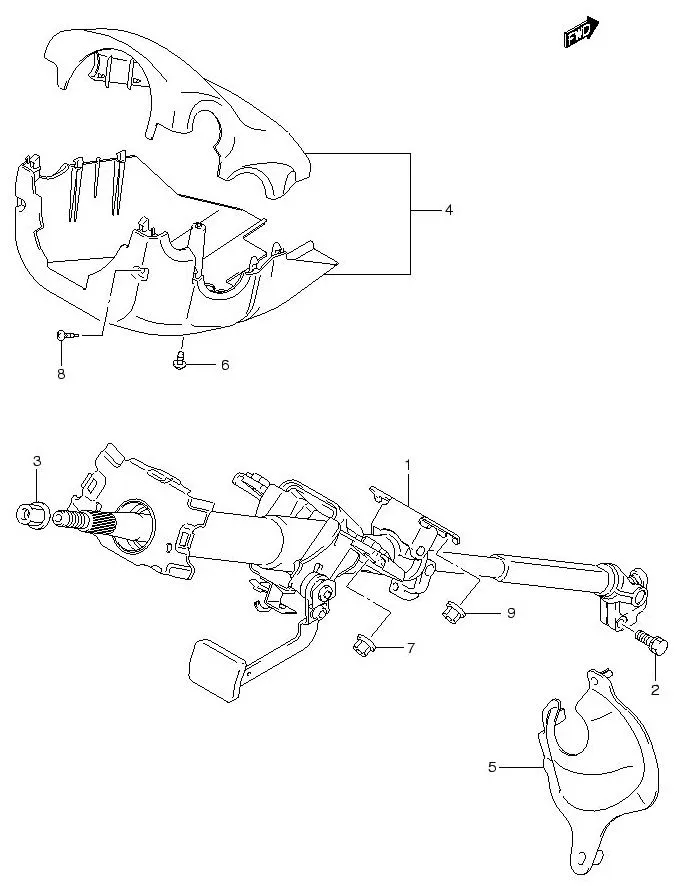

FIG.70 STEERING COLUMN

FIG.70 STEERING COLUMN

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	DISCONTINUE SUB: 48200-62J10-000	COLUMN ASSY, COLPS STEERING	1	-
2	09117-08053-000	BOLT (8X30)	1	Rp27.000
3	08316-1012A-000 SUB: 08316B1012AN000	NUT	1	Rp6.500
4	48400-62J00-P4Z	COVER ASSY, STEERING COLUMN (GRAY)	1	Rp431.000
5	48481M63J00-P4Z SUB: 48481M63J00-000	COVER, STEERING JOINT	1	Rp21.000
6	09136M05030-000	SCREW (5X12)	1	Rp4.500
7	09159-08127-000 SUB: 09159-08135-000	NUT	2	Rp13.500
8	03211M0512A-000	SCREW	2	Rp4.500
9	08316-1008A-000 SUB: 08316B1008AN000	NUT	2	Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
