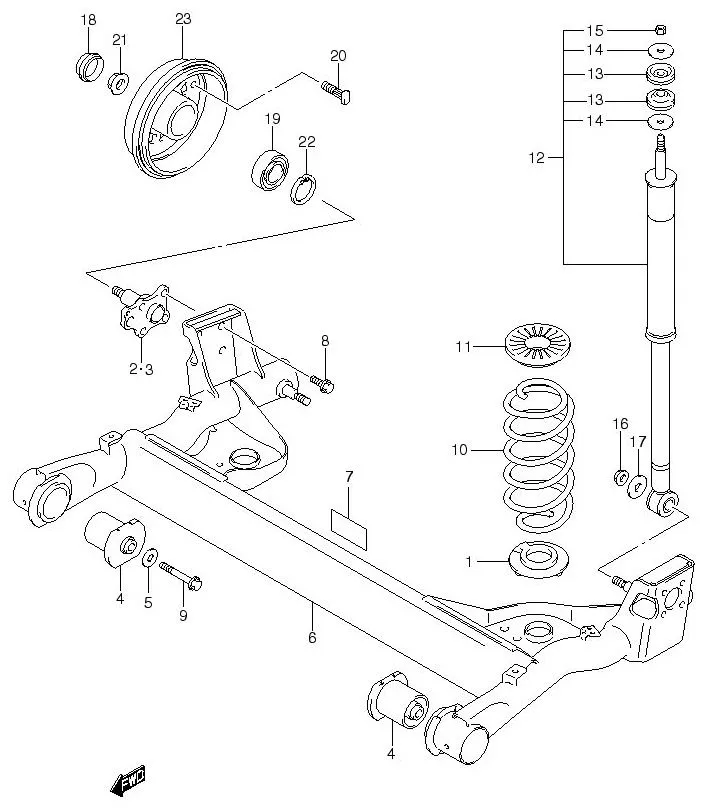

FIG.67 REAR SUSPENSION

FIG.67 REAR SUSPENSION
No No. Part Description Qty Price Per Pcs Remarks
1 41312-63J00-000
SUB: 41312B63J00N000		 SEAT, REAR SPRING RUBBER 2 Rp61.000
2 DISCONTINUE
SUB: 46111-63J20-000		 SPINDLE, REAR RH 1 -
3 DISCONTINUE
SUB: 46151-63J20-000		 SPINDLE, REAR LH 1 -
4 46221-63J00-000 BUSHING, TRAILING ARM 2 Rp783.500
5 46222M63J00-000 WASHER, TRAILING ARM 2 Rp13.500
6 46510-63J04-000 AXLE, REAR 1 Rp7.960.000
7 DISCONTINUE
SUB: 79271-63J00-000		 LABEL, AXLE 1 -
8 09103-12080-000 BOLT (12X30) 8 Rp36.500
9 09135-12015-000 BOLT (12X115) 2 Rp65.500
10 41311-63J10-000
SUB: 41311B63J10N000		 SPRING, REAR COIL 2 Rp1.153.000
11 41341M63J00-000 SEAT, REAR SPRING UPPER 2 Rp28.500
12 41800-63J02-000 ABSORBER ASSY, REAR SHOCK 2 Rp1.841.500
13 41812-63J00-000 BUSHING, REAR SHK ABS UPPER 4 Rp109.000
14 DISCONTINUE
SUB: 41813-63J00-000		 WASHER, REAR SHK ABS UPPER 4 -
15 41814-63J00-000 NUT, REAR SHK ABS UPPER 2 Rp53.000
16 09159-12045-000 NUT 2 Rp22.000
17 09160-12109-000 WASHER (12.5X38X3.2) 2 Rp30.500
18 43241M68K00-000
SUB: 43241M79002-000		 CAP, SPINDLE 2 Rp14.500
19 46860-63J01-000
SUB: 46860B63J00N000		 BEARING, REAR WHEEL 2 Rp286.500
20 09119-12016-000 BOLT (12X33) 8 Rp27.000
21 09159-18022-000 NUT 2 Rp73.500
22 08331-41589-000
SUB: 08331-4158A-000		 CIRCLIP 2 Rp26.000
23 43511-63J00-000 DRUM, REAR BRAKE 2 Rp2.265.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
