SWIFT RS415 CKD

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.61 FRONT SUSPENSIONFIG.62 FRONT STABILIZERFIG.63 FRONT DRIVE SHAFT (MT)FIG.64 FRONT DRIVE SHAFT (AT)FIG.65 FRONT WHEEL HUBFIG.66 FRONT SUSPENSION FRAMEFIG.67 REAR SUSPENSIONFIG.68 ROAD WHEEL/TIREFIG.69 STEERING WHEELFIG.70 STEERING COLUMNFIG.71 STEERING UNITFIG.72 PEDAL/PEDAL BRACKET (MT)FIG.73 PEDAL/PEDAL BRACKET (AT)FIG.74 BRAKE MASTER CYLINDERFIG.75 BRAKE PIPINGFIG.76 FRONT WHEEL BRAKEFIG.77 REAR WHEEL BRAKEFIG.78 PARKING BRAKE

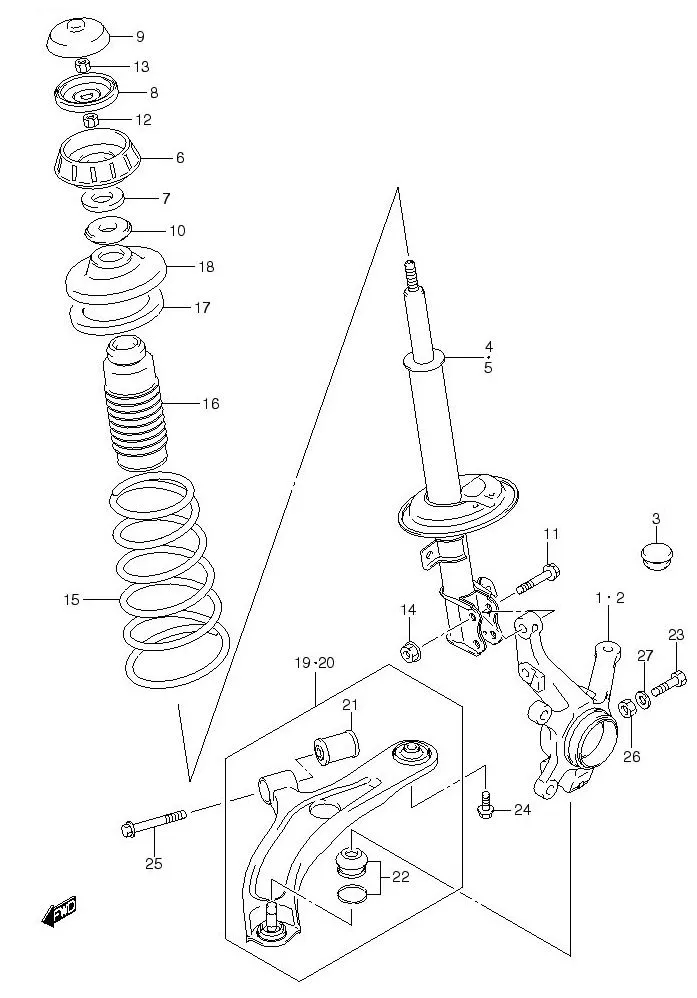

FIG.61 FRONT SUSPENSION

FIG.61 FRONT SUSPENSION
No No. Part Description Qty Price Per Pcs Remarks
1 45111-63J10-000 KNUCKLE, STEERING RH 1 Rp3.823.500
2 45151-63J10-000 KNUCKLE, STEERING LH 1 Rp3.823.500
3 DISCONTINUE
SUB: 09250-19001-000		 PLUG, KNUCKLE SENSOR HOLE 2 -
4 41601-63J12-000 STRUT ASSY, FR SUSPENSION RH 1 Rp2.645.000
5 41602-63J12-000 STRUT ASSY, FR SUSPENSION LH 1 Rp2.645.000
6 41710-71L01-000
SUB: 41710-63J11-000		 SUPPORT, FRONT STRUT 2 Rp654.500
7 41711M57K00-000 PLATE, STRUT BEARING 2 Rp10.500
8 41720-80J02-000
SUB: 41720-63J10-000		 STOPPER, FRONT STRUT REBOUND 2 Rp139.500
9 41724M63J00-000 CAP, STRUT ROD 2 Rp34.500
10 41742M57K10-000
SUB: 41742M57K00-000		 BEARING, FRONT STRUT 2 Rp81.000
11 09103-12118-000
SUB: 09103-12088-000		 BOLT (12X50) 4 Rp33.000
12 09140-12049-000 NUT 2 Rp18.000
13 08310M0012A-000 NUT 2 Rp5.000
14 08316-1012A-000
SUB: 09159-12064-000		 NUT 4 Rp6.500
15 41111-63J20-000
SUB: 41111B63J20N000		 SPRING, FRONT COIL 2 Rp1.153.000
16 42111-63J10-000 STOPPER, FRONT BUMP 2 Rp221.000
17 41211M63J00-000 SEAT, FRONT COIL SPRING 2 Rp23.000
18 41230-63J01-000
SUB: 41230-63J00-000		 SEAT, FRONT SPRING 2 Rp264.500
19 45201-63J00-000 ARM ASSY, FRONT SUSPENSION RH 1 Rp1.622.500
20 45202-63J00-000 ARM ASSY, FRONT SUSPENSION LH 1 Rp1.622.500
21 45530-63J00-000 BUSHING, SPNSN ARM FRONT 2 Rp196.000
22 45714-59811-000
SUB: 45714-59810-000		 SEAL SET, DUST 2 Rp329.500
23 09100-10222-000 BOLT (10X50) 2 Rp27.500
24 09135-14018-000
SUB: 09135-14010-000		 BOLT (14X75) 2 Rp70.500
25 09135-14011-000 BOLT (14X90) 2 Rp65.500
26 09159-10048-000 NUT 2 Rp19.500
27 09160-10142-000 WASHER (10X20X2.3) 2 Rp17.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
