SWIFT RS415 CKD

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 ENGINE GASKET SETFIG.2 CYLINDER HEADFIG.3 CYLINDERFIG.4 OIL PANFIG.5 ENGINE MOUNTING (MT)FIG.6 ENGINE MOUNTING (AT)FIG.7 CRANKSHAFTFIG.8 CAM SHAFT/VALVEFIG.9 CAM CHAINFIG.10 INTAKE MANIFOLDFIG.11 THROTTLE BODYFIG.12 AIR CLEANERFIG.13 EXHAUST MANIFOLDFIG.14 MUFFLERFIG.15 FUEL PUMPFIG.16 DELIVERY PIPEFIG.17 OIL PUMPFIG.18 WATER PUMPFIG.19 RADIATORFIG.20 WATER HOSEFIG.21 EMISSION CONTROLFIG.22 LABEL

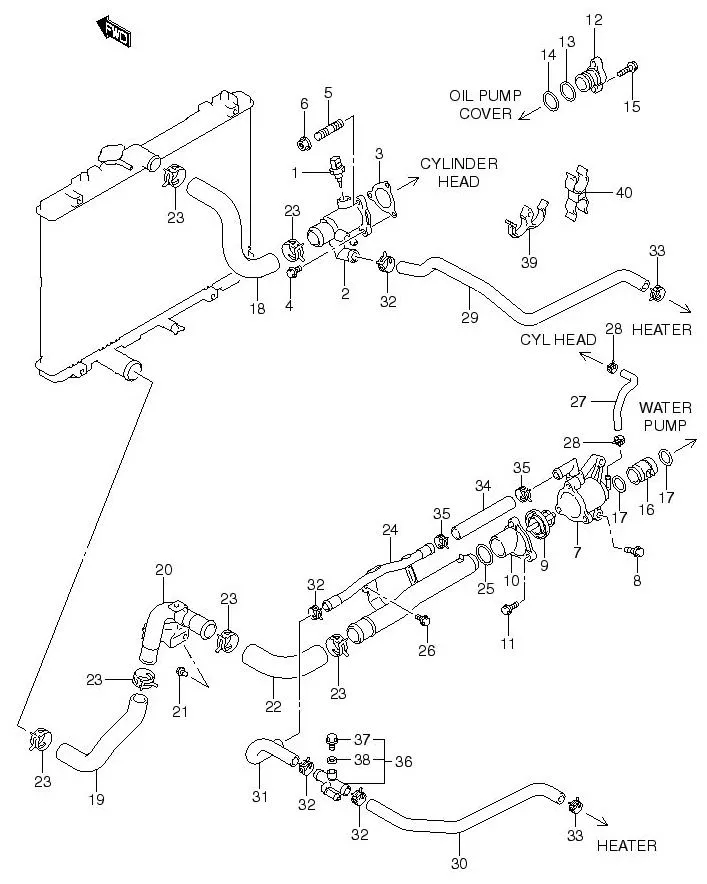

FIG.20 WATER HOSE

FIG.20 WATER HOSE
No No. Part Description Qty Price Per Pcs Remarks
1 13650-73H00-000 SENSOR, WATER TEMPERATRURE 1 Rp368.000
2 17570-86G00-000 CAP, WATER OUTLET 1 Rp492.500
3 17699-69G00-000 GASKET 1 Rp40.500
4 01550-0825A-000
SUB: 01550B0825AN000		 BOLT 1 Rp3.500
5 01421-0825A-000 STUD BOLT 2 Rp13.000
6 08316-1008A-000
SUB: 08316B1008AN000		 NUT 2 Rp3.500
7 17690-80JA0-000 CASE, THERMOSTAT 1 Rp757.000
8 01550-0835A-000
SUB: 01550B0835AN000		 BOLT 2 Rp3.500
9 17670-63J00-000 THERMOSTAT, WATER (82C) 1 Rp324.500
10 17561-80JA0-000 CAP, WATER THERMOSTAT 1 Rp205.500
11 01550-0620B-000
SUB: 01550B0620AN000		 BOLT 3 Rp3.500
12 17581-69G00-000 CAP, WATER OUTLET 1 Rp384.000
13 17582-54D00-000 O RING, WATER OUTLET CAP NO.1 (D:3.5,ID:30.7) 1 Rp29.000
14 17583-54D00-000 O RING, WATER OUTLET CAP NO.2 (D:3.8,ID:27.7) 1 Rp32.000
15 01550-0845A-000 BOLT 2 Rp18.000
16 17831-69G00-000 PIPE, THERMOSTAT WATER OUTLET 1 Rp154.500
17 09280-28008-000
SUB: 09280B28008N000		 O RING (D:3.5,ID:27.7) 2 Rp2.500
18 17852-63J00-000 HOSE, RADIATOR INLET 1 Rp186.500
19 17854-63J00-000 HOSE, RADIATOR OUTLET 1 Rp156.500
20 17860-63J00-000 PIPE, WATER INLET NO.2 1 Rp384.000
21 DISCONTINUE
SUB: 01550B0612AN000		 BOLT 2 -
22 DISCONTINUE
SUB: 17853B69G00N000		 HOSE, WATER INLET 1 -
23 09401-35403-000 CLIP 6 Rp46.500
24 17840-86G00-000 PIPE, WTR INLET NO.1 1 Rp549.000
25 09280-28008-000
SUB: 09280B28008N000		 O RING (D:3.5,ID:27.7) 1 Rp2.500
26 DISCONTINUE
SUB: 01550B0612AN000		 BOLT 1 -
27 17698-63J00-000 HOSE, WTR BYPASS 1 Rp74.000
28 09401-12410-000 CLIP 2 Rp15.000
29 17871-63J00-000 HOSE, HEATER INLET 1 Rp219.500
30 17872-63J01-000 HOSE, HEATER OUTLET NO.1 1 Rp128.000
31 17874-63J00-000 HOSE, HEATER OUTLET NO.2 1 Rp99.500
32 09401-21405-000 CLIP 4 Rp25.000
33 09401-21405-000 CLIP 2 Rp25.000
34 17873-81K00-000
SUB: 17873B69G00N000		 HOSE, WATER BYPASS 1 Rp16.500
35 09401-21405-000 CLIP 2 Rp25.000
36 17879-86G00-000 UNION, HEATER 1 Rp165.000
37 17568-50F00-000 UNION, AIR VENT 1 Rp35.500
38 09168-06026-000 GASKET 1 Rp20.000
39 DISCONTINUE
SUB: 09408-00117-000		 CLAMP 1 -
40 09408-00166-000 CLAMP 1 Rp41.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
