SWIFT RS415 CKD

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 ENGINE GASKET SETFIG.2 CYLINDER HEADFIG.3 CYLINDERFIG.4 OIL PANFIG.5 ENGINE MOUNTING (MT)FIG.6 ENGINE MOUNTING (AT)FIG.7 CRANKSHAFTFIG.8 CAM SHAFT/VALVEFIG.9 CAM CHAINFIG.10 INTAKE MANIFOLDFIG.11 THROTTLE BODYFIG.12 AIR CLEANERFIG.13 EXHAUST MANIFOLDFIG.14 MUFFLERFIG.15 FUEL PUMPFIG.16 DELIVERY PIPEFIG.17 OIL PUMPFIG.18 WATER PUMPFIG.19 RADIATORFIG.20 WATER HOSEFIG.21 EMISSION CONTROLFIG.22 LABEL

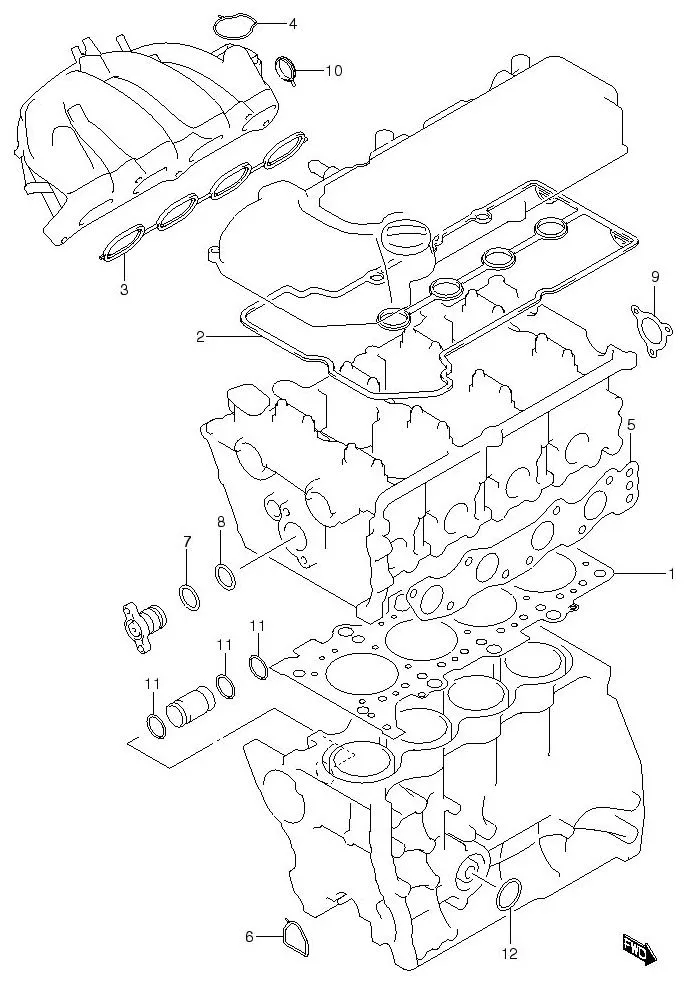

FIG.1 ENGINE GASKET SET

FIG.1 ENGINE GASKET SET
No No. Part Description Qty Price Per Pcs Remarks
11400-86875-000
SUB: 11400-86873-000		 GASKET SET, ENGINE 1 Rp1.674.500
1 11141-69G03-000 GASKET, CYLINDER HEAD 1 Rp706.500
2 11189-54GE0-000 GASKET, CYLINDER HEAD COVER 1 Rp195.500
3 13119-86G00-000 GASKET, INTAKE MANIFOLD 1 Rp134.000
4 13421-86G00-000 GASKET, THROTTLE BODY 1 Rp73.500
5 14140-69G02-000
SUB: 14140-69G01-000		 GASKET, EXHAUST MANIFOLD 1 Rp156.000
6 16559-69GE0-000 GASKET, OIL CONTROL VALVE 1 Rp40.500
7 17582-54D00-000 O RING, WATER OUTLET CAP NO.1 1 Rp29.000
8 17583-54D00-000 O RING, WATER OUTLET CAP NO.2 1 Rp32.000
9 17699-69G00-000 GASKET, WATER OUTLET CAP 1 Rp40.500
10 18534-86G00-000 GASKET, EGR PIPE 1 Rp56.500
11 09280-28008-000
SUB: 09280B28008N000		 O RING, THERMO OUTLET PIPE 3 Rp2.500
12 09280-62003-000 O RING, ADAPT CASE 1 Rp43.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
