SWIFT RS415 CKD

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 ENGINE GASKET SETFIG.2 CYLINDER HEADFIG.3 CYLINDERFIG.4 OIL PANFIG.5 ENGINE MOUNTING (MT)FIG.6 ENGINE MOUNTING (AT)FIG.7 CRANKSHAFTFIG.8 CAM SHAFT/VALVEFIG.9 CAM CHAINFIG.10 INTAKE MANIFOLDFIG.11 THROTTLE BODYFIG.12 AIR CLEANERFIG.13 EXHAUST MANIFOLDFIG.14 MUFFLERFIG.15 FUEL PUMPFIG.16 DELIVERY PIPEFIG.17 OIL PUMPFIG.18 WATER PUMPFIG.19 RADIATORFIG.20 WATER HOSEFIG.21 EMISSION CONTROLFIG.22 LABEL

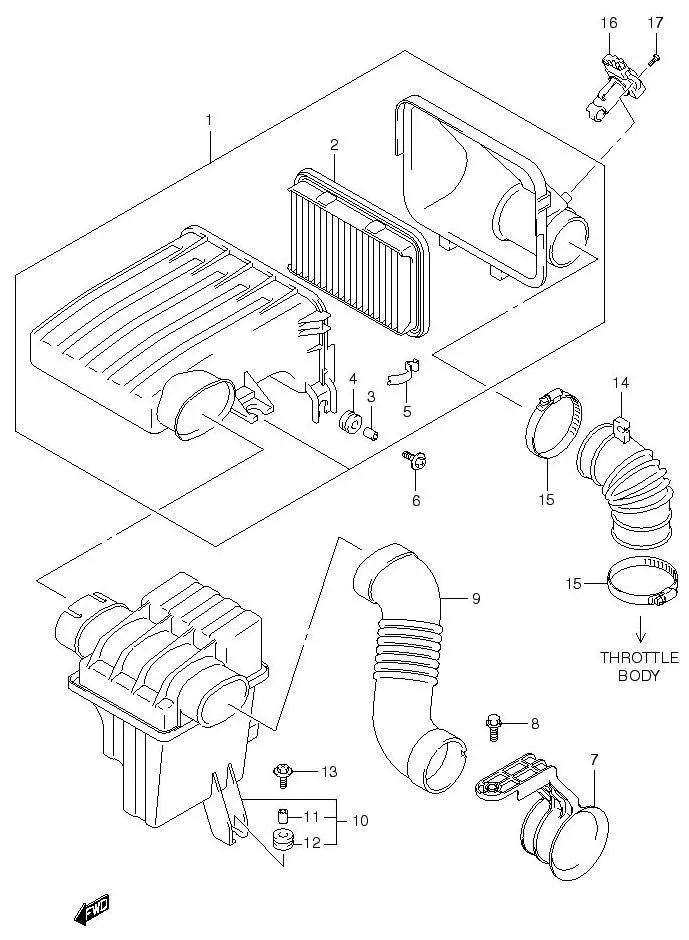

FIG.12 AIR CLEANER

FIG.12 AIR CLEANER
No No. Part Description Qty Price Per Pcs Remarks
1 13700-63J00-000 CLEANER ASSY, AIR 1 Rp1.646.500
2 13780-63J00-000 ELEMENT 1 Rp230.500
3 DISCONTINUE
SUB: 13812-72G40-000		 COLLAR 3 -
4 13813-83000-000 CUSHION 3 Rp31.500
5 13755-65D00-000 CLIP 2 Rp41.500
6 09136-06141-000 BOLT (6X25) 3 Rp17.000
7 13765-57K00-000 PIPE, AIR CLEANER SUCTION 1 Rp111.000
8 02162-0612A-000 BOLT 1 Rp11.000
9 13766-57K00-000 HOSE, AIR SUCTION 1 Rp301.500
10 13870-63J00-000 PIPE, AIR INTAKE 1 Rp645.000
11 DISCONTINUE
SUB: 13812-72G40-000		 COLLAR 1 -
12 13813-83000-000 CUSHION 1 Rp31.500
13 01550-0620B-000
SUB: 01550B0620AN000		 BOLT 1 Rp3.500
14 13881-63J00-000
SUB: 13881B63J00N000		 HOSE, AIR CLEANER OUTLET 1 Rp74.500
15 09402-70503-000 CLAMP 2 Rp91.500
16 13800-63J00-000 SENSOR ASSY, MAF 1 Rp3.059.000
17 02112-0410A-000 SCREW 2 Rp11.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
