SWIFT RS415 CKD

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 ENGINE GASKET SETFIG.2 CYLINDER HEADFIG.3 CYLINDERFIG.4 OIL PANFIG.5 ENGINE MOUNTING (MT)FIG.6 ENGINE MOUNTING (AT)FIG.7 CRANKSHAFTFIG.8 CAM SHAFT/VALVEFIG.9 CAM CHAINFIG.10 INTAKE MANIFOLDFIG.11 THROTTLE BODYFIG.12 AIR CLEANERFIG.13 EXHAUST MANIFOLDFIG.14 MUFFLERFIG.15 FUEL PUMPFIG.16 DELIVERY PIPEFIG.17 OIL PUMPFIG.18 WATER PUMPFIG.19 RADIATORFIG.20 WATER HOSEFIG.21 EMISSION CONTROLFIG.22 LABEL

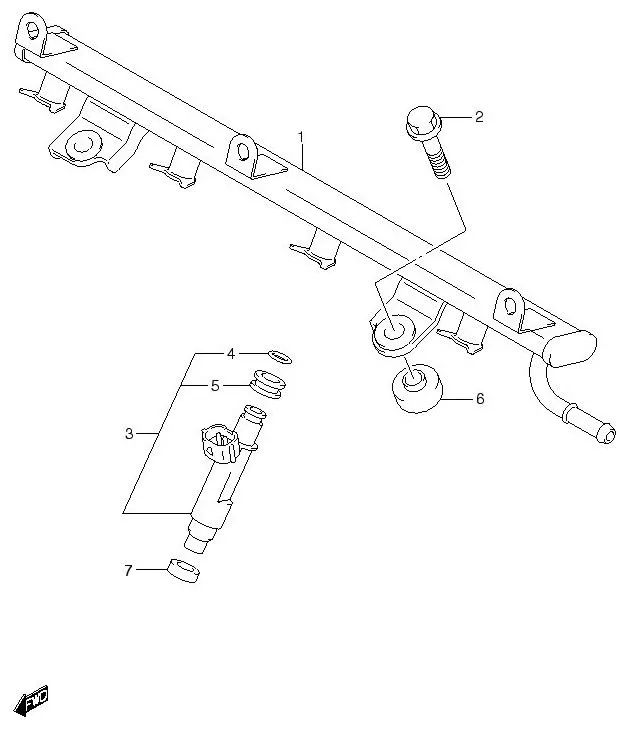

FIG.16 DELIVERY PIPE

FIG.16 DELIVERY PIPE
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 15730-86G00-000		 PIPE, FUEL DELIVERY 1 -
2 01550-0830A-000
SUB: 01550B0830AN000		 BOLT 2 Rp4.000
3 15710-86G00-000 INJECTOR ASSY, FUEL 4 Rp2.072.000
4 15710-09300-000
SUB: 15710B09300N000		 O RING 4 Rp13.500
5 15720-09300-000
SUB: 15720B09300N000		 GROMMET 4 Rp11.500
6 15735-58B00-000 INSULATOR 2 Rp45.500
7 09320-09022-000
SUB: 09320-08062-000		 CUSHION 4 Rp8.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
