SWIFT RS415 CKD

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 ENGINE GASKET SETFIG.2 CYLINDER HEADFIG.3 CYLINDERFIG.4 OIL PANFIG.5 ENGINE MOUNTING (MT)FIG.6 ENGINE MOUNTING (AT)FIG.7 CRANKSHAFTFIG.8 CAM SHAFT/VALVEFIG.9 CAM CHAINFIG.10 INTAKE MANIFOLDFIG.11 THROTTLE BODYFIG.12 AIR CLEANERFIG.13 EXHAUST MANIFOLDFIG.14 MUFFLERFIG.15 FUEL PUMPFIG.16 DELIVERY PIPEFIG.17 OIL PUMPFIG.18 WATER PUMPFIG.19 RADIATORFIG.20 WATER HOSEFIG.21 EMISSION CONTROLFIG.22 LABEL

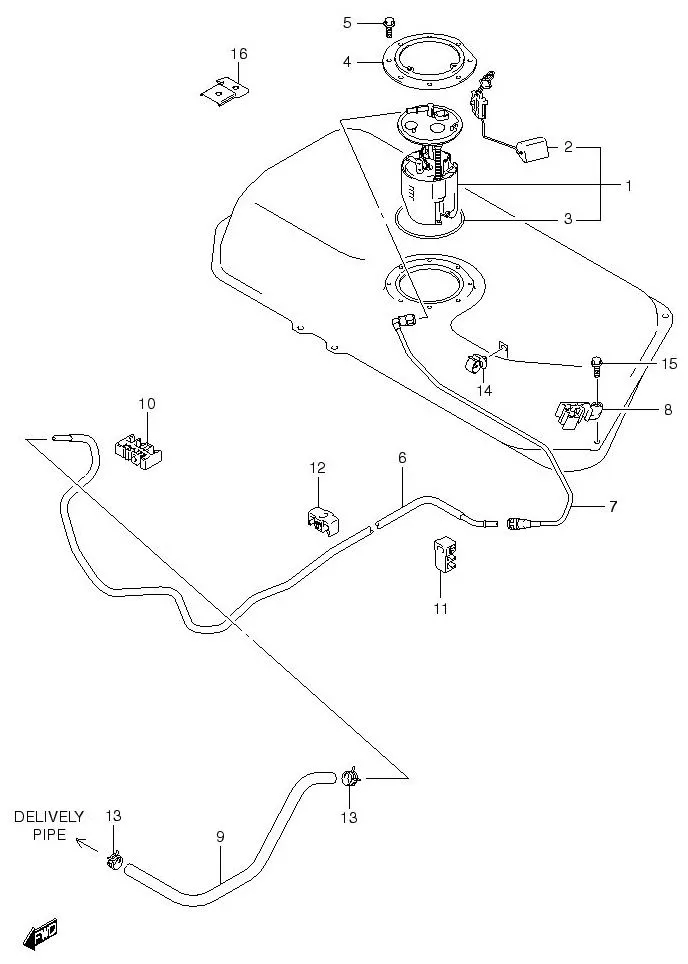

FIG.15 FUEL PUMP

FIG.15 FUEL PUMP
No No. Part Description Qty Price Per Pcs Remarks
1 15100-63840-000 PUMP SET, FUEL 1 Rp8.882.500
2 34810-63J00-000 GAUGE ASSY, LEVEL 1 Rp836.000
3 15111-80J00-000 GASKET 1 Rp96.500
4 15121M61J00-000 PLATE, FUEL PUMP 1 Rp23.500
5 09103-06265-000
SUB: 09103-06168-000		 BOLT (6X10) 8 Rp21.500
6 DISCONTINUE
SUB: 15811-63J00-000		 PIPE, FUEL 1 -
7 15812-63J00-000 PIPE, FUEL (PUMP TO PIPE) 1 Rp464.000
8 DISCONTINUE
SUB: 15813-63J00-000		 CLAMP 1 -
9 15815-63J00-000 HOSE, FUEL (PIPE TO ENG) 1 Rp367.000
10 DISCONTINUE
SUB: 15882-80G00-000		 CLAMP 1 -
11 DISCONTINUE
SUB: 15893-63J00-000		 CLAMP 1 -
12 15893-83G01-000 CLAMP 6 Rp23.000
13 09401-13419-000 CLIP 2 Rp26.500
14 09403-08333-000 CLAMP 1 Rp22.500
15 01550-0616A-000
SUB: 01550B0616AN000		 BOLT 1 Rp3.500
16 DISCONTINUE
SUB: 15131-63J00-000		 BRACKET, TANK EARTH 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
