SWIFT RS415 CKD

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 ENGINE GASKET SETFIG.2 CYLINDER HEADFIG.3 CYLINDERFIG.4 OIL PANFIG.5 ENGINE MOUNTING (MT)FIG.6 ENGINE MOUNTING (AT)FIG.7 CRANKSHAFTFIG.8 CAM SHAFT/VALVEFIG.9 CAM CHAINFIG.10 INTAKE MANIFOLDFIG.11 THROTTLE BODYFIG.12 AIR CLEANERFIG.13 EXHAUST MANIFOLDFIG.14 MUFFLERFIG.15 FUEL PUMPFIG.16 DELIVERY PIPEFIG.17 OIL PUMPFIG.18 WATER PUMPFIG.19 RADIATORFIG.20 WATER HOSEFIG.21 EMISSION CONTROLFIG.22 LABEL

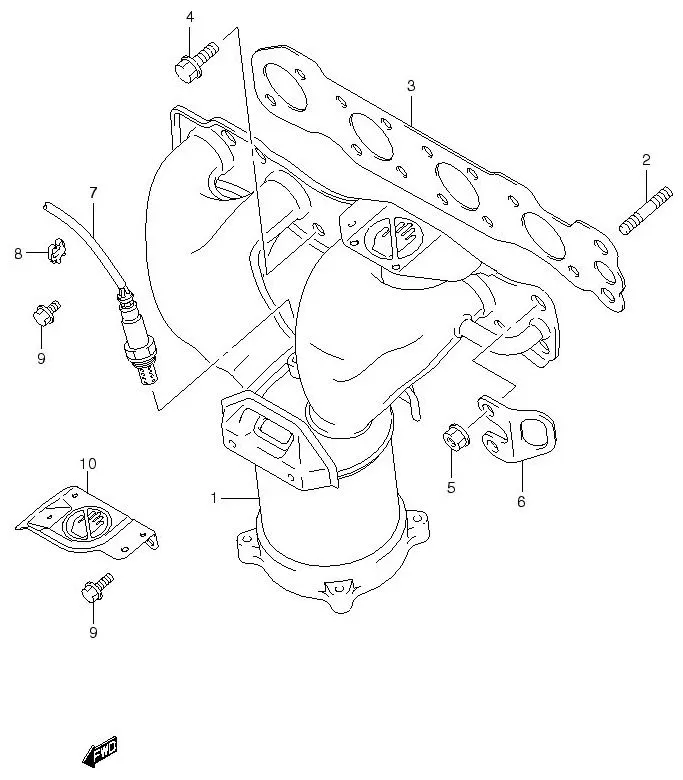

FIG.13 EXHAUST MANIFOLD

FIG.13 EXHAUST MANIFOLD
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 14110-63J02-H02		 MANIFOLD, EXHAUST 1 -
2 14118-63J00-000 STUD BOLT 6 Rp21.500
3 14140-69G02-000
SUB: 14140-69G01-000		 GASKET, EXH MANF 1 Rp156.000
4 09135-10011-000 BOLT (10X26) 4 Rp34.000
5 08316-1010A-000
SUB: 08316B1010AN000		 NUT 6 Rp3.500
6 DISCONTINUE
SUB: 11851B80GA0N000		 HOOK, ENGINE 1 -
7 18213-63J01-000 SENSOR, OXYGEN 1 Rp2.745.000
8 09403-11313-000 CLAMP 2 Rp24.000
9 01550-0816A-000
SUB: 01550B0816AN000		 BOLT 2 Rp6.000
10 14121-64J01-000 PLATE, CAUTION 1 Rp130.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
