SWIFT RS415 CKD

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 ENGINE GASKET SETFIG.2 CYLINDER HEADFIG.3 CYLINDERFIG.4 OIL PANFIG.5 ENGINE MOUNTING (MT)FIG.6 ENGINE MOUNTING (AT)FIG.7 CRANKSHAFTFIG.8 CAM SHAFT/VALVEFIG.9 CAM CHAINFIG.10 INTAKE MANIFOLDFIG.11 THROTTLE BODYFIG.12 AIR CLEANERFIG.13 EXHAUST MANIFOLDFIG.14 MUFFLERFIG.15 FUEL PUMPFIG.16 DELIVERY PIPEFIG.17 OIL PUMPFIG.18 WATER PUMPFIG.19 RADIATORFIG.20 WATER HOSEFIG.21 EMISSION CONTROLFIG.22 LABEL

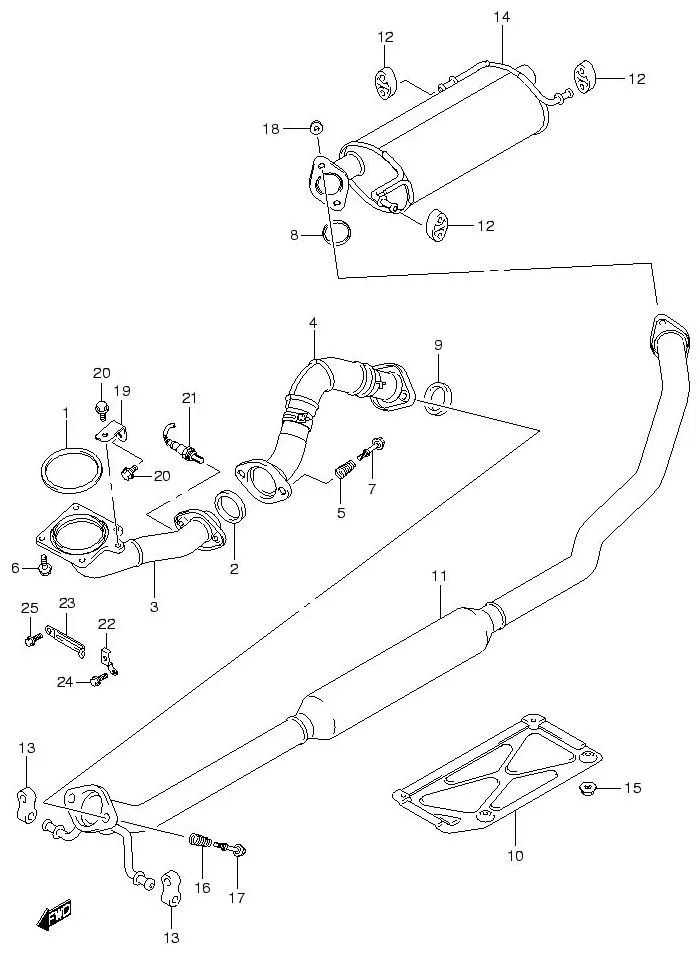

FIG.14 MUFFLER

FIG.14 MUFFLER
No No. Part Description Qty Price Per Pcs Remarks
1 14181-70H00-000 GASKET, EXH MANF 1 Rp109.500
2 14183-65D00-000 SEAL RING 1 Rp161.000
3 14190-63JC0-000 PIPE, EXH NO.1 1 Rp2.264.500
4 DISCONTINUE
SUB: 14220-63JC0-000		 PIPE, EXH NO.2 1 -
5 14492-67D00-000 SPRING 2 Rp64.000
6 09103-10324-000 BOLT (10X20) 4 Rp30.000
7 09119-10073-000 BOLT (10X65) 2 Rp75.000
8 14182-58B10-000 GASKET, EXH PIPE 1 Rp70.000
9 14183-65D00-000 SEAL RING 1 Rp161.000
10 DISCONTINUE
SUB: 14231-63J00-000		 INSULATOR, HEAT 1 -
11 DISCONTINUE
SUB: 14250-63JB0-000		 PIPE, EXH CENTER 1 -
12 14281-80JA0-000
SUB: 14281B80JA0N000		 MOUNTING 3 Rp67.500
13 14281-71C01-000 MOUNTING 2 Rp87.500
14 14300-63JB1-000
SUB: 14300-63JB0-000		 MUFFLER 1 Rp3.022.000
15 14357-72J00-000 NUT 4 Rp14.500
16 14492-67D00-000 SPRING 2 Rp64.000
17 09119-10073-000 BOLT (10X65) 2 Rp75.000
18 09159M10049-000 NUT 2 Rp10.500
19 DISCONTINUE
SUB: 14271B63J00N000		 STIFFENER 1 -
20 09103-10324-000 BOLT (10X20) 2 Rp30.000
21 18213-63J12-000 SENSOR, OXYGEN 1 Rp2.899.000
22 DISCONTINUE
SUB: 18214-63J00-000		 BRACKET 1 -
23 DISCONTINUE
SUB: 09404-08419-000		 CLAMP 1 -
24 DISCONTINUE
SUB: 01550B0612AN000		 BOLT 1 -
25 01550-0816A-000
SUB: 01550B0816AN000		 BOLT 1 Rp6.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
