SWIFT RS415 CKD

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 ENGINE GASKET SETFIG.2 CYLINDER HEADFIG.3 CYLINDERFIG.4 OIL PANFIG.5 ENGINE MOUNTING (MT)FIG.6 ENGINE MOUNTING (AT)FIG.7 CRANKSHAFTFIG.8 CAM SHAFT/VALVEFIG.9 CAM CHAINFIG.10 INTAKE MANIFOLDFIG.11 THROTTLE BODYFIG.12 AIR CLEANERFIG.13 EXHAUST MANIFOLDFIG.14 MUFFLERFIG.15 FUEL PUMPFIG.16 DELIVERY PIPEFIG.17 OIL PUMPFIG.18 WATER PUMPFIG.19 RADIATORFIG.20 WATER HOSEFIG.21 EMISSION CONTROLFIG.22 LABEL

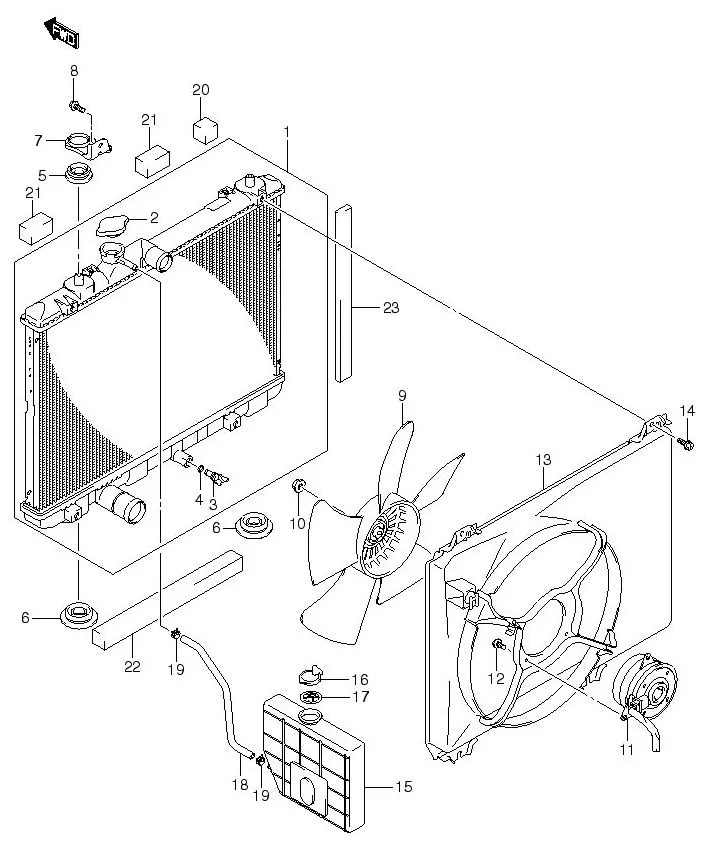

FIG.19 RADIATOR

FIG.19 RADIATOR
No No. Part Description Qty Price Per Pcs Remarks
1-2 17700-63J10-000 RADIATOR ASSY 1 Rp7.476.000 AT
1-1 17700-63J00-000 RADIATOR ASSY 1 Rp7.773.000 MT
2 DISCONTINUE
SUB: 17920B75F00N000		 CAP, RADIATOR 1 -
3 17751-61A00-000
SUB: 17751B61A00N000		 PLUG, DRAIN 1 Rp13.000
4 17759-72010-000 O RING 1 Rp17.000
5 17879M75J00-000
SUB: 17879M75F00-000		 MOUNT, RADIATOR SUPPORT UPPER 2 Rp11.000
6 17878-81K00-000
SUB: 17878B75F00N000		 MOUNT, RADIATOR SUPPORT LOWER 2 Rp14.000
7 17861-63J01-000 BRACKET, RADIATOR SUPPORT 2 Rp42.500
8 02162-0612A-000 BOLT 2 Rp11.000
9 17111-63J00-000 FAN, COOLING 1 Rp526.500
10 08316-2005A-000 NUT 1 Rp13.000
11 17120-80J00-000 MOTOR, COOLING FAN 1 Rp3.200.000
12 02142-0510A-000
SUB: 02142B0510AN000		 SCREW 3 Rp4.000
13 17760-63JB0-000 SHROUD 1 Rp1.283.500
14 02162-0616B-000 BOLT 4 Rp15.500
15 17931-63J01-000 TANK, WATER RESERVOIR 1 Rp238.000
16 17932-63J00-000 CAP 1 Rp42.500
17 17933-60B00-000
SUB: 17933B60B00N000		 RUBBER 1 Rp5.500
18 17939-63J10-000 HOSE, RDTR TO RSVR TANK 1 Rp109.000
19 09401-10409-000
SUB: 09401M11415-000		 CLIP 2 Rp7.500
20 DISCONTINUE
SUB: 17792-63J00-000		 SEAL, NO.1 1 - L:55!30
21 DISCONTINUE
SUB: 17792-63J00-000		 SEAL, NO.2 2 -
22 17793-63J00-000 SEAL, NO.3 1 Rp65.000
23 DISCONTINUE
SUB: 17794-63J00-000		 SEAL, NO.4 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
