SWIFT RS415 CKD

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 ENGINE GASKET SETFIG.2 CYLINDER HEADFIG.3 CYLINDERFIG.4 OIL PANFIG.5 ENGINE MOUNTING (MT)FIG.6 ENGINE MOUNTING (AT)FIG.7 CRANKSHAFTFIG.8 CAM SHAFT/VALVEFIG.9 CAM CHAINFIG.10 INTAKE MANIFOLDFIG.11 THROTTLE BODYFIG.12 AIR CLEANERFIG.13 EXHAUST MANIFOLDFIG.14 MUFFLERFIG.15 FUEL PUMPFIG.16 DELIVERY PIPEFIG.17 OIL PUMPFIG.18 WATER PUMPFIG.19 RADIATORFIG.20 WATER HOSEFIG.21 EMISSION CONTROLFIG.22 LABEL

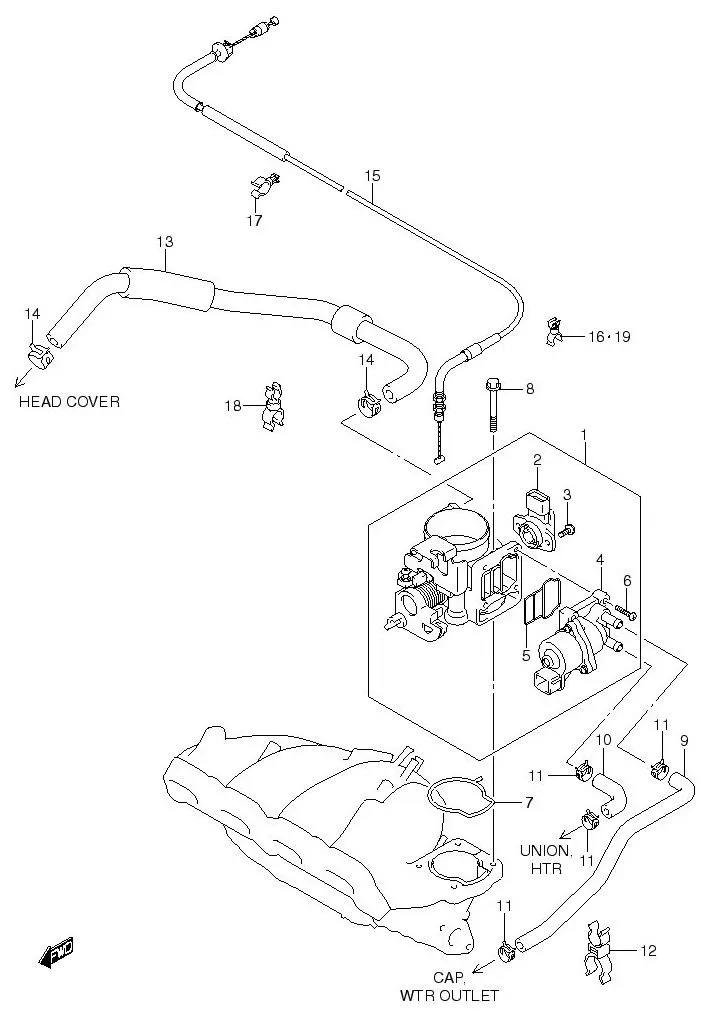

FIG.11 THROTTLE BODY

FIG.11 THROTTLE BODY
No No. Part Description Qty Price Per Pcs Remarks
1 13400-84E02-000
SUB: 13400-84E01-000		 BODY ASSY, THROTTLE 1 Rp9.930.500
2 13420-86G01-000 SENSOR, THROTTLE POSITION 1 Rp2.908.000
3 13428-77G1V-000 SCREW 2 Rp24.000
4 18137-83E01-000 VALVE, ISC 1 Rp3.467.000
5 14139-70G30-000
SUB: 14139M70G30-000		 GASKET 1 Rp38.500
6 13601-05148-XC0 SCREW 4 Rp22.500
7 13421-86G00-000 GASKET 1 Rp73.500
8 01550-0855A-000 BOLT 4 Rp3.500
9 13491-60J00-000 HOSE, WATER THROT BODY INLET 1 Rp170.000
10 13492-60J00-000 HOSE, WATER THROT BODY OUTLET 1 Rp73.000
11 09401-12410-000 CLIP 4 Rp15.000
12 DISCONTINUE
SUB: 09408-00186-000		 CLAMP, HOSE 1 -
13 11191-60J00-000 HOSE, BREATHER 1 Rp250.000
14 11199M68K00-000
SUB: 09401M18404-000		 CLIP 2 Rp11.000
15 15910-63J00-000 CABLE ASSY, ACCEL 1 Rp265.000
16 DISCONTINUE
SUB: 09408-00219-000		 CLAMP 1 -
17 DISCONTINUE
SUB: 09408-00079-000		 CLAMP 1 -
18 DISCONTINUE
SUB: 09408-00080-000		 CLAMP 1 -
19 DISCONTINUE
SUB: 09408-00048-000		 CLAMP 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
