SWIFT RS415 CKD

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 ENGINE GASKET SETFIG.2 CYLINDER HEADFIG.3 CYLINDERFIG.4 OIL PANFIG.5 ENGINE MOUNTING (MT)FIG.6 ENGINE MOUNTING (AT)FIG.7 CRANKSHAFTFIG.8 CAM SHAFT/VALVEFIG.9 CAM CHAINFIG.10 INTAKE MANIFOLDFIG.11 THROTTLE BODYFIG.12 AIR CLEANERFIG.13 EXHAUST MANIFOLDFIG.14 MUFFLERFIG.15 FUEL PUMPFIG.16 DELIVERY PIPEFIG.17 OIL PUMPFIG.18 WATER PUMPFIG.19 RADIATORFIG.20 WATER HOSEFIG.21 EMISSION CONTROLFIG.22 LABEL

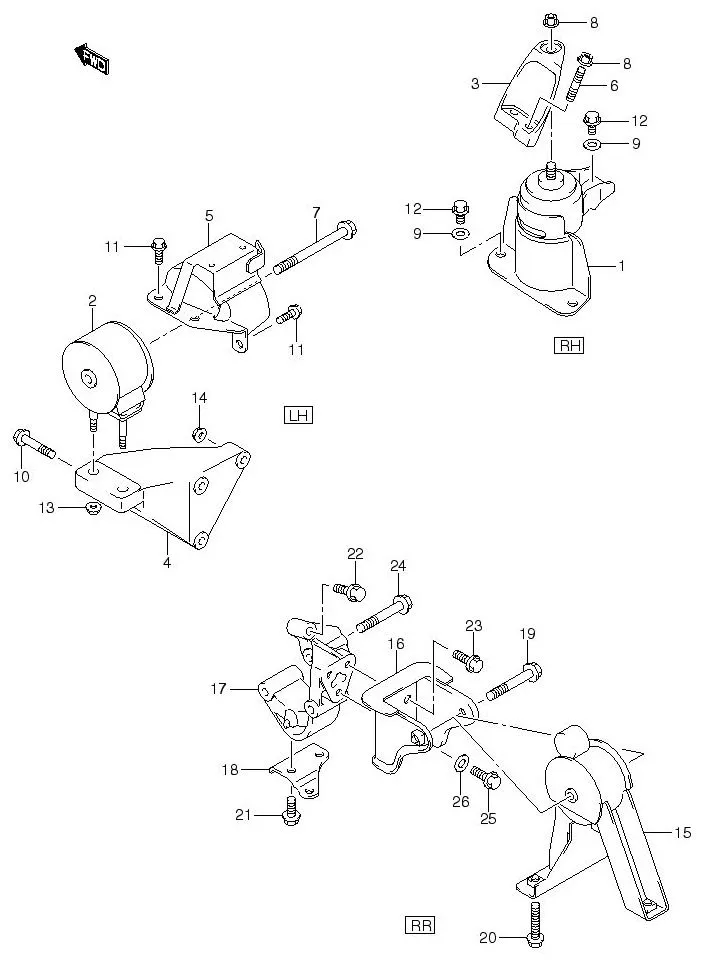

FIG.5 ENGINE MOUNTING (MT)

FIG.5 ENGINE MOUNTING (MT)
No No. Part Description Qty Price Per Pcs Remarks
1 11610-63J10-000
SUB: 11610-63J00-000		 MOUNTING, ENG RH 1 Rp950.500
2 11620-63J00-000 MOUNTING, ENG LH 1 Rp709.000
3 DISCONTINUE
SUB: 11641-63J00-000		 BRACKET, ENG MTG RH 1 -
4 DISCONTINUE
SUB: 11651-63J20-000		 BRACKET, ENG LH MTG 1 -
5 DISCONTINUE
SUB: 11671-73K00-000		 BRACKET, ENG LH MTG BODY 1 -
6 09108-10136-000 STUD BOLT 3 Rp31.500
7 DISCONTINUE
SUB: 09113-12001-000		 BOLT (10X150) 1 -
8 09159-10115-000 NUT 4 Rp23.000
9 DISCONTINUE
SUB: 09160-10143-000		 WASHER (10.5X22X1.6) 3 -
10 01550-1060A-000
SUB: 01550M1060A-000		 BOLT 1 Rp5.500
11 01551-0825A-000 BOLT 3 Rp16.000
12 01551-1025A-000 BOLT 3 Rp29.000
13 08316-1010A-000
SUB: 08316B1010AN000		 NUT 2 Rp3.500
14 08316-1010A-000
SUB: 08316B1010AN000		 NUT 2 Rp3.500
15 11710-63J20-000 MOUNTING, ENG RR 1 Rp1.176.000
16 DISCONTINUE
SUB: 11740-63J00-000		 BRACKET, ENG RR MTG 1 -
17 DISCONTINUE
SUB: 11749-63J01-000		 BRACKET, ENG RR MTG 1 -
18 DISCONTINUE
SUB: 11751-63J00-000		 STIFFENER 1 -
19 09103-10337-000 BOLT (10X85) 1 Rp42.500
20 09113-10004-000 BOLT (10X85) 3 Rp29.000
21 01550-1025A-000
SUB: 01550B1025AN000		 BOLT 3 Rp3.500
22 01550-1050A-000 BOLT 1 Rp6.000
23 DISCONTINUE
SUB: 09103-10405-000		 BOLT (10X30) 2 -
24 01550-1075A-000 BOLT 3 Rp32.000
25 DISCONTINUE
SUB: 09103-10405-000		 BOLT (10X30) 1 -
26 09160-10093-000 WASHER (10.5X24X2.3) 1 Rp12.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
