Transmission - Suzuki Spare Part

Ubah pencarian

Atau cari dengan

Preview Engine Transmission Electrical Suspension Body

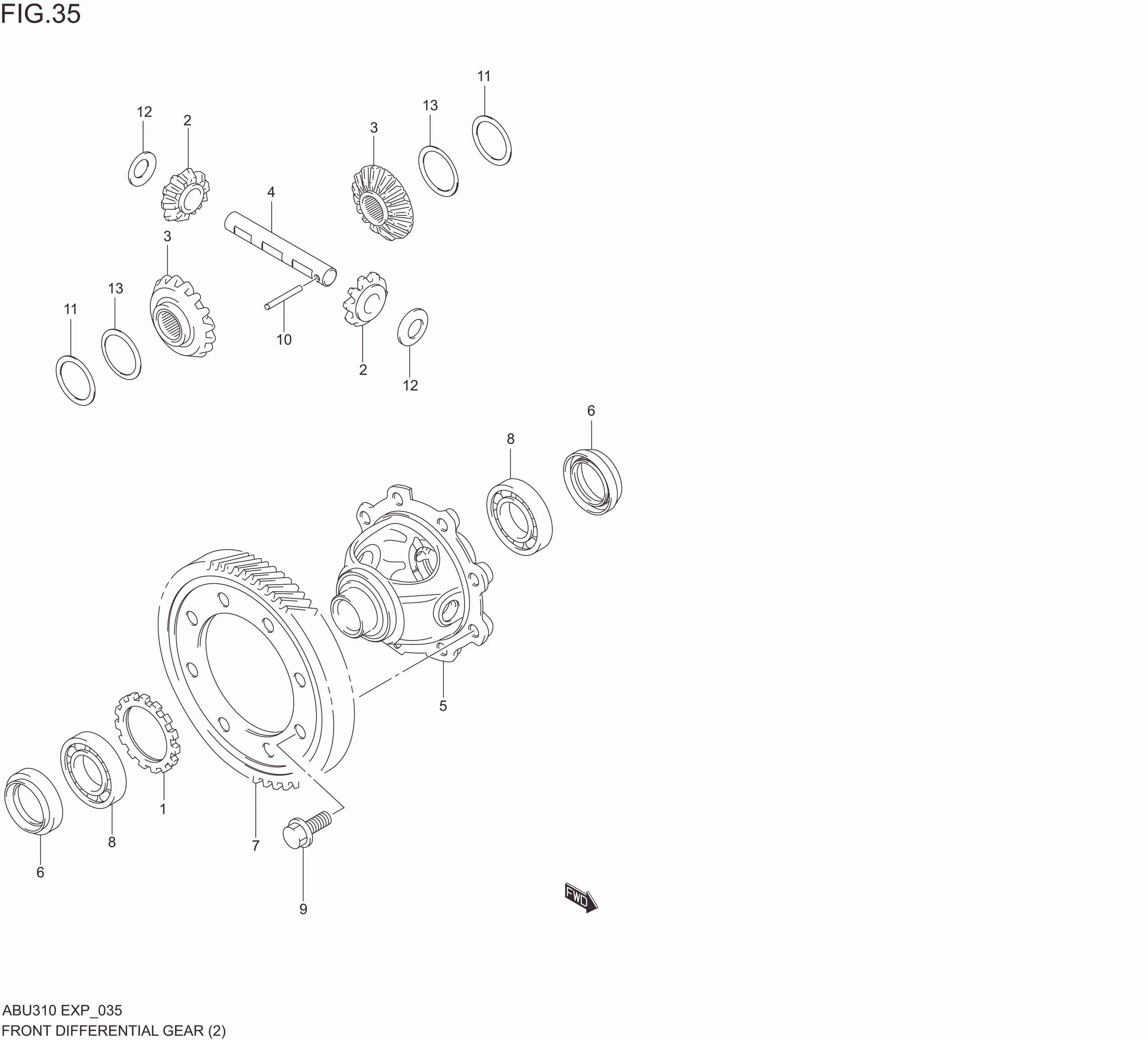

No	No. Part	Description	Qty	Price Per Pcs
1	26121-77M00-000 SUB: 26121M86J00-000	RING,EXCITER	1	Rp51.000
2	27331M55K00-000	PINION,DIFFERENTIAL	2	Rp163.500
3	27341M68K02-000	GEAR,DIFFERENTIAL SIDE	2	Rp238.000
4	27351M76M20-000 SUB: 27351M76M00-000	SHAFT,DIFFERENTIAL PINION	1	Rp75.000
5	27411M69R00-000	CASE,DIFFERENTIAL	1	Rp472.500
6	27432M74LB0-000 SUB: 27432M74LA0-000	SEAL,DIFF SIDE OIL	2	Rp81.500
7	27511M68PF0-000	GEAR,FINAL	1	Rp1.178.000
8	27524-75J00-000	BEARING,DIFFERENTIAL SIDE	2	Rp122.000
9	09103-10189-000	BOLT,FINAL GEAR	8	Rp29.000
10	09205M05007-000 SUB: 09205-05007-000	PIN	1	Rp5.000
11-2	09181-35157-000	WASHER(T:0.65)	0	Rp29.500
11-10	09160M35023-000	WASHER(T:1.05)	0	Rp10.000
11-9	09160M35018-000	WASHER(T:1.00)	0	Rp20.500
11-8	09160M35022-000	WASHER(T:0.95)	0	Rp10.000
11-7	09160M35021-000	WASHER(T:0.90)	0	Rp10.000
11-6	09181-35159-000	WASHER(T:0.85)	0	Rp29.500
11-5	09160M35013-000 SUB: 09160-35013-000	WASHER(T:0.80)	0	Rp9.000
11-4	09181-35158-000	WASHER(T:0.75)	0	Rp29.500
11-3	09160-35014-000	WASHER(T:0.70)	0	Rp44.500
11-1	09160M35015-000 SUB: 09160-35015-000	WASHER(T:0.60)	0	Rp6.500
12	09164-17006-000	WASHER	2	Rp28.500
13	27361M76M00-000	WASHER,DIFF SIDE GEAR SPRING	2	Rp4.500
