Suzuki S-Presso

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL MT CLUTCH (5MT)MT TRANSMISSION GEARMT TRANSMISSION CASE GEAR SHIFT FORK (MT)AGS CLUTCH (5AGS)AGS TRANSMISSION GEARAGS TRANSMISSION CASEAGS GEAR SHIFT FORKAGS ACTUATORGEAR SHIFT CONTROL (5MT)SELECT LEVER (5AGS)FRONT DIFFERENTIAL GEAR (5MT)FRONT DIFFERENTIAL GEAR (5AGS)

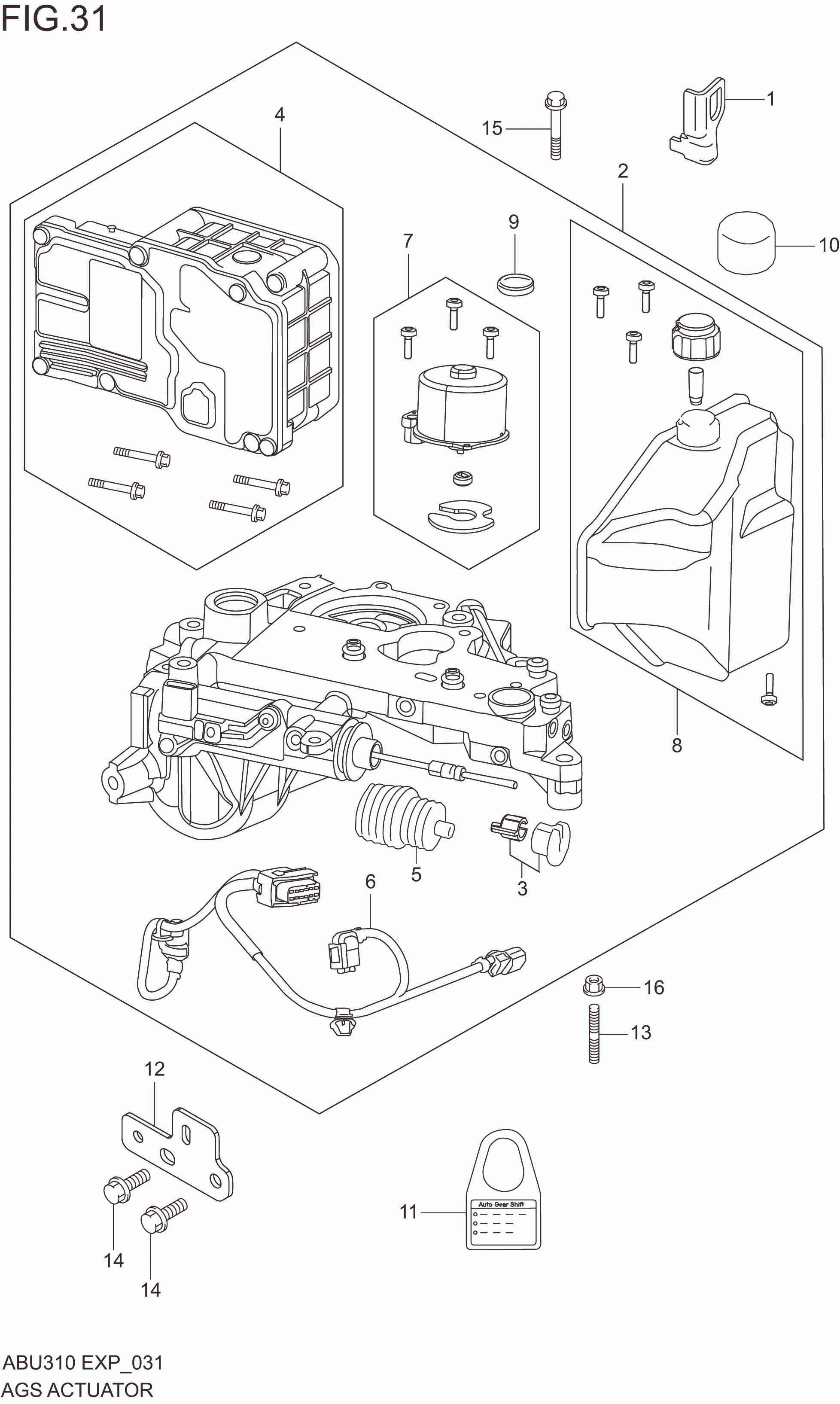

AGS ACTUATOR

AGS ACTUATOR
No No. Part Description Qty Price Per Pcs Remarks
1 24855M66RE0-000 HOOK,TRANSMISSION 1 Rp26.000
2 23100M62SF4-000 ACTUATOR ASSY 1 Rp35.608.000
3 2641TM76ME0-000 .ANCHOR SET, CLUTCH ACTUATOR 1 Rp34.000
4 3880TM62SF0-000 .CONTROLLER SET,AGS 1 Rp6.326.000
5 26424M76ME0-000 .BOOT,CLUTCH ACTUATOR 1 Rp166.000
6 36657M66RE0-000 .HARNESS ,ACTUATOR 1 Rp901.500
7 2280TM76ME0-000 .MOTOR SET,OIL PUMP 1 Rp1.062.500
8 2290TM66RE0-000 .TANK SET,OIL 1 Rp283.500
9 22914M76ME0-000 .O-RING, OIL TANK 1 Rp11.500
10 23151M76ME0-000 COVER,BREATHER 1 Rp16.000
11 23312M66RF0-000 TAG,AGS INFORMATION 1 Rp8.500
12 24895M66RE0-000 BRACKET,ACTUATOR 1 Rp12.500
13 DISCONTINUE
SUB: 01421-0845A-000		 STUD BOLT 2 -
14 01550-0820A-000 BOLT 2 Rp5.500
15 01550-0845A-000 BOLT 1 Rp18.000
16 08316-1008A-000 NUT 2 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
