Suzuki S-Presso

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL MT CLUTCH (5MT)MT TRANSMISSION GEAR MT TRANSMISSION CASE GEAR SHIFT FORK (MT)AGS CLUTCH (5AGS)AGS TRANSMISSION GEAR AGS TRANSMISSION CASE AGS GEAR SHIFT FORK AGS ACTUATOR GEAR SHIFT CONTROL (5MT)SELECT LEVER (5AGS)FRONT DIFFERENTIAL GEAR (5MT)FRONT DIFFERENTIAL GEAR (5AGS)

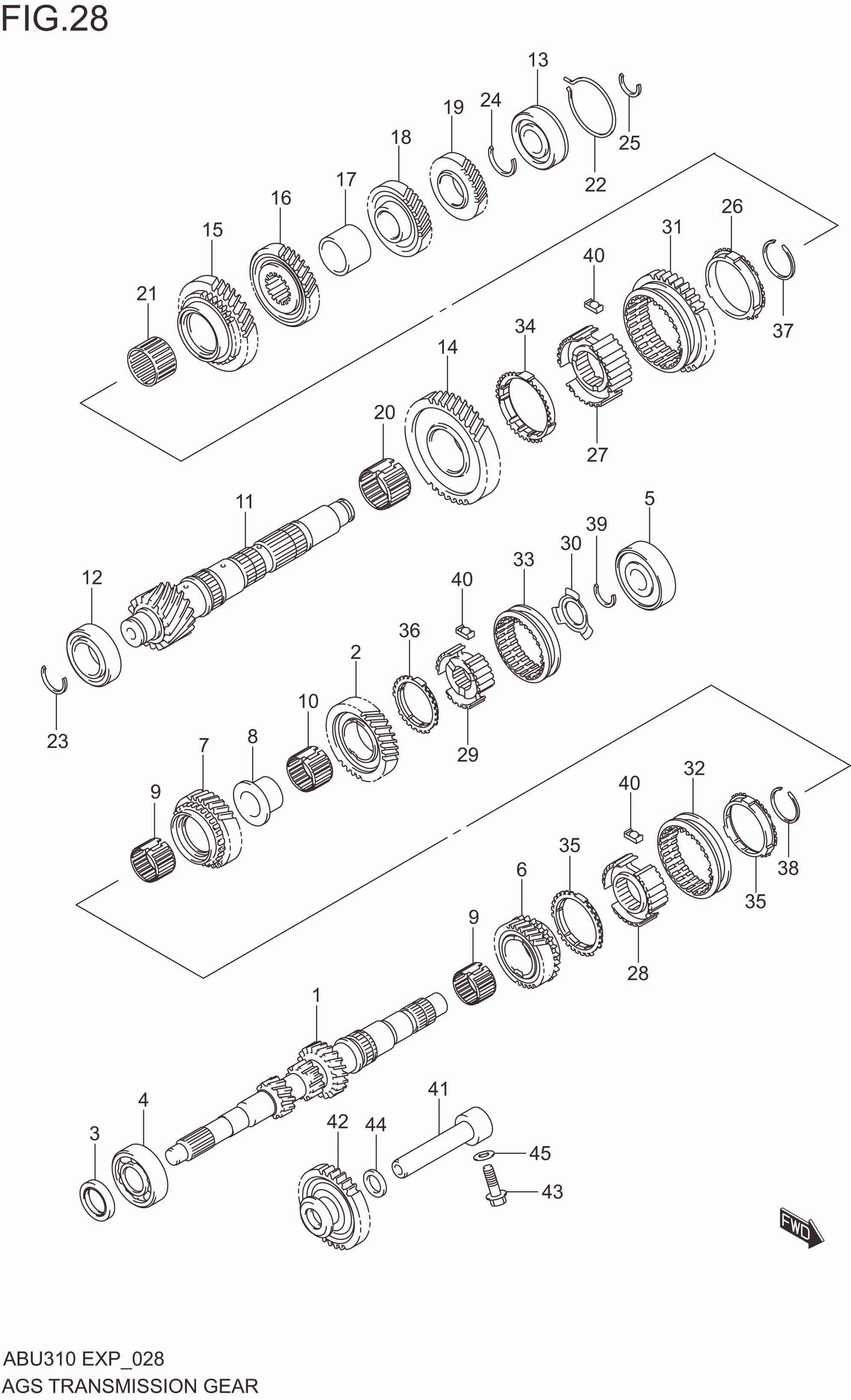

AGS TRANSMISSION GEAR

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	24111M68P21-000	SHAFT,TRANSMISSION INPUT	1	Rp1.727.500
2	24114M76M60-000	GEAR,INPUT SHAFT 5TH	1	Rp685.000
3	24151M68K00-000	SEAL,INPUT SHAFT OIL	1	Rp18.000
4-1	24155M76M00-000	BEARING,INPUT SHAFT R	1	Rp349.000	VENDOR-1
4-2	24155M76M40-000	BEARING,INPUT SHAFT R	1	Rp81.500	VENDOR-2
5-1	24165M76M00-000	BEARING,INPUT SHAFT,L	1	Rp210.500	VENDOR-1
5-2	24165M76M40-000	BEARING,INPUT SHAFT,L	1	Rp116.500	VENDOR-2
6	24230M76M21-000	GEAR COMP,INPUT SHAFT 3RD	1	Rp1.266.500
7	24240M76M41-000	GEAR COMP,INPUT SHAFT 4TH	1	Rp1.478.500
8	24255M76M20-000 SUB: 24255M76M00-000	SPACER,INPUT SHAFT 5TH GEAR	1	Rp75.000
9	24283M76M00-000	BEARING,3RD & 4TH GEAR NDL	2	Rp39.500
10	24285M76M00-000	BEARING,5TH GEAR NEEDLE	1	Rp39.500
11	24131M68PF0-000	SHAFT,TRANSMISSION COUNTER	1	Rp1.119.500
12	24175M76M21-000	BEARING ,COUNTERSHAFT,RH	1	Rp336.000
13	24185M76M00-000	BEARING,COUNTERSHAFT,LH	1	Rp336.000
14	24311M76M01-000	GEAR,COUNTERSHAFT 1ST	1	Rp780.000
15	24321M68P20-000	GEAR,COUNTERSHAFT 2ND	1	Rp576.000
16	24331M76M22-000	GEAR,COUNTERSHAFT 3RD	1	Rp601.500
17	24336M76M20-000 SUB: 24336M76M00-000	SPACER,3RD & 4TH GEAR	1	Rp29.500
18	24341M76M40-000	GEAR,COUNTERSHAFT 4TH	1	Rp408.000
19	24351M76M60-000	GEAR,COUNTERSHAFT 5TH	1	Rp460.000
20	24381M76M00-000	BEARING,1ST GEAR NDL	1	Rp45.500
21	24382M76M00-000	BEARING,2ND GEAR NDL	1	Rp45.500
22	24385M76M00-000	RING,COUNTERSHAFT BRG,LH SNAP	1	Rp10.500
23	24391M76M20-000 SUB: 24391M76M00-000	CIRCLIP,COUNTERSHAFT BRG,RH	1	Rp6.000
24-6	24392M76M00-240	CIRCLIP,CTSHFT 5TH GR T2.40	0	Rp9.500
24-5	24392M76M00-235	CIRCLIP,CTSHFT 5TH GR T2.35	0	Rp10.500
24-4	24392M76M00-230	CIRCLIP,CTSHFT 5TH GR T2.30	0	Rp10.500
24-2	24392M76M00-220	CIRCLIP,CTSHFT 5TH GR T2.20	0	Rp8.500
24-1	24392M76M00-215	CIRCLIP,CTSHFT 5TH GR T2.15	0	Rp8.500
24-3	24392M76M00-225	CIRCLIP,CTSHFT 5TH GR T2.25	0	Rp10.500
25	24393M76M00-000	CIRCLIP,COUNTERSHAFT BRG,LH	1	Rp6.000
26	24402M76M00-000	RING ,2ND GEAR SYNC	1	Rp305.500
27	24411M67P00-000	HUB,LOW SPEED SYNC	1	Rp149.500
28	24412M76M00-000	HUB,HIGH SPEED SYNC	1	Rp149.000
29	24413M76M00-000	HUB,5TH SPEED SYNC	1	Rp144.000
30	24415M76M00-000	PLATE,5TH SYNC HUB	1	Rp8.500
31	24421M76M00-000	SLEEVE,LOW SPEED SYNC	1	Rp691.500
32	24422M76M00-000	SLEEVE,HIGH SPEED SYNC	1	Rp531.500
33	24423M76M01-000	SLEEVE,5TH SPEED SYNC	1	Rp582.000
34	24431M76M00-000	RING,1ST GEAR SYNC	1	Rp176.000
35	24433M76M00-000	RING,HIGH SPEED GEAR SYNC	2	Rp133.500
36	24435M76M00-000	RING,5TH GEAR SYNC	1	Rp120.000
37	24451M76M00-000	CIRCLIP,LOW SPEED SYNC HUB	1	Rp8.000
38	24452M76M00-000	CIRCLIP,HIGH SPEED SYNC HUB	1	Rp7.000
39-1	24453M76M00-200	CIRCLIP,5TH SYNC HUB T2.00	0	Rp6.000
39-2	24453M76M00-205	CIRCLIP,5TH SYNC HUB T2.05	0	Rp8.000
39-3	24453M76M00-210	CIRCLIP,5TH SYNC HUB T2.10	0	Rp8.000
39-4	24453M76M00-215	CIRCLIP,5TH SYNC HUB T2.15	0	Rp8.000
39-5	24453M76M00-220	CIRCLIP,5TH SYNC HUB T2.20	0	Rp8.000
39-6	24453M76M00-225	CIRCLIP,5TH SYNC HUB T2.25	0	Rp6.000
40	24471-76M00-000	KEY,SYNCHRONIZER	9	Rp19.000
41	24550M68K00-000	SHAFT COMP,T/M REV GEAR	1	Rp72.500
42	24560-76MD2-000	GEAR ,REVERSE IDLER	1	Rp834.000
43	24565M53M00-000	BOLT,REVERSE SHAFT	1	Rp9.500
44	09161M16012-000	WASHER	1	Rp6.500
45	09168M08030-000 SUB: 09168-08030-000	WASHER	1	Rp6.500
