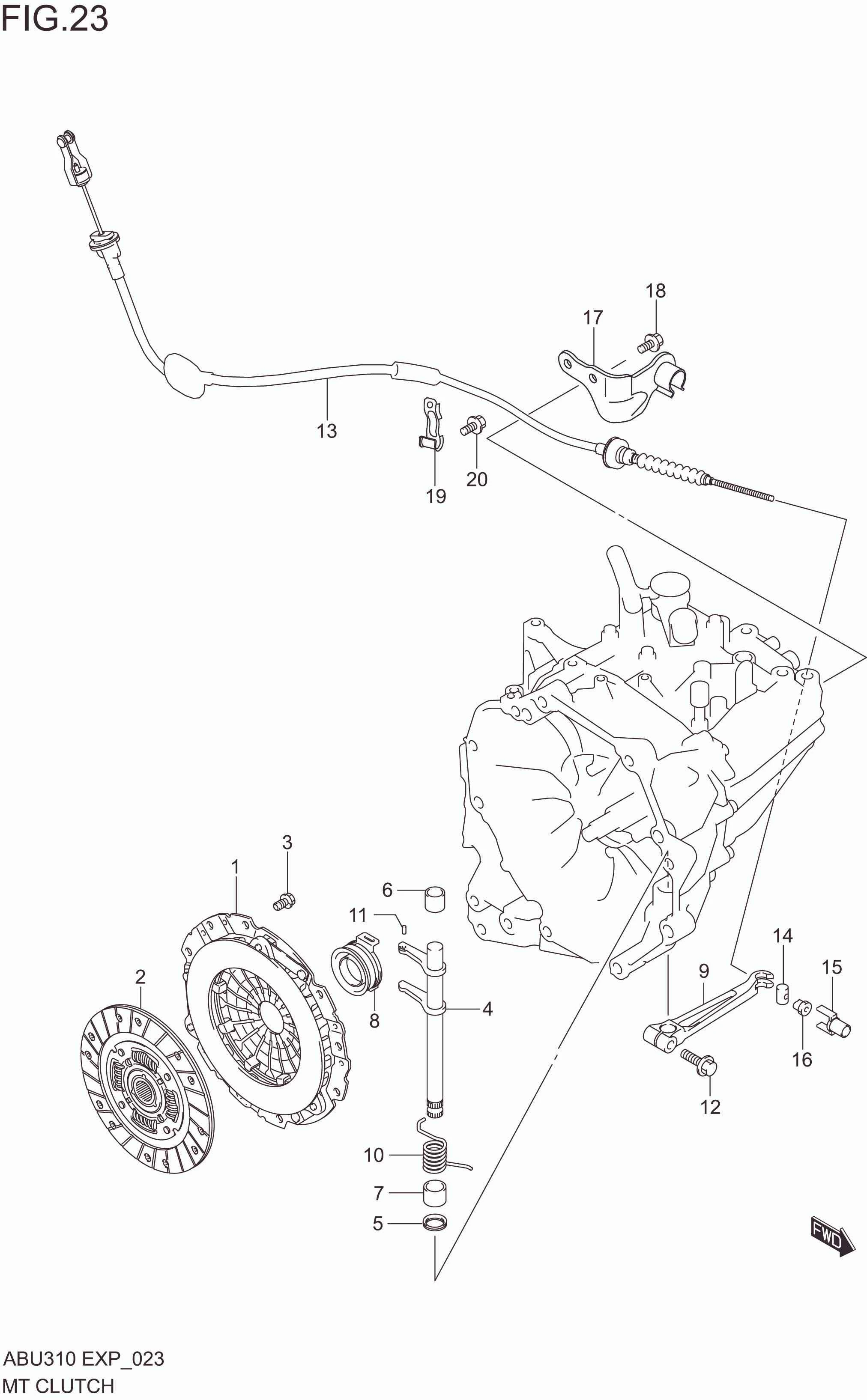

MT CLUTCH (5MT)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	22100M67K40-000	COVER ASSY,CLUTCH	1	Rp364.000
2	22400M76M22-000	DISC COMP,CLUTCH	1	Rp431.000
3	01550-0816A-000 SUB: 09117-08096-000	BOLT	6	Rp6.000
4	23260M68P01-000	SHAFT COMP,CLUTCH RELEASE	1	Rp125.000
5	23263M74L00-000	SEAL,CLUTCH RELEASE SHAFT	1	Rp22.000
6-1	23264M60B00-000	BUSH,CLUTCH RELEASE SHAFT NO.1	1	Rp23.500	VENDOR-1
6-2	23264M60B00-000 SUB: 23264M60B40-000	BUSH,CLUTCH RELEASE SHAFT NO.1	1	Rp23.500	VENDOR-2
7-1	23264M60B20-000	BUSH,CLUTCH RELEASE SHAFT NO.2	1	Rp25.000	VENDOR-1
7-2	23264M60B20-000 SUB: 23264M60B60-000	BUSH,CLUTCH RELEASE SHAFT NO.2	1	Rp25.000	VENDOR-2
8-1	23265M79F00-000	BEARING,CLUTCH RELEASE	1	Rp287.000	VENDOR-1
8-2	23265M79F80-000	BEARING,CLUTCH RELEASE	1	Rp243.500	VENDOR-2
9	23266M76M30-000	ARM,CLUTCH RELEASE	1	Rp155.000
10	23269M76M00-000	SPRING,RELEASE SHAFT RETURN	1	Rp34.000
11	09205-03019-000	PIN,CLUTCH RELEASE FORK	1	Rp9.500
12	01550-0830A-000	BOLT	1	Rp4.000
13	23710M62S21-000	CABLE ASSY, CLUTCH RH	1	Rp175.500
14	23913M68K00-000	PIN,CLUTCH CABLE JOINT	1	Rp8.500
15	23922M75J00-000	CAP,CLUTCH CABLE JOINT LOCK	1	Rp5.500
16	09150-06010-000	NUT	1	Rp4.500
17	23910M68P20-000	BRACKET,CLUTCH CABLE	1	Rp26.000
18	01550-0816A-000	BOLT,CLUTCH CABLE BRACKET	2	Rp6.000
19	23915M62S20-000	CLAMP,CLUTCH CABLE	1	Rp12.000
20	01550-0816A-000	BOLT	1	Rp6.000
