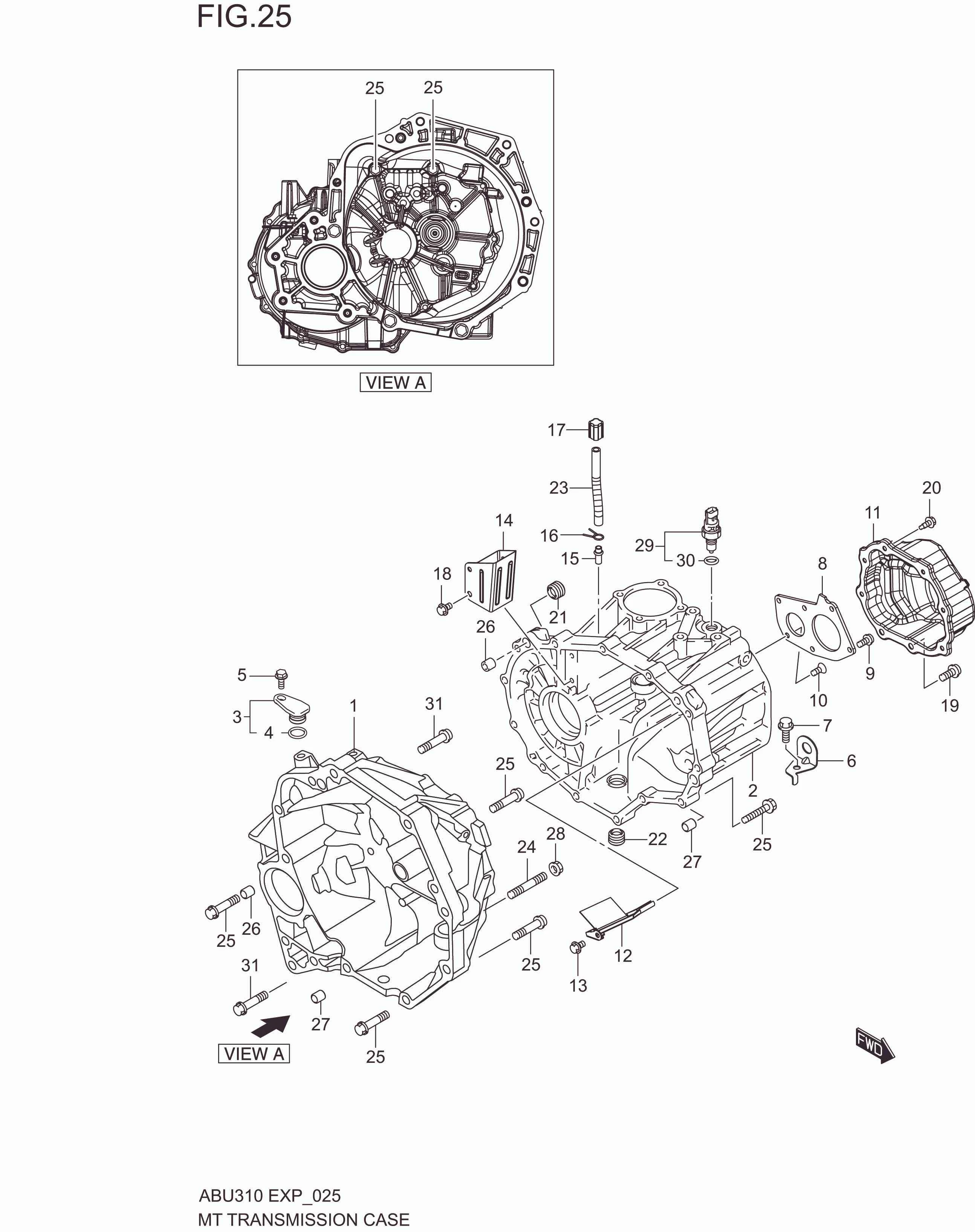

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	24711M62S00-000	CASE,TRANSMISSION RH	1	Rp4.088.000
2	24721M62S00-000	CASE,TRANSMISSION LH	1	Rp4.088.000
3-1	24723M68K01-000	CAP ,SPEEDOMETER SENSOR	1	Rp169.000	VENDOR-1
3-2	24723M68K20-000	CAP ,SPEEDOMETER SENSOR	1	Rp164.000	VENDOR-2
4	09280-15018-000	.O-RING,SPEED SENSOR	1	Rp40.000
5	01550-0616A-000	BOLT	1	Rp3.500
6	24855M75J00-000	HOOK,TRANSAXLE FRONT	1	Rp5.000
7	01550-0816A-000	BOLT	1	Rp6.000
8	24725M74L01-000	PLATE,T/M LEFT CASE	1	Rp72.500
9	24728-65G60-000	SCREW,T/M LEFT CASE PLATE	5	Rp31.000
10	24728M53M00-000	SCREW,T/M LEFT CASE PLATE	1	Rp9.000
11	DISCONTINUE SUB: 24730M75J00-000	COVER ,TRANSMISSION SIDE	1	-
12	24810M68K00-000	GUTTER ,INPUT OIL	1	Rp11.000
13	09103M06518-000	BOLT	1	Rp9.000
14	DISCONTINUE SUB: 24815M75J00-000	PLATE,BREATHER CASE	1	-
15	24821M79F00-000	UNION,BREATHER	1	Rp88.500
16	24826M68K00-000	CLIP,BREATHER HOSE	1	Rp5.000
17	27991M79G00-000	PLUG,BREATHER HOSE	1	Rp35.000
18	09103M06518-000	BOLT	2	Rp9.000
19	DISCONTINUE SUB: 09135-08007-000	BOLT	2	-
20	09135-06027-000	BOLT	6	Rp15.000
21	09246M16017-000	PLUG,T/M OIL DRAIN	1	Rp24.500
22	09246M16009-000 SUB: 09246M16016-000	PLUG,T/M OIL	1	Rp14.500
23	09352M70114-110	HOSE,BREATHER	1	Rp4.000
24	01421-1045A-000	STUD BOLT	1	Rp29.500
25	01550-0840A-000	BOLT	13	Rp3.500
26	04211M13189-000 SUB: 04211-13149-000	PIN	2	Rp9.000
27	04211M13189-000 SUB: 04211-13149-000	PIN	2	Rp9.000
28	08316-1010A-000	NUT	1	Rp3.500
29	37610M68K00-000	SWITCH ASSY,BACK UP LAMP	1	Rp141.000
30	09280-11002-000	.O RING	1	Rp10.500
31	09103M10463-000	BOLT	6	Rp10.500
