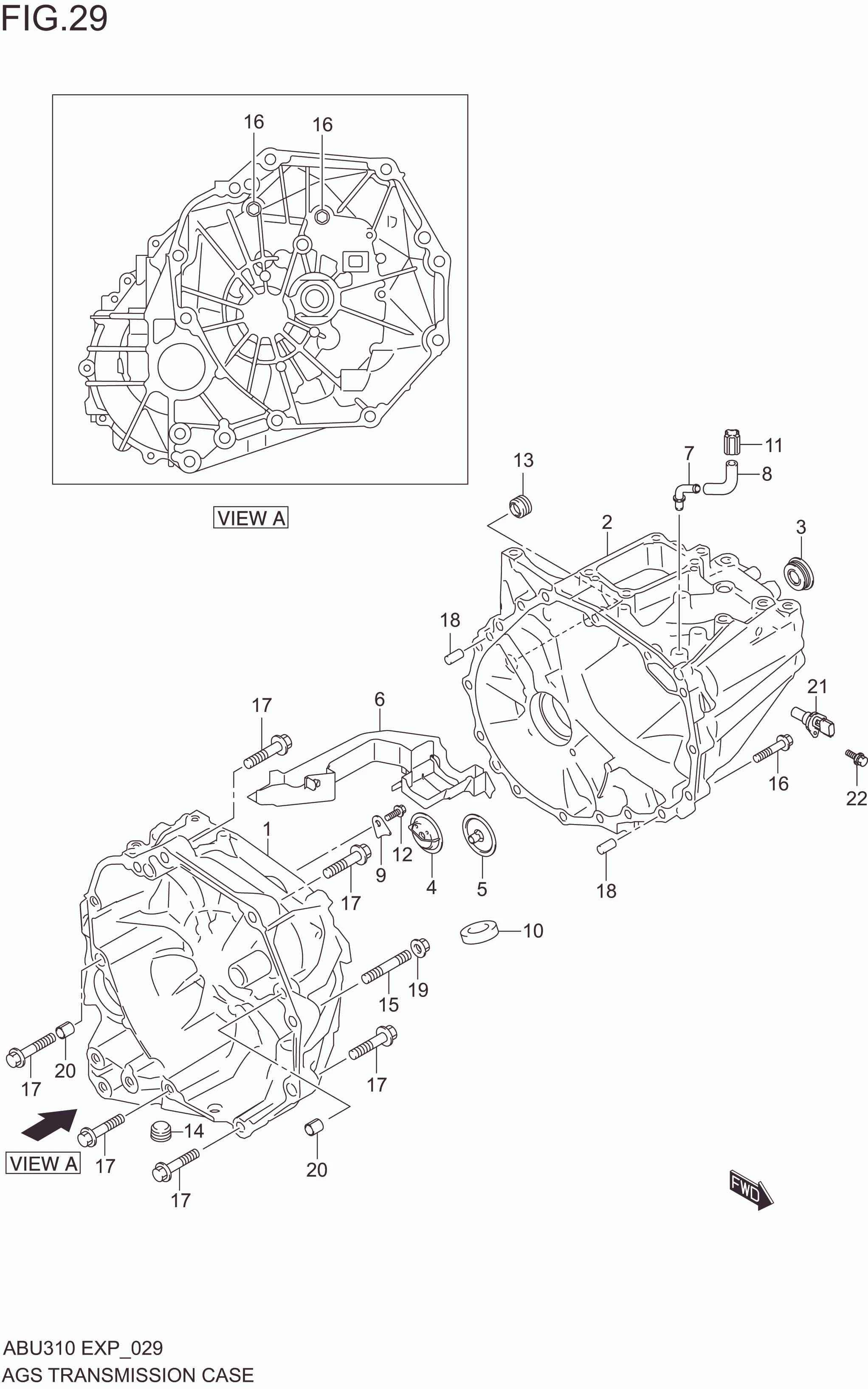

Transmission - Suzuki Spare Part

Ubah pencarian

Atau cari dengan

Preview Engine Transmission Electrical Suspension Body

No	No. Part	Description	Qty	Price Per Pcs
1	24711M69RE0-000	CASE,TRANSAXLE RIGHT	1	Rp3.466.500
2	24721M69RE0-000	CASE,TRANSAXLE LEFT	1	Rp3.424.000
3	24726M76M00-000	PLUG,TRANSAXLE CASE	1	Rp32.000
4	24733M76M00-000	CHANNEL,OIL COUNTERSHAFT	1	Rp11.500
5	24734M76M00-000	CHANNEL,OIL INPUT SHAFT	1	Rp13.000
6	24811M76M00-000	GUTTER,INPUT OIL	1	Rp65.500
7	24821M86J00-000	UNION,BREATHER	1	Rp19.000
8	24825M63J00-000 SUB: 24825M86J00-000	HOSE,BREATHER	1	Rp6.000
9	24852M76M02-000	PLATE,COUNTERSHAFT R BRG	1	Rp9.000
10	24861M76M00-000	MAGNET,OIL CLEANER	1	Rp31.000
11	27991M79G00-000	PLUG,BREATHER	1	Rp35.000
12	09103M06317-000	BOLT	1	Rp6.500
13	09246M16009-000 SUB: 09246M16016-000	PLUG	1	Rp14.500
14	09246M16017-000	PLUG	1	Rp24.500
15	01421-1045A-000	STUD BOLT	1	Rp29.500
16	01550-0840A-000	BOLT	16	Rp3.500
17	09103M10463-000	BOLT	6	Rp10.500
18	04211M13189-000 SUB: 04211-13149-000	PIN	2	Rp9.000
19	08316-1010A-000	NUT	1	Rp3.500
20	11519M67L00-000	PIN	2	Rp6.000
21	38888M76M10-000	SENSOR ASSY,CLUTCH SPEED	1	Rp639.500
22	01550-0616A-000	BOLT,CLUTCH SPEED SENSOR	1	Rp3.500
