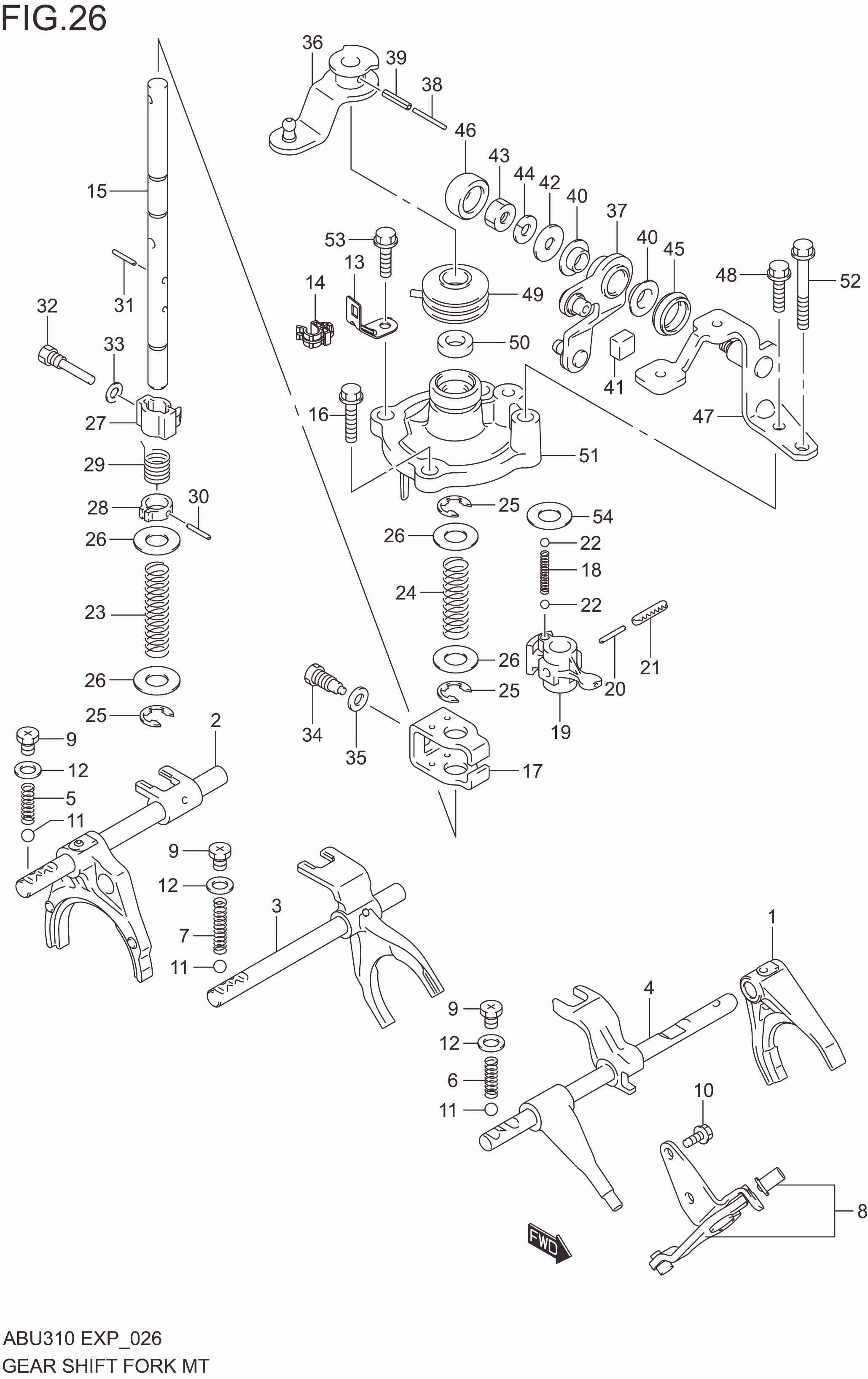

GEAR SHIFT FORK (MT)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	DISCONTINUE SUB: 25231M75J00-000	FORK,5TH GEAR SHIFT	1	-
2-1	25401M68K00-000	SHAFT ,LOW SPEED GEAR SHF	1	Rp320.500	VENDOR-1
2-2	25401M68K20-000	SHAFT ,LOW SPEED GEAR SHF	1	Rp177.000	VENDOR-2
3	25402M68K00-000 SUB: 25402M68K02-000	SHAFT ,HIGH SPEED GEAR SHF	1	Rp353.000
4-1	25403M74L00-000	SHAFT ,5TH & REV GR SHF	1	Rp276.000	VENDOR-1
4-2	25403M74L20-000	SHAFT COMP,5TH & REV GR SHF	1	Rp240.000	VENDOR-2
5	25415M68K00-000	SPRING,LOW SPEED LOCATING	1	Rp4.000
6	25415M68K00-000	SPRING,5TH & REV LOCATING	1	Rp4.000
7	25425M68K00-000	SPRING,HIGH SPEED LOCATING	1	Rp4.000
8	25460M74L00-000	LEVER COMP,REVERSE GEAR SHIFT	1	Rp112.000
9	09128M10001-000 SUB: 09128-10002-000	BOLT	3	Rp5.500
10	01570-0820B-000 SUB: 01570-0820A-000	BOLT	2	Rp31.000
11	06111M10004-000	BALL	3	Rp5.500
12	08322-0110B-000 SUB: 08322-0110A-000	WASHER	3	Rp4.500
13	24726M71M20-000	BRACKET,BREATHER HOSE	1	Rp6.500
14-2	24829M68K20-000	CLAMP,T/M BREATHER HOSE	1	Rp4.500	VENDOR-2
14-1	24829M68K00-000	CLAMP,T/M BREATHER HOSE	1	Rp6.500	VENDOR-1
15	25571M75J00-000	SHAFT,GEAR SHF & SELECT	1	Rp64.000
16	09103M08541-000	BOLT,GEAR SHF GUIDE CASE NO.3	1	Rp10.000
17	25311M68K01-000	PLATE,GEAR SHIFT INTERLOCK	1	Rp72.500
18	25312M68K00-000	SPRING,GEAR SHIFT INTERLOCK	1	Rp7.500
19	25541M68K40-000	LEVER,GEAR SHIFT & SELECT	1	Rp144.000
20	09205M03048-000	PIN	1	Rp4.000
21	09205M06022-000	PIN	1	Rp6.500
22	06111M07004-000 SUB: 06111-07004-000	BALL	2	Rp3.000
23	25576M75J01-000	SPRING,1ST & 2ND SELECT	1	Rp5.000
24	25577M75J00-000	SPRING,5TH & REV SELECT	1	Rp6.500
25	08332-1112A-000 SUB: 09383-12002-000	E-RING	3	Rp14.000
26	08212M14301-000 SUB: 08212-14301-000	WASHER	4	Rp4.500
27	25581M86JA1-000	CAM,5TH & REV GEAR SHIFT	1	Rp40.000
28	25582M75J00-000	GUIDE,5TH & REV GEAR SHF CAM	1	Rp12.000
29	25583M68K00-000	SPRING,CAM GUIDE RETURN	1	Rp6.500
30	DISCONTINUE SUB: 09205-03035-000	PIN	1	-
31	09205M04025-000	PIN	1	Rp7.500
32	25584M62S00-000	BOLT,5TH TO REV INTLK GUIDE	1	Rp31.500
33	08321M01083-000 SUB: 08321-0108A-000	WASHER	1	Rp11.000
34	25321-74PE0-000	BOLT,GEAR SHF INTERLOCK	1	Rp47.000
35	08322-0110B-000 SUB: 08322-0110A-000	WASHER,GEAR SHF INTLK BOLT	1	Rp4.500
36	25610M68K42-000	LEVER ,SHIFT CABLE	1	Rp71.500
37-1	25620M62S00-000	LEVER ,SELECT CABLE	1	Rp71.500	VENDOR-1
37-2	25620M62S00-000	LEVER ,SELECT CABLE	1	Rp71.500	VENDOR-2
38	09205M03049-000	PIN	1	Rp6.500
39	09205M06023-000	PIN	1	Rp4.000
40	25558M75J00-000	BUSH,SELECT LEVER BOSS	2	Rp6.500
41	25559M75J01-000	BUSH,SELECT LEVER SHAFT	1	Rp12.500
42	09160-08151-000	WASHER,SELECT LEVER	1	Rp16.500
43	08310-0008A-000	NUT	1	Rp12.500
44	08321M01083-000 SUB: 08321-0108A-000	WASHER	1	Rp11.000
45	25624M68K00-000	BOOT,SELECT LEVER INSIDE	1	Rp6.000
46	25625M68K00-000	BOOT,SELECT LEVER OUTSIDE	1	Rp6.000
47-1	25630M62S00-000	BRACKET ,SELECT & CLUTCH	1	Rp68.000	VENDOR-1
47-2	25630M62S00-000	BRACKET ,SELECT & CLUTCH	1	Rp68.000	VENDOR-2
48	01550-0825A-000 SUB: 01550-0825B-000	BOLT	1	Rp3.500
49	25651M68K00-000	BOOT,SHIFT & SELECT SFT OIL	1	Rp10.500
50	09283M14005-000 SUB: 09283-14005-000	SEAL,GEAR SHF SHAFT OIL	1	Rp9.000
51	25573M75J01-000	CASE,GEAR SHF GUIDE	1	Rp127.000
52	09103-08366-000	BOLT	1	Rp25.500
53	01550-0825A-000 SUB: 01550-0825B-000	BOLT	2	Rp3.500
54	08322M0108A-000 SUB: 08322-0108A-000	WASHER	1	Rp5.500
