Suzuki S-Presso

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL MT CLUTCH (5MT)MT TRANSMISSION GEARMT TRANSMISSION CASE GEAR SHIFT FORK (MT)AGS CLUTCH (5AGS)AGS TRANSMISSION GEARAGS TRANSMISSION CASEAGS GEAR SHIFT FORKAGS ACTUATORGEAR SHIFT CONTROL (5MT)SELECT LEVER (5AGS)FRONT DIFFERENTIAL GEAR (5MT)FRONT DIFFERENTIAL GEAR (5AGS)

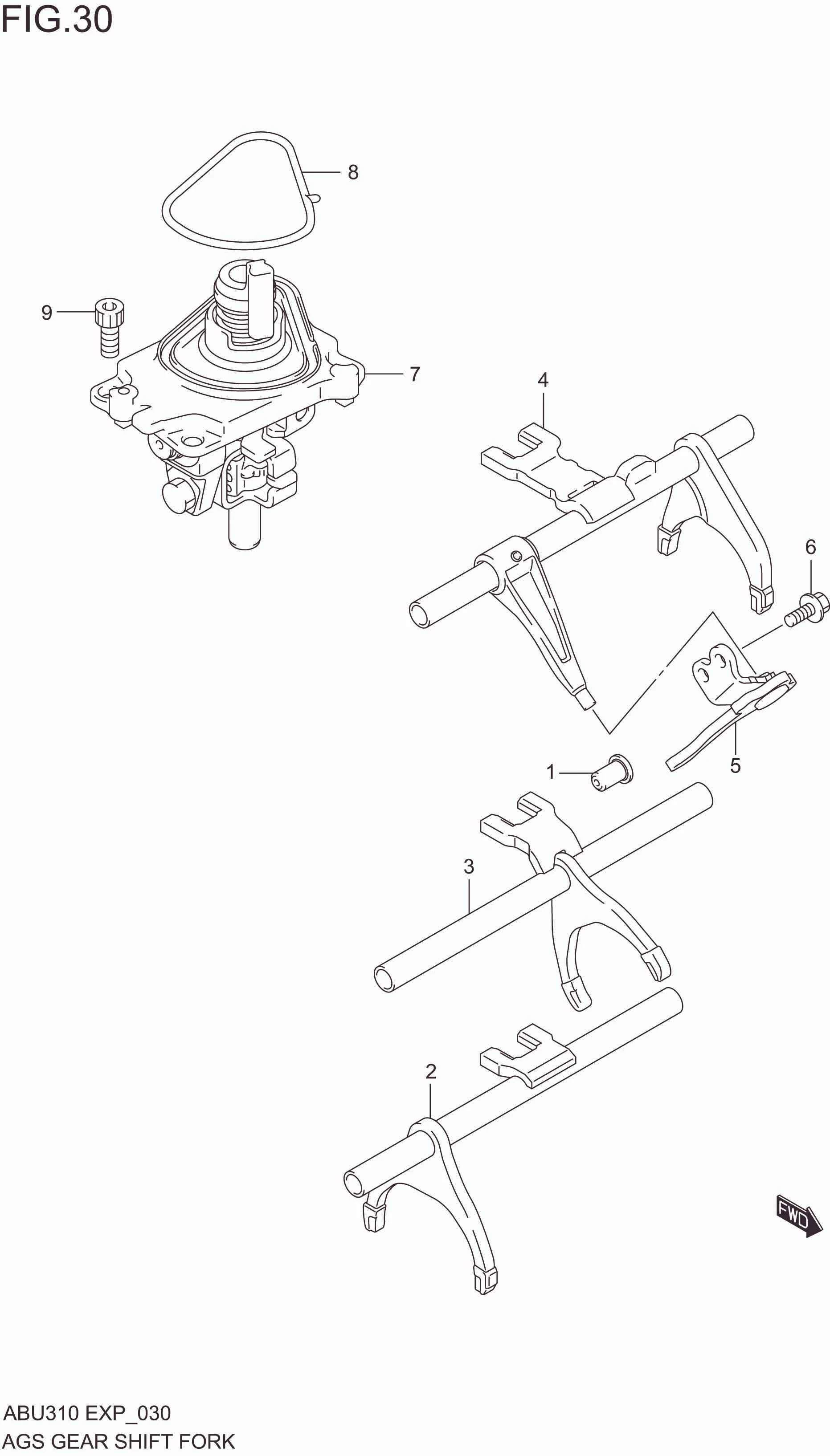

AGS GEAR SHIFT FORK

AGS GEAR SHIFT FORK
No No. Part Description Qty Price Per Pcs Remarks
1-1 25250M53M00-000 LOCATING ,REV SHIFT 1 Rp11.000 VENDOR-1
1-2 25250M53M20-000 LOCATING ,REV SHIFT 1 Rp20.500 VENDOR-2
2-1 25401M68P20-000
SUB: 25401M68P00-000		 SHAFT,LOW SPEED GEAR SHF 1 Rp554.500 VENDOR-1
2-2 25401M68P20-000 SHAFT ,LOW SPEED GEAR SHF 1 Rp554.500 VENDOR-2
3-1 25402M68P40-000 SHAFT ,HIGH SPEED GEAR SHF 1 Rp347.500 VENDOR-1
3-2 25402M68P00-000 SHAFT COMP,HIGH SPEED GEAR SHF 1 Rp515.000 VENDOR-2
4-1 25403M68P40-000 SHAFT ,5TH & REV GR SHF 1 Rp562.000 VENDOR-1
4-2 25403M68PE0-000 SHAFT ,5TH & REV GR SHF 1 Rp675.000 VENDOR-2
5-1 25460M68P00-000 LEVER ,REVERSE GEAR SHIFT 1 Rp61.500 VENDOR-1
5-2 25460M68P20-000 LEVER ,REVERSE GEAR SHIFT 1 Rp55.000 VENDOR-2
6 09103M06317-000 BOLT 2 Rp6.500
7 25010M66RE2-000 SHAFT ASSY,GEAR SHIFT & SELECT 1 Rp3.364.000
8 25574M76MF0-000
SUB: 25574M76ME0-000		 O-RING,GUIDE CASE 1 Rp258.500
9 09103M08541-000 BOLT 4 Rp10.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
