Suzuki S-Presso

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL MT CLUTCH (5MT)MT TRANSMISSION GEARMT TRANSMISSION CASE GEAR SHIFT FORK (MT)AGS CLUTCH (5AGS)AGS TRANSMISSION GEARAGS TRANSMISSION CASEAGS GEAR SHIFT FORKAGS ACTUATORGEAR SHIFT CONTROL (5MT)SELECT LEVER (5AGS)FRONT DIFFERENTIAL GEAR (5MT)FRONT DIFFERENTIAL GEAR (5AGS)

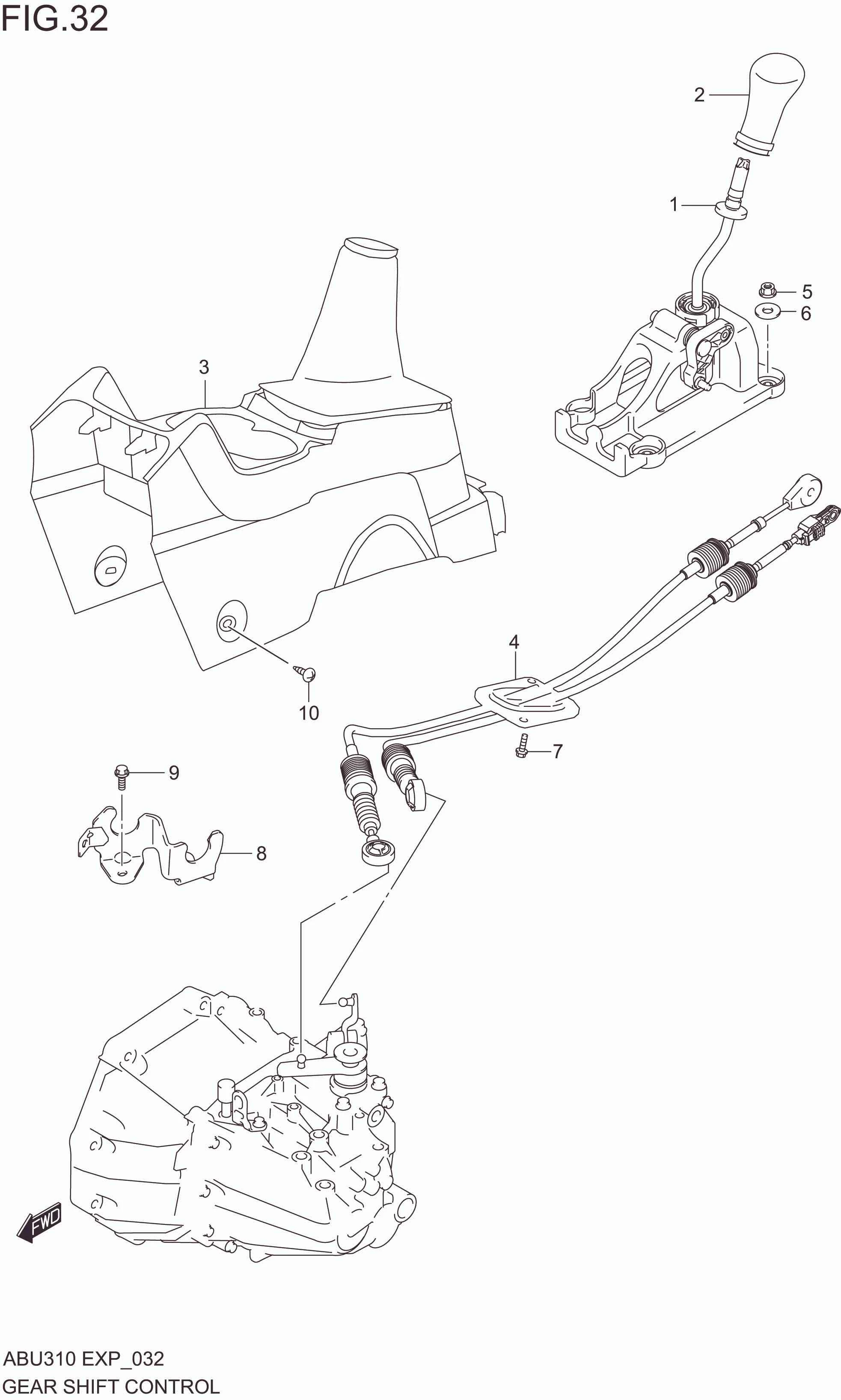

GEAR SHIFT CONTROL (5MT)

GEAR SHIFT CONTROL (5MT)
No No. Part Description Qty Price Per Pcs Remarks
1 28101M62S00-000 LEVER S/ASSY,GEAR SHF CONT 1 Rp408.000
2 28113M62S01-5PK KNOB,GEAR SHIFT CONTROL 1 Rp61.500
3 28130M62S01-5PK BOOT ,SHIFT LEVER 1 Rp235.000
4 28300M62S00-000 CABLE ASSY,SHIFT & SELECT CONT 1 Rp653.500
5 09159-08127-000
SUB: 09159M08153-000		 NUT 4 Rp11.000
6 09160-08151-000 WASHER 4 Rp16.500
7 02162-0620A-000 BOLT 2 Rp5.500
8 28390M67L20-000 BRACKET,T/M CONT CABLE 1 Rp60.500
9 01550-0820A-000 BOLT 2 Rp5.500
10 03141-0516B-000
SUB: 03141-0512A-000		 SCREW 2 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
