Suzuki S-Presso

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL MT CLUTCH (5MT)MT TRANSMISSION GEAR MT TRANSMISSION CASE GEAR SHIFT FORK (MT)AGS CLUTCH (5AGS)AGS TRANSMISSION GEAR AGS TRANSMISSION CASE AGS GEAR SHIFT FORK AGS ACTUATOR GEAR SHIFT CONTROL (5MT)SELECT LEVER (5AGS)FRONT DIFFERENTIAL GEAR (5MT)FRONT DIFFERENTIAL GEAR (5AGS)

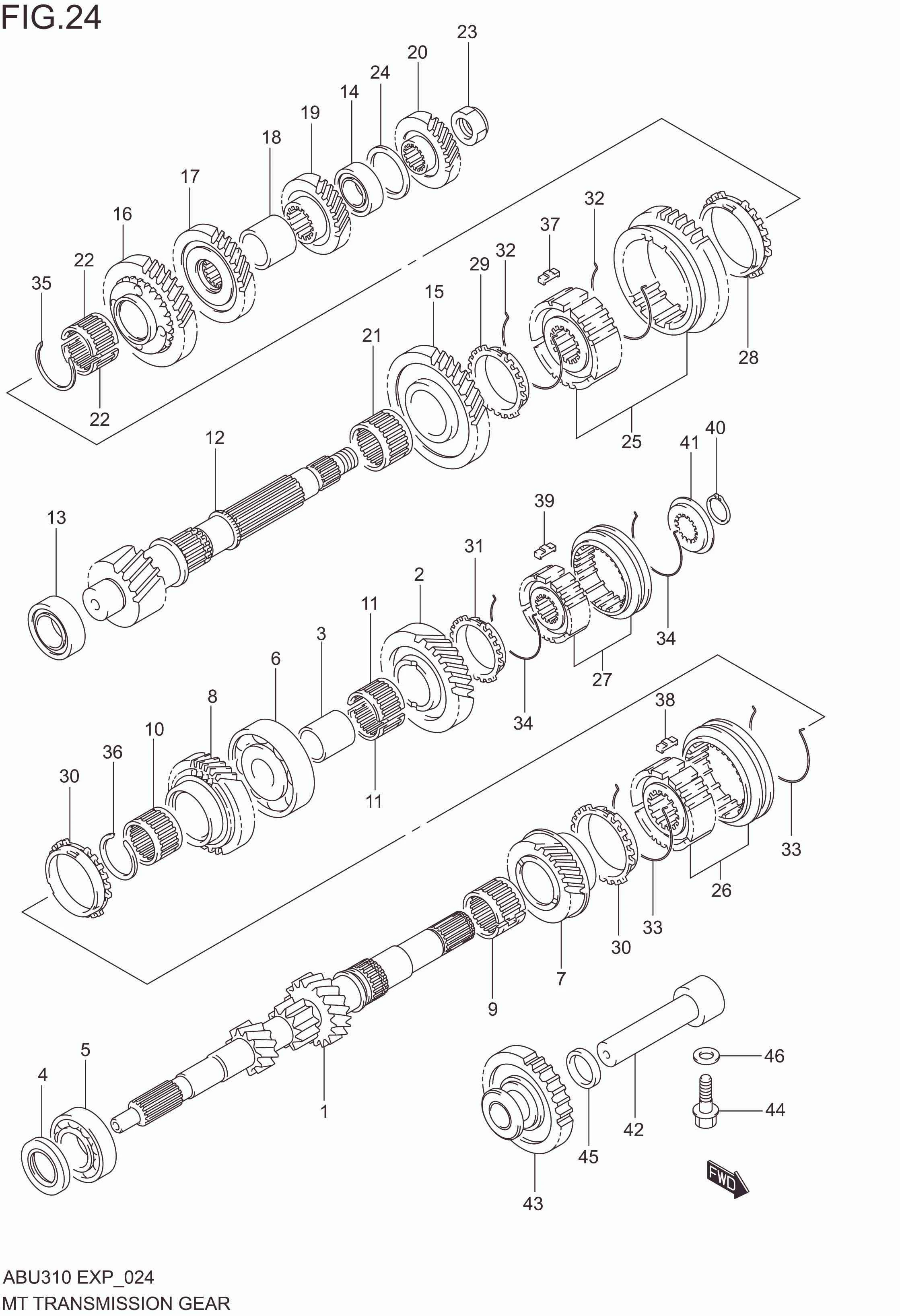

MT TRANSMISSION GEAR

No	No. Part	Description	Qty	Price Per Pcs
1	24111M62S00-000	SHAFT,TRANSMISSION INPUT	1	Rp1.321.000
2	24114M59K00-000	GEAR,INPUT SHAFT 5TH	1	Rp1.097.000
3	24119M60B51-000 SUB: 24119M68K00-000	SPACER,INPUT SHAFT 5TH GEAR	1	Rp96.000
4	24151M68K00-000	SEAL,INPUT SHAFT OIL	1	Rp18.000
5	24155M76M00-000	BEARING,INPUT SHAFT RH	1	Rp349.000
6	24165-67LA0-000 SUB: 24165M68K20-000	BEARING,INPUT SHAFT,LH	1	Rp349.000
7	24230M68K02-000	GEAR ,INPUT SHAFT 3RD	1	Rp1.095.500
8	24240-75F20-000	GEAR ,INPUT SHAFT 4TH	1	Rp1.295.000
9	24283M68K20-000 SUB: 24283M68K00-000	BEARING,3RD GEAR NEEDLE	1	Rp56.500
10	24284M60B30-000 SUB: 24284M75J00-000	BEARING,4TH GEAR NEEDLE	1	Rp33.500
11	24285M68K00-000	BEARING,5TH GEAR NEEDLE	2	Rp35.500
12	24131M68K20-000	SHAFT,TRANSMISSION COUNTER	1	Rp2.446.000
13	24175M68K40-000 SUB: 24175M68K00-000	BEARING ASSY,COUNTERSHAFT,RH	1	Rp283.500
14	24185M68K00-000	BEARING ASSY,COUNTERSHAFT,LH	1	Rp283.500
15	24311M59K00-000	GEAR,COUNTERSHAFT 1ST	1	Rp595.000
16	24321M62S00-000	GEAR,COUNTERSHAFT 2ND	1	Rp541.500
17	24331M68K01-000	GEAR,COUNTERSHAFT 3RD	1	Rp353.000
18	DISCONTINUE SUB: 24336M75J00-000	SPACER,3RD & 4TH GEAR	1	-
19	24341M68K00-000	GEAR,COUNTERSHAFT 4TH	1	Rp1.095.500
20	24351M59K00-000	GEAR,COUNTERSHAFT 5TH	1	Rp446.000
21	24381M68K20-000 SUB: 24381M68K00-000	BEARING,1ST GEAR NDL	1	Rp57.000
22	24382M68K20-000 SUB: 24382M68K00-000	BEARING,2ND GEAR NDL	2	Rp44.500
23	09159M16025-000	NUT	1	Rp13.000
24-14	09181M33009-000 SUB: 09181-33009-000	SHIM,BEARING SET T0.95	1	Rp8.500
24-13	09181M33008-000 SUB: 09181-33008-000	SHIM,BEARING SET T0.90	1	Rp8.500
24-12	09181M33007-000 SUB: 09181-33007-000	SHIM,BEARING SET T0.85	1	Rp8.500
24-11	09181M33006-000 SUB: 09181-33006-000	SHIM,BEARING SET T0.80	1	Rp8.500
24-10	09181M33005-000 SUB: 09181-33005-000	SHIM,BEARING SET T0.75	1	Rp8.500
24-9	09181M33004-000 SUB: 09181-33004-000	SHIM,BEARING SET T0.70	1	Rp8.500
24-7	09181M33002-000 SUB: 09181-33002-000	SHIM,BEARING SET T0.60	1	Rp8.500
24-6	09181M33001-000 SUB: 09181-33001-000	SHIM,BEARING SET T0.55	1	Rp8.500
24-5	DISCONTINUE SUB: 09170M33421-050	SHIM,BEARING SET T0.50	1	-
24-4	09160M33006-000 SUB: 09160-33006-000	SHIM,BEARING SET T1.15	1	Rp11.000
24-3	09160M33005-000 SUB: 09160-33005-000	SHIM,BEARING SET T1.10	1	Rp10.500
24-2	09160M33004-000 SUB: 09160-33004-000	SHIM,BEARING SET T1.05	1	Rp11.000
24-1	09160M33003-000 SUB: 09160-33003-000	SHIM,BEARING SET T1.00	1	Rp11.000
24-8	09181M33003-000 SUB: 09181-33003-000	SHIM,BEARING SET T0.65	1	Rp8.500
25	24400M62S00-000	HUB ASSY,LOW SPEED SYNC	1	Rp536.500
26	24410M68K20-000	HUB ASSY,HIGH SPEED SYNC	1	Rp1.180.500
27	DISCONTINUE SUB: 24420M68K20-000	HUB ASSY,5TH SPEED SYNC	1	-
28	24430M74L00-000	RING ,2ND GEAR SYNC	1	Rp603.500
29	24431M67K02-000	RING,1ST GEAR SYNC	1	Rp160.000
30	24432M67K02-000	RING,HIGH SPEED SYNC	2	Rp141.000
31	24434M67K03-000	RING,5TH SPEED SYNC	1	Rp65.000
32	24441-60B00-000	SPRING,LOW SPEED SYNC	2	Rp22.000
33	24442-60B00-000	SPRING,HIGH SPEED SYNC	2	Rp21.000
34	24443-60B50-000	SPRING,5TH SPEED SYNC	2	Rp19.500
35	24452M68K00-000	CIRCLIP,HIGH SPEED SYNC HUB	1	Rp8.500
36	24452M68K00-000	CIRCLIP,LOW SPEED SYNC HUB	1	Rp8.500
37	24471-60B00-000	KEY,LOW SPEED SYNC	3	Rp29.000
38	24472-60B00-000	KEY,HIGH SPEED SYNC	3	Rp25.000
39	24473-72J00-000	KEY,5TH SPEED SYNCHRONIZER	3	Rp28.500
40	09380M19005-000	CIRCLIP,5TH SPEED SYNC HUB	1	Rp5.500
41	24415M67K20-000	PLATE,5TH SYNC HUB	1	Rp11.500
42	24550M68K00-000	SHAFT COMP,T/M REV GEAR	1	Rp72.500
43	24560M62S00-000	GEAR ,REVERSE IDLER	1	Rp404.000
44	24565M53M00-000	BOLT,REVERSE SHAFT	1	Rp9.500
45	09161M16012-000	WASHER,REVERSE GEAR SHAFT	1	Rp6.500
46	09168M08030-000 SUB: 09168-08030-000	WASHER,REVERSE SHAFT BOLT	1	Rp6.500
