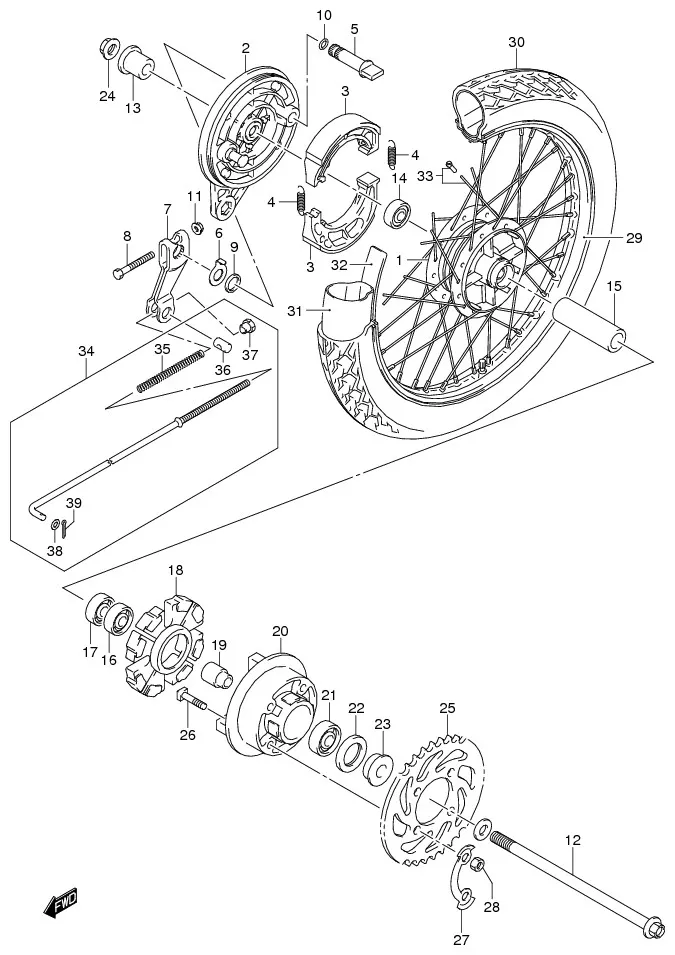

| 1 |
64110-35355-000
SUB: 64110B35355N000 |
HUB, REAR WHEEL |
1 |
Rp206.000 |
| |
| 2 |
64210-46005-000
SUB: 64210-46013-000 |
PANEL, REAR BRAKE ANCHOR |
1 |
Rp71.000 |
| |
| 5 |
64441-21D00-000 |
SHAFT, BRAKE CAM |
1 |
Rp34.500 |
| |
| 7 |
64451-20G00-000
SUB: 64451B20G00N000 |
LEVER, BRAKE CAM |
1 |
Rp9.500 |
| |
| 9 |
09160-14054-000
SUB: 09160B14054N000 |
WASHER |
1 |
Rp12.500 |
| |
| 11 |
08316-1006A-000
SUB: 08316B1006BN000 |
NUT |
1 |
Rp2.000 |
| |
| 12 |
64711-16H00-000
SUB: 64711-31C20L000 |
AXLE, REAR |
1 |
Rp24.500 |
| |
| 13 |
64741-07H00-000
SUB: 64741B07H00N000 |
SPACER, REAR AXLE RH |
1 |
Rp8.500 |
| |
| 14 |
08140-63017-000
SUB: 08140B63017N000 |
BEARING, RH |
1 |
Rp32.000 |
| |
| 15 |
09180-12143-000
SUB: 09180-12143L000 |
SPACER, BEARING (12.5X19X48) |
1 |
Rp9.000 |
| |
| 16 |
08140-62017-000
SUB: 08140B62017N000 |
BEARING, LH |
1 |
Rp25.000 |
| |
| 17 |
08113-62017-000
SUB: 08110B62017N000 |
BEARING, LH INNER |
1 |
Rp23.500 |
| |
| 18 |
64651-30D00-000
SUB: 64651B30D00N000 |
ABSORBER, REAR HUB SHOCK |
1 |
Rp27.000 |
| |
| 19 |
64733-43000-000
SUB: 64733B43000N000 |
RETAINER, REAR SPROCKET DRUM |
1 |
Rp15.500 |
| |
| 20 |
64611-01001-000
SUB: 64611B36G00N000 |
DRUM, SPROCKET MOUNTING |
1 |
Rp122.000 |
| |
| 21 |
08113-62037L000 |
BEARING |
1 |
Rp34.000 |
| |
| 22 |
09285-25008-000
SUB: 09285-25003L000 |
SEAL, OIL (25X40X6) |
1 |
Rp8.000 |
| |
| 23 |
64721-20G00-000
SUB: 64721B20G00N000 |
SPACER, RR SPROCKET DRUM |
1 |
Rp23.500 |
| |
| 24 |
08319-3112A-000
SUB: 08319B3112AN000 |
NUT |
1 |
Rp7.000 |
| |
| 25 |
64511-28F10-000
SUB: 64511B28F10N000 |
SPROCKET, REAR |
1 |
Rp118.000 |
NT:36 | |
| 26 |
09105-08011-000
SUB: 09105-08011L000 |
BOLT, REAR SPROCKET (8X36) |
4 |
Rp6.500 |
| |
| 27 |
09169-08011-000
SUB: 09169B08011N000 |
LOCK WASHER |
2 |
Rp3.500 |
| |
| 28 |
08310-0008B-000
SUB: 08310B0008BN000 |
NUT |
4 |
Rp15.500 |
| |
| 29 |
65311-16H40-000
SUB: 65311-46730L000 |
WHEEL RIM (1.40X17) |
1 |
Rp348.500 |
| |
| 30 |
65110-45H10-000
SUB: 65110B45H10N000 |
TIRE, REAR |
1 |
Rp309.500 |
80/90-17M/C 44P | |
| 31 |
65200-45H10-000
SUB: 65200B45H10N000 |
TUBE ASSY, INNER |
1 |
Rp95.500 |
| |
| 32 |
65261B45H10N000 |
PROTECTOR, INNER TUBE |
1 |
- |
| |
| 33 |
65320-03021-000
SUB: 65320-03021L000 |
SPOKE SET, REAR WHEEL |
1 |
Rp43.500 |
| |
| 34 |
43300-45H10-000
SUB: 43300B45H00N000 |
ROD ASSY, REAR BRAKE |
1 |
Rp37.500 |
| |
| 35 |
09440-09004-000
SUB: 09440-09004L000 |
.SPRING |
1 |
Rp12.500 |
| |
| 36 |
09209-11002-000
SUB: 09209B11002N000 |
.PIN |
1 |
Rp7.500 |
| |
| 37 |
09150-06010-000
SUB: 09150B06010N000 |
.NUT |
1 |
Rp4.500 |
| |
| 38 |
08322-0105A-000
SUB: 08322B0105AN000 |
.WASHER |
1 |
Rp3.000 |
| |
| 39 |
04111-2020A-000 |
.PIN, COTTER |
1 |
Rp5.000 |
| |
