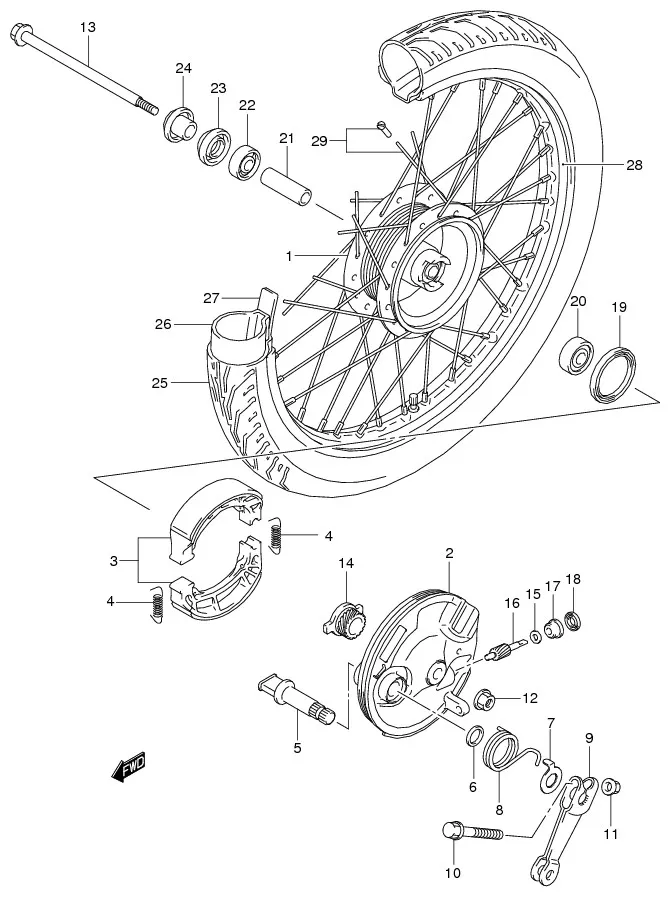

FIG.45 FRONT WHEEL (FW110DL0)

FIG.45 FRONT WHEEL (FW110DL0)
No No. Part Description Qty Price Per Pcs Remarks
1 54110-35401-13L
SUB: 54110-35401L000		 HUB, FRONT WHEEL 1 Rp147.000
2 54210-45H20-000
SUB: 54210B45H20N000		 PANEL, FRONT BRAKE ANCHOR 1 Rp155.500
3 54400-23820-000
SUB: 54400B23820N000		 SHOE, BRAKE 2 Rp61.000
4 09443-07025-000
SUB: 09443B07025N000		 SPRING 2 Rp3.500
5 DISCONTINUE
SUB: 54441-23F00-000		 SHAFT, BRAKE CAM 1 -
6 09280-14011-000 SEAL, BRAKE CAM DUST 1 Rp7.500
7 DISCONTINUE
SUB: 54492B35400N000		 PLATE, BRAKE LINING 1 -
8 09448-30009-000
SUB: 09448-30009-A05		 SPRING 1 Rp4.500
9 54451-45H00-000
SUB: 54451B45H00N000		 LEVER, BRAKE CAM 1 Rp17.500
10 DISCONTINUE
SUB: 09103B06045N000		 BOLT (6X32) 1 -
13 54711-13H00-000
SUB: 54711B04701N000		 AXLE, FRONT 1 Rp13.000
14 54611-45H30-000
SUB: 54611B45H30N000		 GEAR, SPEEDOMETER DRIVEN 1 Rp12.500 NT:22
15 DISCONTINUE
SUB: 09160-05001-000		 WASHER (5.1X9X0.4) 1 -
16 54621-45H30-000
SUB: 54621B45H30N000		 GEAR, SPEEDOMETER DRIVEN 1 Rp100.500 NT:9
17 54632-41H00-000
SUB: 54632B41H00N000		 BUSHING, DRIVEN GEAR OUTER 1 Rp4.000
18 54651-41H00-000
SUB: 54651B41H00N000		 SEAL, OIL 1 Rp7.000
19 09283-43004-000 SEAL, OIL (43X58X7) 1 Rp66.500
20 08143-63007-000
SUB: 08143-63007L000		 BEARING, LH 1 Rp29.500
21 54731-09G00-000
SUB: 54731B09G00N000		 SPACER, BEARING 1 Rp10.500
22 08113-62007-000
SUB: 08113-62007L000		 BEARING, RH 1 Rp24.000
23 09284-15001-000
SUB: 09284-15001L000		 SEAL, OIL (15X31X5) 1 Rp4.500
24 54740-26101-000
SUB: 54740B26101N000		 SPACER, AXLE RH 1 Rp106.000
25 55110-45H10-000
SUB: 55110B45H10N000		 TIRE, FRONT 1 Rp253.500 70/90-17M/C 38P
26 DISCONTINUE
SUB: 55200B45H10N000		 TUBE ASSY, WHEEL INNER 1 -
27 DISCONTINUE
SUB: 55261B38D20N000		 PROTECTOR, INNER TUBE 1 -
28 55311-09G40-000
SUB: 55311B07030N000		 RIM, WHEEL 1.20X17 1 Rp351.000
29 DISCONTINUE
SUB: 55320-01012L000		 SPOKE ASSY, FRONT 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
