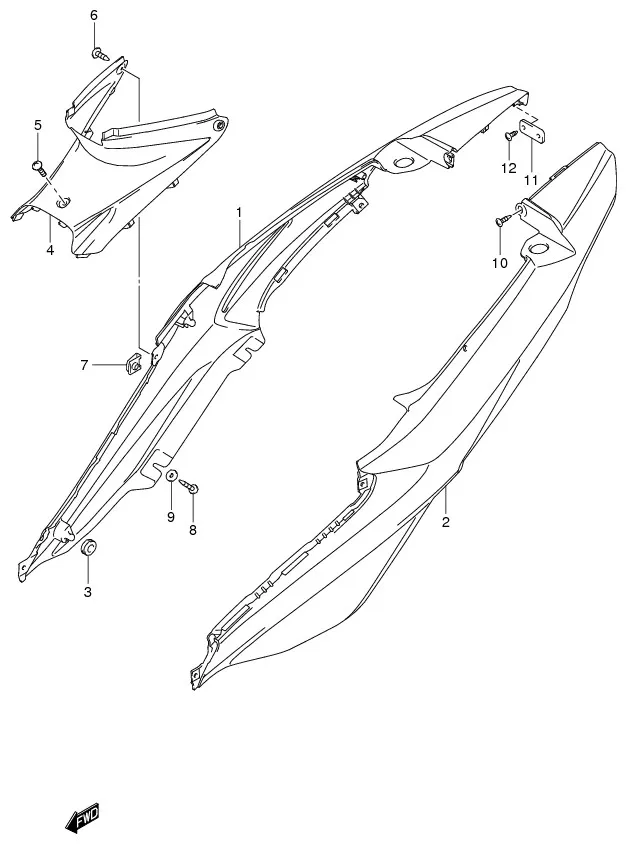

FIG.31 FRAME COVER

FIG.31 FRAME COVER
No No. Part Description Qty Price Per Pcs Remarks
1-2 47111-45H00-YUJ
SUB: 47111B45H00NYUJ		 COVER,FRAME,RH MACHO BRIGHT BLUE 1 Rp126.000
1-3 47111-45H00-YVU
SUB: 47111B45H00NYVU		 COVER,FRAME,RH TITAN BLACK 1 Rp126.000
1-4 47111-45H02-YTB
SUB: 47111B45H02NYTB		 COVER,FRAME,RH SUMMER RED 1 Rp154.000
1-5 47111-45H02-YVU
SUB: 47111B45H02NYVU		 COVER,FRAME,RH TITAN BLACK 1 Rp121.000
1-6 47111-45H02-YUH
SUB: 47111B45H02NYUH		 COVER,FRAME,RH BRILLIANT WHITE 1 Rp126.000
1-7 47111-45H02-YVE
SUB: 47111B45H02NYVE		 COVER,FRAME,RH MARINE BLUE 1 Rp126.000
1-1 47111-45H00-YTB
SUB: 47111B45H00NYTB		 COVER,FRAME,RH SUMMER RED 1 Rp154.000
2-5 47211-45H02-YVU
SUB: 47211B45H02NYVU		 COVER,FRAME,LH TITAN BLACK 1 Rp121.000
2-7 47211-45H02-YVE
SUB: 47211B45H02NYVE		 COVER,FRAME,LH MARINE BLUE 1 Rp126.000
2-6 47211-45H02-YUH
SUB: 47211B45H02NYUH		 COVER,FRAME,LH BRILLIANT WHITE 1 Rp126.000
2-4 47211-45H02-YTB
SUB: 47211B45H02NYTB		 COVER,FRAME,LH SUMMER RED 1 Rp154.000
2-3 47211-45H00-YVU
SUB: 47211B45H00NYVU		 COVER,FRAME,LH TITAN BLACK 1 Rp126.000
2-2 47211-45H00-YUJ
SUB: 47211B45H00NYUJ		 COVER,FRAME,LH MACHO BRIGHT BLUE 1 Rp126.000
2-1 47211-45H00-YTB
SUB: 47211B45H00NYTB		 COVER,FRAME,LH SUMMER RED 1 Rp154.000
3 48169-12JA0-000
SUB: 09320B08018N000		 CUSHION 4 Rp15.000
4 47511-45H00-000
SUB: 47511B45H00N000		 COVER, FRONT 1 Rp40.000
5 47135-45H00-000
SUB: 47135B45H00N000		 SCREW, FRONT 1 Rp8.000
6 03541-0512B-000
SUB: 03541B0512BN000		 SCREW, SIDE 2 Rp4.000
7 09148-05045-000 NUT 5 Rp4.000
9 47245-07H00-000 WASHER 4 Rp40.000
10 03541-1516A-000
SUB: 03541B1516AN000		 SCREW 1 Rp5.500
11 47141-07H00-000
SUB: 47141B07H00N000		 PLATE, REAR 1 Rp9.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
