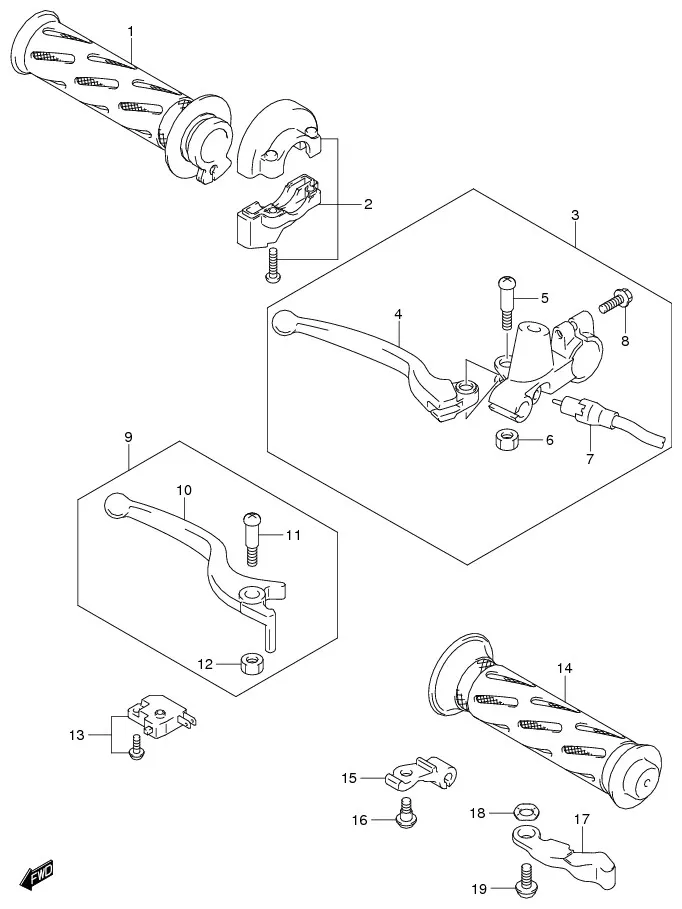

FIG.37 HANDLE LEVER

FIG.37 HANDLE LEVER
No No. Part Description Qty Price Per Pcs Remarks
1 57110-09G10-000
SUB: 57110B09G10N000		 GRIP, THROTTLE 1 Rp42.500
2 57100-09G11-000
SUB: 57100B09G11N000		 CASE ASSY, THROTTLE 1 Rp19.500
3 DISCONTINUE
SUB: 57300B41H10N000		 LEVER ASSY, RH 1 - FW110DL0
4 57421-09G00-000
SUB: 57421B09G00N000		 .LEVER 1 Rp99.500 FW110DL0
5 57431-09G20-000
SUB: 57431B09G20N000		 .BOLT, PIVOT 1 Rp7.000 FW110DL0
6 08319-2106A-000
SUB: 08319B2106AN000		 .NUT 1 Rp5.000 FW110DL0
7 57470-10J40-000
SUB: 57470B10J10N000		 .SWITCH ASSY, BRAKE 1 Rp46.500 FW110DL0
8 DISCONTINUE
SUB: 01550B0625AN000		 .BOLT, HOLDER 1 - FW110DL0
9 57300-46G40-000
SUB: 57300B46G40N000		 LEVER, BRAKE 1 Rp54.500 FW110SDL0/SCDL0
10 57421-46G00-000
SUB: 57421B46G00N000		 .LEVER 1 Rp38.000 FW110SDL0/SCDL0
11 57431-29C20-000
SUB: 57431B29C20N000		 .BOLT 1 Rp5.000 FW110SDL0/SCDL0
13 57460-41H00-000
SUB: 57460B41H00N000		 SWITCH, STOP 1 Rp69.500 FW110SDL0/SCDL0
14 57211-09G00-000
SUB: 57211B09G00N000		 GRIP, LH 1 Rp30.000
15 DISCONTINUE
SUB: 58711B09G00N000		 HOLDER, STARTER CABLE 1 -
16 09139-05057-000
SUB: 09139B05057N000		 SCREW (5X12.8) 1 Rp6.500
17 58721-23F01-000
SUB: 58721B23F00N000		 LEVER, STARTER 1 Rp10.500
18 DISCONTINUE
SUB: 09164-07001-000		 WASHER 1 -
19 02112-7516A-000
SUB: 02112B7516AN000		 SCREW 1 Rp7.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
